Φ16mm Slotless BLDC

Ø16mm * L36mm, Ironless winding, Brushless design. For more detailed info on Slotless BLDC,
visit our products category pages - Slotless Brushless DC Motors
● High power density, 12W output power by Ø16*L36 size.
● Wide running range, max speed up to 40,000 rpm.
● Up to 25% smaller speed/torque gradient improve.
● 30% lower temperature rising than current product.
Quote a Standard/Specialty/Customized Motor
  • Features
  • Data Sheet
  • Dimension

    High Power Density

    Comparing with same size but different type motors, BLDC slotless has more power density than others. With 7.24cm3 volume, ECU16 motor can deliver near 12W power.

    Wide Operating Range

    We extend the operating range of motors by optimized electromagnetic and mechanical design.

    Smaller Speed/Torque Gradient

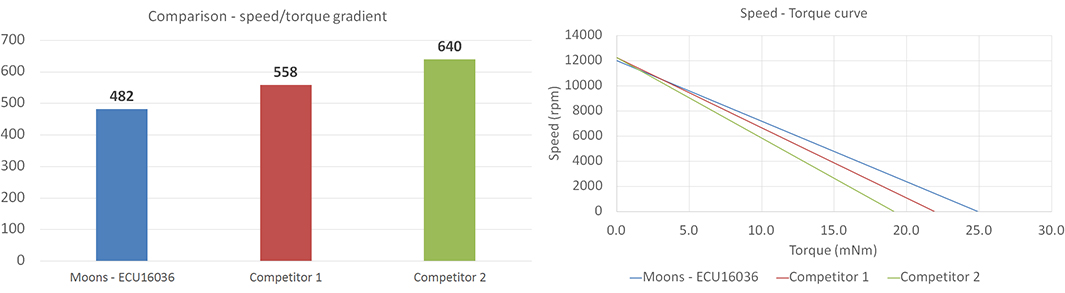

    Smaller speed/torque gradient means more powerful motor, comparing with competitor, MOONS' ECU16 motors have 15% - 25% improvement .

    Performance Advantage

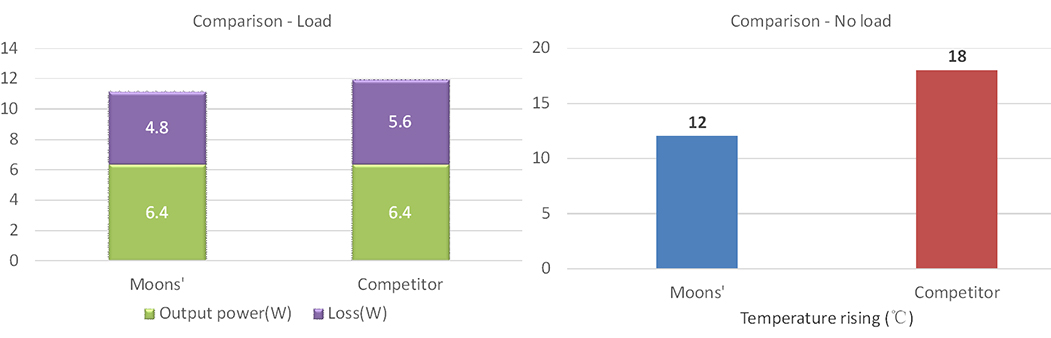

    For same output power, MOONS' have less loss than competitor, At the no load condition, MOONS' have 33% lower temperature rising than competitor.

    Preliminary Version

    Motor Data Part Numbers
    Parameter Unit ECU16036H09 ECU16036H12 ECU16036H18 ECU16036H24 ECU16036H36
    Nominal voltage V 9 12 18 24 36
    No load speed rpm 17200 16000 17200 16200 17200
    No load current mA 173 113 96 64 50
    Rated speed rpm 12865 11766 13073 12046 13146
    Rated torque mNm 8.03 8.29 8.30 8.18 8.41
    Rated current A 1.88 1.28 0.97 0.62 0.49
    Stall torque mNm 29.0 27.4 31.6 26.5 29.0
    Stall current A 7.20 4.50 3.82 2.09 1.74
    Max efficiency % 79 80 80 80 80
    Terminal resistance (phase-phase) Ohm 1.25 2.70 4.70 11.50 18.40
    Terminal inductance (phase-phase) mH 0.032 0.079 0.130 0.310 0.550
    Torque constant mNm / A 4.7 7.1 9.5 14.7 19.1
    Speed constant rpm / V 2030 1340 1000 650 500
    Speed/torque gradient rpm / mNm 540 511 497 508 482
    Mechanical time constant ms 5.75 5.51 5.18 5.36 4.95

    Specification

    Parameter Unit Value
    Max speed rpm 40000
    Rotor inertia gcm2 0.7
    Number of pole pairs   1
    Ambient temperature °C -40~+100
    Max winding temperature °C 155
    Thermal resistance
    Housing - Ambient °C / W 18
    Winding - Housing °C / W 1.5
    Thermal time constant
    Motor s 430
    Winding s 1
    Max axial load N 1
    Max radial load N 6
    Weight g 52

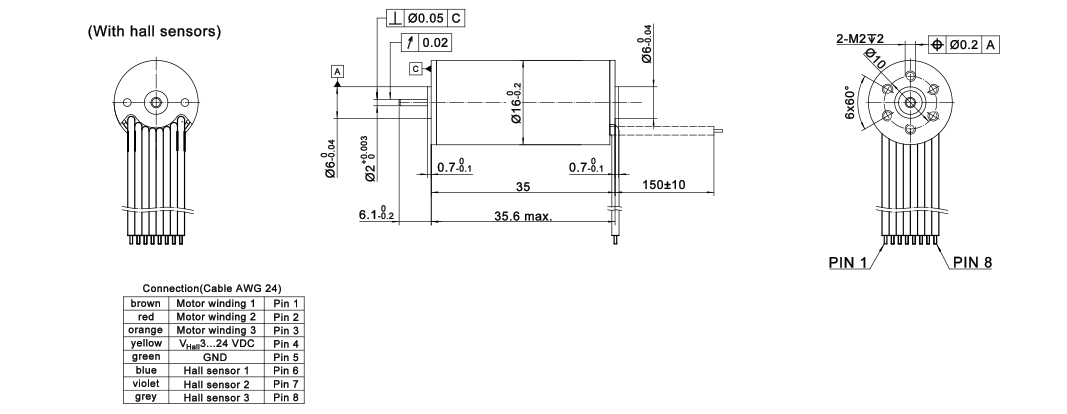

    Mechanical Dimensions:mm
