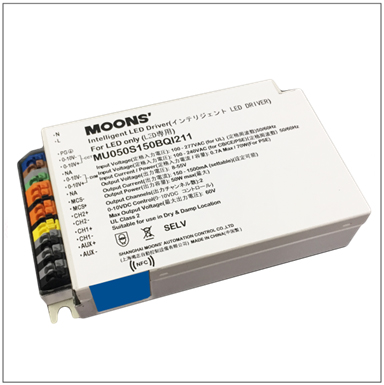

0-10V Dual Dimming Driver

The smoothest flicker-free high-performance dimming to dark for every fixture.Output constant current level can be adjusted by applying 0-10V dimmer, different form factors are available for the perfect fit with your luminaire. ● Input voltage: 100-277Vac,140-388Vdc
● All-Around Protection: OVP, SCP, OTP
● Built-in active PFC function 0.95 Typ.
● Flicker-Free Dimming Across Wide Dimming Range.
● Constant current,2 channels output, 12V-150mA auxiliary power supply
● 4 in 1:Tunable white(1500-6500K).Dim to warm(1500-3200K),Solo dimming, Dual dimming
● 5-year Warranty
Learn More About 0-10V Dual Dimming Driver
  • Features
  • Dimension
    0-10V dual channel intelligent driver is ideal for stage, landscape, architecture, agriculture lighting applications. Different form factors are available for the perfect fit with luminaire. This series operates from 90~305VAC and offer various dimming functions that could be configured by MOONS' patented programmer: Smartkey or Touch Setting Tool.

    Features

    • 1. Tunable White

      Change fixture’s color temperature and intensity via two 0-10V dimming signal respectively.
    • 2. Dim to Warm

      Dimming like incandescent light bulb, change fixture’s color temperature when dimmed via one 0-10V dimming signal. signal.
    • 3. Solo Dimming

      Dim two channels on the driver via one 0-10V dimming signal simultaneously.
    • 4. Dual Dimming

      Dim two channels on the driver via two 0-10V dimming signals respectively.
    1. Tunable White
    2. Dim to Warm · Just one 0-10V dimmer can be used to control fixture’s color temperature and intensity.
    · Dimming like incandescent light bulb, change a luminaire’s color temperature when dimmed.
    · The higher intensity the higher color temperature. The lower intensity the lower color temperature.
    3. Solo Dimming · Set the output current value of Ch1 and Ch2. (Ch1= Ch2, Ch1≠ Ch2)
    · Dim two channels on the driver via one 0-10V dimming signal simultaneously.
    4. Dual Dimming · Set the output current value of Ch1 and Ch2. (Ch1= Ch2, Ch1≠ Ch2)
    · Dim two channels on the driver via two 0-10V dimming signals respectively.

    Model List

    Programmable Function

    1. NFC Programming 2. Cable programming

    Programmable Function

    Wirings on right side

    Slim

    Wirings on both side

    Back feed

    Wirings on bottom side

    Side feed

    Wirings on bottom side
