General Driver

90~305VAC, Constant Current Programmable Driver 176~305VAC, Constant Current Programmable Driver ● Input Voltage: 90~305VAC/176~305VAC
● High Efficiency (Up to 90% typ.)
● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,UL,CE
● Flicker-Free Dimming Across Wide Dimming Range
● 0-10V/PWM/Clock Dimming/Constant Current
● High Surge Immunity: L-N:±10KV,L/N-FG:±10KV
● 5-year Warranty
Learn More about General Driver

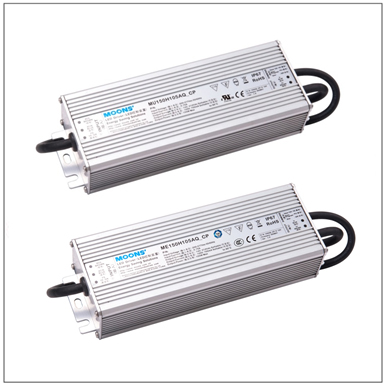

Universal Input Voltage Series LED drivers are suitable with wide input rating voltage for global market. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. the MUxxxAQ_CP Series is a constant-current, programmable outdoor LED driver run with excellent power factor. Narrow Input Voltage Series LED drivers are suitable with input rating voltage for European and Chinese market. Ideal for higher lumen applications, the MExxxAQ_CP Series is a constant-current, programmable outdoor LED driver that operate from 176~305 VAC input with excellent power factor.

Product List

Production I_out(mA) V_out(V) Certificate
75-Watts Surge: L-N: 10KV, L/N-FG: 10KV
MU075M105AQ_CP 70-1050 43-108 UL,CE
MU075M150AQ_CP 100-1500 30-75
MU075M210AQ_CP 140-2100 22-54
100-Watts Surge: L-N: 10KV, L/N-FG: 10KV
MU100M080AQ_CP 53-800 75-189 UL,CE
MU100M105AQ_CP 70-1050 57-143
MU100M210AQ_CP 140-2100 29-71
MU100M320AQ_CP 200-3200 19-50
MU100M480AQ_CP 300-4800 13-33
150-Watts Surge: L-N: 10KV, L/N-FG: 10KV
MU150H105AQ_CP 70-1050 86-214 UL,CE
MU150H150AQ_CP 100-1500 60-150
MU150H210AQ_CP 140-2100 43-107
MU150H300AQ_CP 200-3000 30-75
MU150H420AQ_CP 280-4200 21-54
MU150H600AQ_CP 400-6000 15-38
240-Watts Surge: L-N: 4KV, L/N-FG: 6KV
MU240H600AQ_CP 400-6000 24-60 UL,CE,CCC
MU240H800AQ_CP 600-8000 16-40
MU240H1200AQ_CP 1000-12000 12-24
320-Watts Surge: L-N: 4KV, L/N-FG: 6KV
MU320H105AQ_CP 70-1050 183-457 UL,CE,CCC
MU320H150AQ_CP 100-1500 128-320
MU320H210AQ_CP 140-2100 91-228
MU320H800AQ_CP 600-8000 24-53.5
View More
Production I_out(mA) V_out(V) Certificate
75-Watts Surge: L-N: 10KV, L/N-FG: 10KV
ME075M105AQ_CP 70-1050 43-108 UL,CE
ME075M150AQ_CP 100-1500 30-75
ME075M210AQ_CP 140-2100 22-54
100-Watts Surge: L-N: 10KV, L/N-FG: 10KV
ME100M105AQ_CP 70-1050 57-143 UL,CE
ME100M150AQ_CP 100-1500 40-100
ME100M210AQ_CP 140-2100 29-71
ME100M320AQ_CP 200-3200 19-50
150-Watts Surge: L-N: 10KV, L/N-FG: 10KV
ME150H105AQ_CP 70-1050 86-214 UL,CE
ME150H150AQ_CP 100-1500 60-150
ME150H210AQ_CP 140-2100 43-107
ME150H300AQ_CP 200-3200 30-75
ME150H420AQ_CP 280-4200 21-54
ME150H600AQ_CP 400-6000 15-38
200-Watts L-N:±10KV,L/N-FG:±10KV
ME200H105AQ_CP 70-1050 114-286 ENEC,CCC
ME200H210AQ_CP 140-2100 57-143
ME200H600AQ_CP 400-6000 20-50
250-Watts L-N:±10KV,L/N-FG:±10KV
ME150H105AQ_CP 70-1050 143-357 UL,CE,CCC
ME150H150AQ_CP 100-1500 100-250
View More

Application

The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Different form factors are available for the perfect fit with your luminaire.

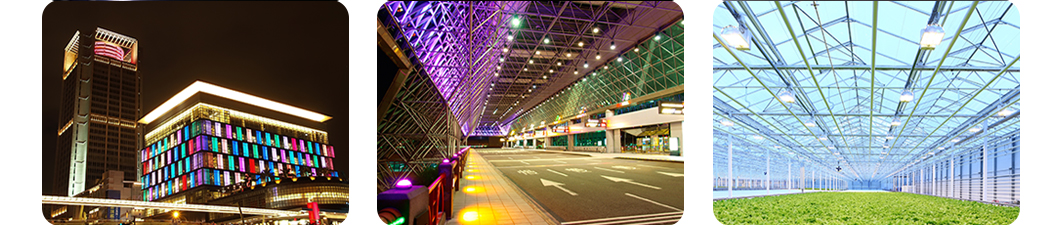

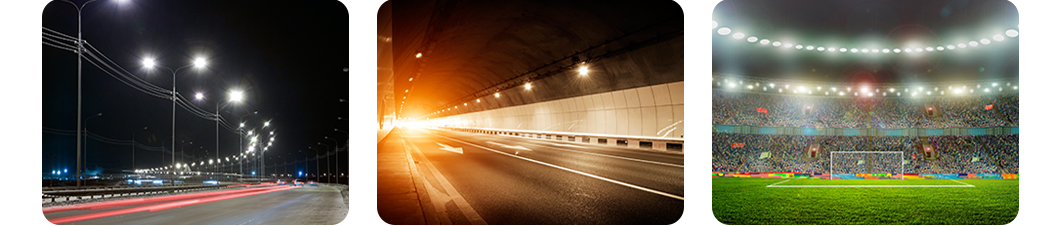

Street LightingTunnel LightingArea Lighting
Architecture LightingHigh-Bay LightingHorticulture Lighting
