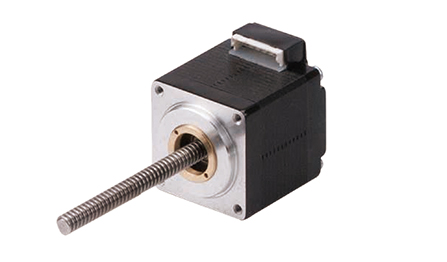

NEAM11 Hybrid Linear Stepper Motors

NEMA11, Linear stepper motors actuator, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.
● Small linear actuator solutions
● High performance and exceptional endurance
● Quick delivery in 48 Hours
● Multiple leadscrews and nuts can be selected
● Constant Force Technology
Brand Name: MOONS'
Price: USD  130.0  -  140.0  EA

Free shipping to North America and Europe for orders of $100 or more

Payment Methods

Certificates:
Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

MOONS’ linear stepper motor actuators are designed based on the know-how technology of hybrid step motors , leadscrews and nuts. The LSM Series linear stepper motors provide high torque, high precision, and high efficiency to fit the application needs of designers. He combination of lead screw motor styles, sizes, leadscrews and nuts, gives the freedom to use motors of different form factors to exactly fit in the application. And, it provides the best performance with any drive and power supply.

Specification

Phases 2
Step Accuracy ±5%
IP Rating 40
Approvals RoHS
Operating Temp. -20℃~+50℃
Insulation Class B(130℃)
Insulation Resistance 100MegOhms

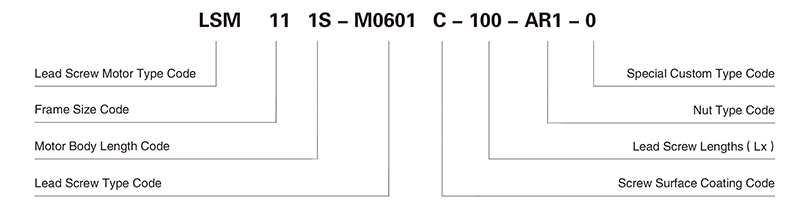

Model Numbering System

Standard Model

Model
Number
Motor
Length
Torque
Curves
Rated
Current
Winding
Resistance
Screw
Length
Screw
Diameter
Screw
Lead
Linear
Travel per Step
Rated
Thrust
mm Amps Ohms mm mm mm mm N
LSM111S-T6503-102-AR1-0 32 1 2.7 102 6.5 3 0.015 33

Options For Quote

Get the exact stepper motor linear actuator that you need to solve your motion control problem. It’s easy as 1-2-3: Chose your motor, choose your screw, choose your nut.

1.Choose Your Motor

Select motor Motor
Number(mm)
Motor Body
Length(mm)
Current
(Amp/Phase)
Resistance
(Ohm/phase)
Inductance
(mH/Phase)
Step Angle(°)
  • LSM111S
    32
    1
    2.7
    2.5
    1.8
  • LSM113S
    41
    0.95
    3.8
    3.5
    1.8
  • LSM115S
    52
    0.7
    6.7
    6.8
    1.8

    Not seeing exactly what you need?

    We can customize your motor to meet your precise speed, torque and current requirements. Using the form below (last step), tell us about your application needs and one of our specialists will match you with a motor that will meet your requirements precisely.

    2.Select Leadscrew

    Select Leadscrew Code SCREW O.D.
    DIMENSION (mm))
    Lead(mm)

    Travel Per 1.8°Step(mm)

    in mm in mm in mm
  • M0601
    0.236
    6
    0.039
    1
    0.0002
    0.005
  • M0602
    0.236
    6
    0.079
    2
    0.0004
    0.010
  • M0605
    0.236
    6
    0.197
    5
    0.0010
    0.025
  • M0610
    0.236
    6
    0.394
    10
    0.0020
    0.050
  • M0612
    0.236
    6
    0.472
    12
    0.0024
    0.060
  • T6503
    0.26
    6.5
    0.118
    3
    0.0005
    0.015
  • E04006
    0.187
    4.76
    0.025
    0.635
    0.000125
    0.003175
  • E04025
    0.187
    4.76
    0.1
    2.54
    0.0005
    0.0127
  • E05006
    0.218
    5.54
    0.024
    0.6096
    0.00012
    0.003048
  • E05012
    0.218
    5.54
    0.048
    1.2192
    0.00024
    0.006096
  • E05048
    0.218
    5.54
    0.192
    4.8768
    0.00096
    0.024384
  • E06063
    0.25
    6.35
    0.25
    6.35
    0.00125
    0.03175
  • E06127
    0.25
    6.35
    0.5
    12.7
    0.0025
    0.0635
  • Enter Desired Leadscrew Length (in millimeters):

    10mm< < 400mm
  • Leadscrew Coating Options:

  • End Machining Options:

  • 3.Choose Your Nut

    Select either Constant ForceTM Anti-Backlash Nut or a standard nut option:
    Constant ForceTM Anti-Backlash Nut An intuitive leap forward in nut design for lead screw applications,Constant Force Technology utilizes a constant force spring to apply a uniform pressure to the nut at all stages of the motion profile.

    ● Greater consistency and resistance to backlash
    ● Configurable for various torque requirements
    ● Patent pending self-adjusting anti-backlash feature
    ● Polymer nuts are self-lubricating and maintenance free

    Anti-Backlash Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE NUT THREAD DIAMETER (mm) NUT OD (mm) NUT LENGTH (mm)
  • BR0 Anti-Backlash Round 4.76 8 10
  • BR1 Anti-Backlash Round 5.54-6.5 10 19
  • BT0 Anti-Backlash Triangular 4.76 8 10
  • BT1 Anti-Backlash Triangular 5.54-6.5 10 19

    Standard Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE NUT THREAD DIAMETER (mm) NUT OD (mm) NUT LENGTH (mm)
  • AR0 Free-running Round 4.76 8 10
  • AR1 Free-running Round 5.54-6.5 10 19
  • AT0 Free-running Triangular 4.76 8 10
  • AT1 Triangular Triangular 5.54-6.5 10 19

    Selected Part Number Is

    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • 0

    Please confirm you have selected the motor, the leadscrew and the nut.

    Request For Quote

    Compare Item Price
    (USD)
    Buy Now
    LSM111S-T6503-102-AR1-0 $134.25
    LE111S-T6503-50-AR1-S-050 $130.00
    LE111S-E06063-50-AR1-S-050 $130.00
    LE111S-T6503-50-AR1-S-100 $130.00
    LE111S-W0601-100-AR1-S-100 $132.00
    LE111S-E06127-100-AR1-S-050 $132.00
    LE111S-E06127-50-AR1-S-050 $130.00
    LE111S-E06127-100-AR1-S-100 $132.00
    LE111S-E06063-100-AR1-S-100 $132.00
    LE111S-E06063-50-AR1-S-100 $130.00
    LE111S-W0601-50-AR1-S-050 $130.00
    LE111S-W0601-150-AR1-S-050 $134.00
    LE111S-W0601-100-AR1-S-050 $132.00
    LE111S-E06063-100-AR1-S-050 $132.00
    LE111S-T6503-100-AR1-S-100 $132.00
    LE111S-T6503-100-AR1-S-050 $132.00
    LE111S-E06127-50-AR1-S-100 $130.00
    LE111S-W0601-50-AR1-S-100 $130.00
    LE111S-E06063-150-AR1-S-100 $134.00
    LE111S-W0601-200-AR1-S-100 $136.00
    LE111S-E06063-200-AR1-S-100 $136.00
    LE111S-T6503-200-AR1-S-100 $136.00
    LE111S-W0601-200-AR1-S-050 $136.00
    LE115S-T6503-150-AR1-S-100 $138.00
    LE115S-E06063-200-AR1-S-100 $140.00
    LE115S-T6503-200-AR1-S-100 $140.00
    LE115S-W0601-200-AR1-S-100 $140.00
    LE115S-E06127-150-AR1-S-100 $138.00
    LE115S-T6503-50-AR1-S-100 $134.00
    LE111S-E06063-150-AR1-S-050 $134.00
    LE111S-T6503-150-AR1-S-050 $134.00
    LE111S-T6503-150-AR1-S-100 $134.00
    LE111S-E06127-200-AR1-S-050 $136.00
    LE111S-E06127-200-AR1-S-100 $136.00
    LE111S-E06063-200-AR1-S-050 $136.00
    LE111S-T6503-200-AR1-S-050 $136.00
    LE115S-E06127-200-AR1-S-100 $140.00
    LE115S-E06063-50-AR1-S-100 $134.00
    LE115S-E06063-150-AR1-S-100 $138.00
    LE115S-E06127-100-AR1-S-100 $136.00
    LE115S-E06127-50-AR1-S-100 $134.00
    LE115S-E06063-100-AR1-S-100 $136.00
    LE115S-T6503-100-AR1-S-100 $136.00
    LE115S-W0601-100-AR1-S-100 $136.00
    LE111S-W0601-150-AR1-S-100 $134.00
    LE115S-W0601-50-AR1-S-100 $134.00
    LE115S-W0601-150-AR1-S-100 $138.00
    LE111S-E06127-150-AR1-S-050 $134.00
    LE111S-E06127-150-AR1-S-100 $134.00
