Based on the rich experience of TSM integrated step-servo, MOONS' once again successfully melt servo control technology into a stepper motor, revolutionary create a separate motor & driver package solution – SS with ultimate performance. Motor frame sizes available is Nema17. SS provides more intelligent combination of flexible, contribute to a more wider range of applications.
● Multi-axis field bus control ● Intelligent built-in controller ● Compact all-in-one solution ● Efficient, smooth, accurate, fast ● Enhanced motor, optimized design
Brand Name: MOONS'
454.0 - 665.0
* Free shipping to North America and most of Europe for orders of $100 or more
Free Exchange if the item has quality problems within 1 year.Learn more

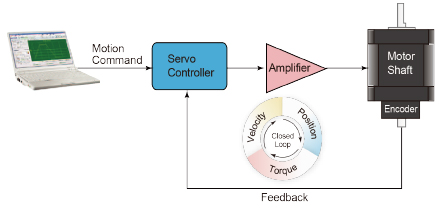

The Step Servo is an innovative revolution for the world of stepping motor, it enhances the stepping motor with servo technology to create a product with exceptional feature and broad capability.TSM is MOONS’ 3rd generation integrated step-servo and compact motor+drive+encoder+controller all-in-one solution. With improved technology, TSM upgrades significant key features based on 2nd generation SSM and operates more efficiently and intelligently.
▪ Very tight position and velocity control for the most demanding applications ▪ Robust servo loops that tolerate wide fluctuations in load inertia and frictional loading. ▪ The TSM17/23/24/34 achieve precise positioning to within ±1 count (0.018°) using a high resolution (20000 counts/rev) encoder. ▪ The TSM11 achieves precise positioning to within ±1 count (0.2°) using a high resolution (4096 counts/rev) encoder.
▪ Pre-defined tuning parameters for maximum control performance and stability. ▪ Easy selection list provides the level of control desired. ▪ In most cases NO extra manual tuning is required.
Lower Heating/High Efficiency
▪ Uses only the current required by the application, generating minimum heat output. ▪ When stand-still, current can reach nearly zero for extremely low heat output. ▪ Being able to use almost 100% of torque, allows for more efficient and compact motor usage.
Smooth & Accurate
▪ Space vector current control with 5000 line high resolution encoder, gives smooth and quiet operation, especially at low speeds. ------A feature never found with traditional stepper motors ▪ High stiffness due to the nature of the stepper motor combined with the highly responsive servo control ------Accurate position control both while running and static positioning
When performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.
▪ Because the TSM operates in full servo mode, all the available torque of the motor can be used. The motor can provide as much as 50% more torque in many applications. ▪ High torque capability often eliminates the need for gear reduction. ▪ Boost torque capability can provide as much as 50% more torque for short, quick moves.
Key Enhancements over the SSM Family (2nd Generation)

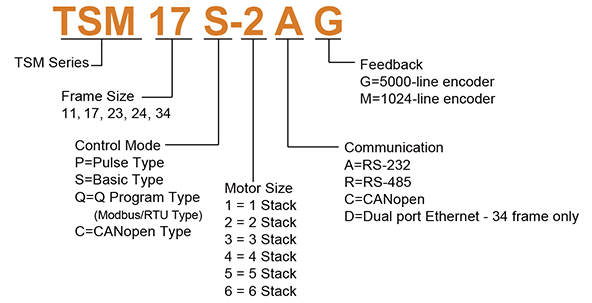

▪ Up to 8 digital inputs, 4 digital outputs and 1 analog input for S/Q/C types (TSM17/23/24/34 only) ▪ A/B/Z differential encoder signal output supported for P type (TSM17/23/24/34 only) ▪ Automatic load inertia detection ▪ On board daisy chain connection for field bus control (RS-485, Modbus/RTU, CANopen, TSM17/23/24/34 only) ▪ On board daisy chain over Ethernet on TSM34 only ▪ Multiple homing features for S/Q types ▪ Software limit for S/Q types ▪ Auxiliary power input for Keep Alive function (TSM34 only)
