NEMA 24 Integrated Step-Servo Motors

Based on the rich experience of TSM integrated step-servo, MOONS' once again successfully melt servo control technology into a stepper motor, revolutionary create a separate motor & driver package solution – SS with ultimate performance. Motor frame sizes available is Nema11. SS provides more intelligent combination of flexible, contribute to a more wider range of applications.
● Multi-axis field bus control
● Intelligent built-in controller
● Compact all-in-one solution
● Efficient, smooth, accurate, fast
● Enhanced motor, optimized design
Brand Name: MOONS'
Price: USD  607.0  -  673.0  EA

* Free shipping to North America and Europe for orders of $100 or more
* From Oct. 1 - Oct. 7, Online Orders Shipping will be postponed during Chinese National Day Holidays and resume on the first working day - Oct. 8, 2019. Thanks for your patience!

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more



■ Description

The Step Servo is an innovative revolution for the world of stepping motor, it enhances the stepping motor with servo technology to create a product with exceptional feature and broad capability.TSM is MOONS’ 3rd generation integrated step-servo and compact motor+drive+encoder+controller all-in-one solution. With improved technology, TSM upgrades significant key features based on 2nd generation SSM and operates more efficiently and intelligently.

■ Features

Closed Loop
▪ Very tight position and velocity control for the most demanding applications
▪ Robust servo loops that tolerate wide fluctuations in load inertia and frictional loading.
▪ The TSM17/23/24/34 achieve precise positioning to within ±1 count (0.018°) using a high resolution (20000 counts/rev) encoder.
▪ The TSM11 achieves precise positioning to within ±1 count (0.2°) using a high resolution (4096 counts/rev) encoder.

Easy Tuning
▪ Pre-defined tuning parameters for maximum control performance and stability.
▪ Easy selection list provides the level of control desired.
▪ In most cases NO extra manual tuning is required.

Lower Heating/High Efficiency
▪ Uses only the current required by the application, generating minimum heat output.
▪ When stand-still, current can reach nearly zero for extremely low heat output.
▪ Being able to use almost 100% of torque, allows for more efficient and compact motor usage.

Smooth & Accurate
▪ Space vector current control with 5000 line high resolution encoder, gives smooth and quiet operation, especially at low speeds.
------A feature never found with traditional stepper motors
▪ High stiffness due to the nature of the stepper motor combined with the highly responsive servo control
------Accurate position control both while running and static positioning

Fast Response
When performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.


High Torque
▪ Because the TSM operates in full servo mode, all the available torque of the motor can be used. The motor can provide as much as 50% more torque in many applications.
▪ High torque capability often eliminates the need for gear reduction.
▪ Boost torque capability can provide as much as 50% more torque for short, quick moves.

Key Enhancements over the SSM Family (2nd Generation)
▪ Up to 8 digital inputs, 4 digital outputs and 1 analog input for S/Q/C types (TSM17/23/24/34 only)
▪ A/B/Z differential encoder signal output supported for P type (TSM17/23/24/34 only)
▪ Automatic load inertia detection
▪ On board daisy chain connection for field bus control (RS-485, Modbus/RTU, CANopen, TSM17/23/24/34 only)
▪ On board daisy chain over Ethernet on TSM34 only
▪ Multiple homing features for S/Q types
▪ Software limit for S/Q types
▪ Auxiliary power input for Keep Alive function (TSM34 only)

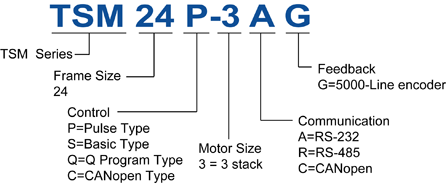

■ Model Numbering System

■ Ordering Information

Model Torque Control I/O(*) RS-232 RS-485/422 Modbus/RTU CANopen
TSM24P-3AG 2.5N·m P 4DI,3DO,EO
TSM24S-3AG S 8DI,4DO 1AI,EO
TSM24S-3RG
TSM24Q-3AG Q
TSM24Q-3RG
TSM24C-3CG C 8DI,4DO,1AI

Power Amplifier
Amplifier Type Dual H-Bridge, 4 Quadrant
Current Control 4 state PWM at 20 KHz
Output Torque TSM24C-3CG: Up to 2.4 N•m Continuous(3.0 N•m Boost)
TSM24S/Q-3□G: Up to 2.4N•m Continuous(3.0 N•m Boost)
TSM24P-3AG: Up to 2.4N•m Continuous(3.0 N•m Boost)
Power Supply External 12 - 70 VDC power supply required
Protection Over-voltage, under-voltage, over-temp, motor/wiring shorts (phase-to-phase, phase-toground)
Controller
Electronic Gearing Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
Encoder Resolution 20000 counts/rev
Speed Range Up to 3600rpm
Filters Digital input noise filter, Analog input noise filter, Smoothing filter, PID filter, Notch filter
Non-Volatile Storage Configurations are saved in FLASH memory on-board the DSP
Modes of Operation TSM24S: Step & direction, CW/CCW pulse, A/B quadrature pulse, velocity (oscillator, joystick), streaming commands(SCL)
TSM24Q: All TSM24S modes of operation plus stored Q program execution
TSM24P-3AG: Step & Direction, CW/CCW pulse, A/B quadrature pulse
Digital Inputs TSM24C-3CG:
Digital Inputs Adjustable bandwidth digital noise rejection filter on all inputs
X1/X2/X7/X8: Optically isolated, 5-24 volt differential or single-ended input, Minimum pulse width = 100 μs, Maximum pulse frequency = 5 KHz
Function: general purpose input, or CW/CCW Limit input
X3/X4X5/X6 : Optically isolated, 5-24 volt single-ended input, Minimum pulse width = 100 μs, Maximum pulse frequeny = 5 KHz
Function: Servo on/off, Alarm/Fault Reset, or general purpose input
TSM24S/Q-3□G:
Digital Inputs Adjustable bandwidth digital noise rejection filter on all inputs
X1/X2: Optically isolated, 5-24 volt. Minimum pulse width = 250 ns, Maximum pulse frequency = 2 MHz
Function: Pulse/Direction, CW/CCW Pulse, A/B quadrature (encoder following), (start/stop)/ direction (oscillator mode), or general purpose input
X3/X4 : Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequeny = 5 KHz
Function: Servo on/off, Alarm/Fault Reset, or general purpose input
X5/X6/X7/X8: Optically isolated, 5-24 volt. Minimum pulse width = 100 μs, Maximum pulse frequeny = 5 KHz
Function: CW/CCW Limit, Speed 1/Speed 2 (oscillator mode), or general purpose input
TSM24P-3AG:
X1/STEP+/- : Optically isolated, 5-24 volt. Minimum pulse width = 250 ns,Maximum pulse frequency = 2 MHz
Function: Step, CW step, A quadrature (encoder following)
X2/DIR+/- : Optically isolated, 5-24 volt. Minimum pulse width = 250 ns,Maximum pulse frequency = 2 MHz
Function: Direction, CCW step, B quadrature (encoder following)
X3/EN, X4/AR: Optically isolated, 5-24 volt.
Function: Enable, Alarm Reset or general purpose input.
Digital Outputs TSM24C-3CG:
Y1/Y2/Y3/Y4: Optically isolated, 30V/100mA max Open Collector Output.
Function: Alarm/Fault, In Position(dynamic/static), Brake Control, Tach out, Timing out, or general purpose usage
TSM24S/Q-3□G:
Y1/Y2/Y3/Y4: Optically isolated, 30V/100mA max Open Collector Output.
Function: Alarm/Fault, In Position(dynamic/static), Brake Control, Tach out, Timing out, or general purpose usage
TSM24P-3AG:
Y1, Y2, Y3: Optically isolated, 30V/100 mA max.
Function: Fault, In position, Brake, Tach, Timing or general purpose programmable
Encoder Output Standard Line driver outputs, including A+/A-/B+/B-/Z+/Z- are supported
Analog Input AIN referenced to GND. Range = 0 to 5 VDC. Resolution = 12 bits
Communication
Interface
TSM24C-3CG: CANopen & RS-232
TSM24S/Q-3□G: RS-232 or RS-485
TSM24P-3AG:RS-232
Physical
Ambilent Temperature 0 to 40°C (32 to 104°F) When mounted to a suitable heatsink
Humdity 90% Max., non-condensing
Mass TSM24C-3CG: 1580 g
TSM24S/Q-3□G: 1580 g
TSM24P-3AG: 1200 g
Rotor Inertia TSM24C-3CG: 900 g•cm2
TSM24S/Q-3□G: 900 g•cm2
TSM24P-3AG: 460 g•cm2

Compare Item Price
(USD)
Buy Now
TSM24S-3AG $629.00
TSM24C-3CG $673.00
TSM24P-3AG $607.00
TSM24Q-3AG $673.00
TSM24S-3RG $629.00
TSM24Q-3RG $673.00

■ Dimension (Units: mm)

Model “L” “M” Front Shaft Diameter*
TSM24□-3□G 129.5 58.5 10
* 8 mm diameter shaft available upon request
