NEMA 34 Integrated Step-Servo Motors-1
  • NEMA 34 Integrated Step-Servo Motors-1
    • NEMA 34 Integrated Step-Servo Motors-1

    • NEMA 34 Integrated Step-Servo Motors

    Based on the rich experience of TSM integrated step-servo, MOONS' once again successfully melt servo control technology into a stepper motor, revolutionary create a separate motor & driver package solution – SS with ultimate performance. Motor frame sizes available is Nema11. SS provides more intelligent combination of flexible, contribute to a more wider range of applications.
    ● Multi-axis field bus control
    ● Intelligent built-in controller
    ● Compact all-in-one solution
    ● Efficient, smooth, accurate, fast
    ● Enhanced motor, optimized design
    Brand Name: MOONS'
    Price: USD  651.0  -  1006.0  EA

    Free shipping to North America and Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Model Numbering System
  • Order Information

    • Description

    The Step Servo is an innovative revolution for the world of stepping motor, it enhances the stepping motor with servo technology to create a product with exceptional feature and broad capability.TSM is MOONS’ 3rd generation integrated step-servo and compact motor+drive+encoder+controller all-in-one solution. With improved technology, TSM upgrades significant key features based on 2nd generation SSM and operates more efficiently and intelligently.

    Features

    Closed Loop·Very tight position and velocity control for the most demanding applications
    ·Robust servo loops that tolerate wide fluctuations in load inertia and frictional loading.
    ·The TSM17/23/24/34 achieve precise positioning to within ±1 count (0.018°) using a high resolution (20000 counts/rev) encoder
    ·The TSM11 achieves precise positioning to within ±1 count (0.2°) using a high resolution (4096 counts/rev) encoder.
    Easy Tuning ·Pre-defined tuning parameters for maximum control performance and stability.
    ·Easy selection list provides the level of control desired.
    ·In most cases NO extra manual tuning is required.
    Lower Heating/High Efficiency·Uses only the current required by the application, generating minimum heat output.
    ·When stand-still, current can reach nearly zero for extremely low heat output.
    ·Being able to use almost 100% of torque, allows for more efficient and compact motor usage.
    Smooth & Accurate·Space vector current control with 5000 line high resolution encoder, gives smooth and quiet operation, especially at low speeds.
    ------A feature never found with traditional stepper motors
    ·High stiffness due to the nature of the stepper motor combined with the highly responsive servo control
    ------Accurate position control both while running and static positioning
    Fast ResponseWhen performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.
    High Torque·Because the SSM operates in full servo mode, all the available torque of the motor can be used. The motor can provide as much as 50% more torque in many applications. High torque capability often eliminates the need for gear reduction.
    ·Boost torque capability can provide as much as 50% more torque for short, quick moves.
    Motion Monitoring·For difficult control situations where performing a precise move is necessary, the Step-Setvo Quick Tuner provide an easy to use interface for performing and monitoring the motion profile
    ·Many common parameters such as Actual Speed or Position Error can be monitored to evaluate system performance
    ·The monitoring is interactive with the servo tuning capability so that optimum performance can be achieved.
    Key Enhancement based on SSM family·Up to 8 digital inputs, 4 digital outputs and 1 analog input for S/Q/C types ( TSM17/23/24/34 only )
    ·A/B/Z differential encoder signal output supported for P type ( TSM17/23/24/34 only )
    ·Automatic load inertia detection
    ·On board daisy chain connection for field bus control (RS-485, Modbus/RTU, CANopen, TSM17/23/24/34 only)
    ·On board daisy chain over Ethernet  ( TSM34 only )
    ·Multiple homing features for S/Q types
    ·Software limit for S/Q types
    ·Auxiliary power input for Keep Alive function (TSM34 only)

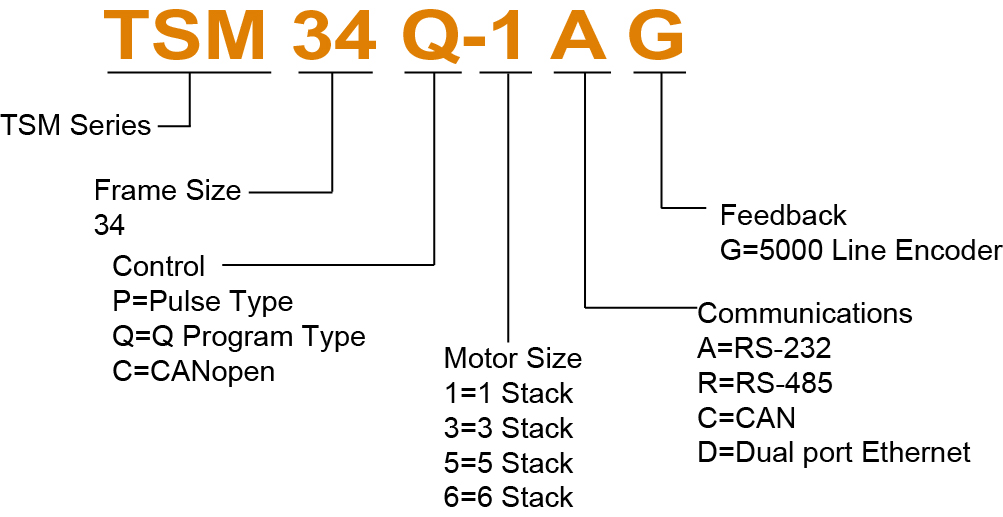

    Model Numbering System

    Ordering Information

    Model Torque Control I/O(*) RS-232 RS-485/422 Modbus/RTU CANopen Ethernet
    TSM34P-1AG 2.9N.m P 4DI,3DO,EO √
    TSM34Q-1AG Q 8DI,4DO,1AI,EO √   √
    TSM34Q-1RG   √ √
    TSM34Q-1DG         √
    TSM34C-1CG C √     √
    TSM34P-3AG 5.6N.m P 4DI,3DO,EO √
    TSM34Q-3AG Q 8DI,4DO,1AI,EO √   √
    TSM34Q-3RG   √ √
    TSM34Q-3DG         √
    TSM34C-3CG C √     √
    TSM34P-5AG 7.2N.m P 4DI,3DO,EO √
    TSM34Q-5AG Q 8DI,4DO,1AI,EO √   √
    TSM34Q-5RG   √ √
    TSM34Q-5DG         √
    TSM34C-5CG C √     √
    TSM34P-6AG 9.5N.m P 4DI,3DO,EO √
    TSM34Q-6AG Q 8DI,4DO,1AI,EO √   √
    TSM34Q-6RG   √ √
    TSM34Q-6DG         √
    TSM34C-6CG C √     √
    * DI: Digital Input; DO: Digital Output; EO: Encoder Output; AI: Analog Input

    Data Sheet

    TSM 34P

    Power Amplifier
    Amplifier Type Dual H-Bridge, 4 Quadrant
    Current Control 4 state PWM at 20 KHz
    Output Torque TSM34P-1AG: Up to 2.7N•m Continuous(2.9 N•m Boost)
    TSM34P-3AG: Up to 5.2N•m Continuous(5.6 N•m Boost)
    TSM34P-5AG: Up to 6.7N•m Continuous(7.2 N•m Boost)
    TSM34P-6AG: Up to 8.2N•m Continuous(9.5 N•m Boost)
    Power Supply External 24-70VDC main power supply, 12-48VDC auxiliary power supply
    Protection Over-voltage, under-voltage, over-temp, motor/wiring shorts (phase-to-phase,
    phase-to-ground)
    Controller
    Electronic Gearing Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
    Encoder Resolution 20000 counts/rev
    Speed Range Up to 3600 rpm
    Filters Digital input noise filter, Smoothing filter, PID filter, Notch filter
    Non-Volatile Storage Configurations are saved in FLASH memory on-board the DSP
    Modes of Operation TSM34P: Step & Direction, CW/CCW pulse, A/B quadrature pulse
    Digital Inputs X1/STEP+/-: Optically isolated, 5-24 volt; minimum pulse width = 250 ns; maximum pulse frequency = 2MHz
    Functions: Step, CW step, A quadrature (encoder following)
    X2/DIR+/-: Optically isolated, 5-24 volt; minimum pulse width = 250 ns; maximum pulse frequency = 2MHz
    Functions: Direction, CCW step, B quadrature (encoder following)
    X3/EN, X4/AR: Optically isolated, 5-24 volt
    Functions: Enable, Alarm reset or general purpose input
    Digital Outputs Y1/Y2/Y3: Optically isolated, 30V/100 mA max
    Functions: Fault, In position, Brake, Tach, Timing or general purpose programmable
    Encoder Output Standard Line driver outputs: A+/-, B+/-, Z+/-; 26C31 line driver, 20 mA sink or
    source max
    Communication Interface RS-232
    Physical
    Ambient Temperature 0 to 40°C (32 -104°F) when mounted to a suitable heatsink
    Humidity 90% max, non-condensing
    Mass TSM34P-1AG: 2100 g
    TSM34P-3AG: 3200 g
    TSM34P-5AG: 4300 g
    TSM34P-6AG: 5500 g
    Rotor Inertia TSM34P-1AG: 915 g•cm2
    TSM34P-3AG: 1480 g•cm2
    TSM34P-5AG: 2200 g•cm2
    TSM34P-6AG: 3660 g•cm2
    Back To Top

    TSM 34Q/C

    Power Amplifier
    Amplifier Type Dual H-Bridge, 4 Quadrant
    Current Control 4 state PWM at 20 KHz
    Output Torque TSM34□-1□G: Up to 2.7N•m Continuous(2.9 N•m Boost)
    TSM34□-3□G: Up to 5.2N•m Continuous(5.6 N•m Boost)
    TSM34□-5□G: Up to 6.7N•m Continuous(7.2 N•m Boost)
    TSM34□-6□G: Up to 8.2N•m Continuous(9.5 N•m Boost)
    Power Supply External 24 - 70 VDC main power supply, 12-48 VDC auxiliary power supply
    Protection Over-voltage, under-voltage, over-temp, motor/wiring shorts (phase-to-phase, phase-to-ground)
    Controller
    Electronic Gearing Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
    Encoder Resolution 20000 counts/rev
    Speed Range Up to 3600rpm
    Filters Digital input noise filter, Analog input noise filter, Smoothing filter, PID filter, Notch filter
    Non-Volatile
    Storage    		 Configurations are saved in FLASH memory on-board the DSP
    Modes of Operation TSM34Q: Step & direction, CW/CCW pulse, A/B quadrature pulse, velocity (oscillator, joystick), streaming commands (SCL or eSCL), Q program execution
    TSM34C: CANopen control with stored Q program execution
    Digital Inputs Adjustable bandwidth digital noise rejection filter on all inputs
    X1/X2: Optically isolated, 5-24 volt, min. pulse width = 250 ns, max. pulse frequency = 2 MHz
    Function: Pulse/Direction, CW/CCW Pulse, A/B quadrature (encoder following), (start/stop)/direction (oscillator mode), or general purpose input
    X3/X4: Optically isolated, 5-24 volt, min. pulse width = 100 μs, max. pulse frequency = 5 KHz
    Function: Servo on/off, Alarm/Fault Reset, or general purpose input
    X5/X6/X7/X8: Optically isolated, 5-24 volt. Min. pulse width = 100 μs, Max. pulse frequency = 5 KHz
    Function: CW/CCW Limit, Speed 1/Speed 2 (oscillator mode), or general purpose input
    Digital Outputs Y1/Y2/Y3/Y4: Optically isolated, 30V/100mA max Open Collector Output.
    Function: Alarm/Fault, In Position (dynamic/static), Brake Control, Tach out, Timing out, or general purpose usage
    Encoder Output Standard Line driver outputs: A+/-, B+/-, Z+/-; 26C31 line driver, 20 mA sink or source max
    Analog Input AIN referenced to GND. Range = 0 to 5 VDC. Resolution = 12 bits
    Communication Interface RS-232 , RS-485, CANopen, Ethernet
    Physical
    Ambient
    Temperature    		 0 to 40°C (32 to 104°F) when mounted to a suitable heatsink
    Humidity 90% Max., non-condensing
    Mass TSM34Q/C-1□G: 2100 g
    TSM34Q/C-3□G: 3200 g
    TSM34Q/C-5□G: 4300 g
    TSM34Q/C-6□G: 5500 g
    Rotor Inertia TSM34Q/C-1□G: 915 g•cm2
    TSM34Q/C-3□G: 1480 g•cm2
    TSM34Q/C-5□G: 2200 g•cm2
    TSM34Q/C-6□G: 3660 g•cm2
    Back To Top

    Compare Item Price
    (USD)    		 Buy Now
    TSM34P-1AG $651.00
    TSM34P-3AG $694.00
    TSM34P-5AG $738.00
    TSM34P-6AG $781.00
    TSM34Q-1AG $661.00
    TSM34Q-3AG $732.00
    TSM34Q-5AG $823.00
    TSM34Q-6AG $925.00
    TSM34Q-1RG $682.00
    TSM34Q-3RG $752.00
    TSM34Q-5RG $844.00
    TSM34Q-6RG $946.00
    TSM34Q-1DG $743.00
    TSM34Q-3DG $814.00
    TSM34Q-5DG $905.00
    TSM34Q-6DG $1,006.00
    TSM34C-1CG $702.00
    TSM34C-3CG $773.00
    TSM34C-5CG $864.00
    TSM34C-6CG $966.00
       Torque Speed Curves

    Dimension

    ■ Dimensions(Unit:mm)

    Model “L” Shaft*
    TSM34□-1□G 112.5 14
    TSM34□-3□G 143 14
    TSM34□-5□G 172.5 14
    TSM34□-6□G 203 14
    Back To Top
