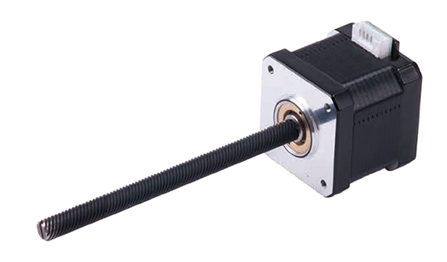

NEMA14 Hybrid Linear Stepper Motors

NEMA14, Linear stepper motors actuator, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.
● Small linear actuator solutions
● High performance and exceptional endurance
● Quick delivery in 48 Hours
● Multiple screws and nuts can be selected
● Constant Force Technology
Brand Name: MOONS'
Price: USD  122.6  EA

Free shipping to North America and Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

MOONS’ linear stepper motor actuators are designed based on the know-how technology of hybrid step motors , lead screw and nuts.The LSM Series linear stepper motors provide high torque,high precision, and high efficiency to fit the application needs of designers. He combination of lead screw motor styles, sizes, leadscrews and nuts, gives the freedom to use motors of different form factors to exactly fit in the application. And, it provides the best performance with any drive and power supply.

Specification

Phases 2
Step Accuracy ±5%
IP Rating 40
Approvals RoHS
Operating Temp. -20℃~+50℃
Insulation Class B(130℃)
Insulation Resistance 100MegOhms

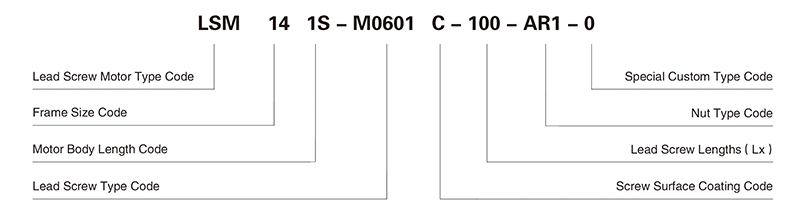

Model Numbering System

Standard Model

Model
Number
Motor
Length
Torque
Curves
Rated
Current
Winding
Resistance
Screw
Length
Screw
Diameter
Screw
Lead
Linear
Travel per Step
Rated
Thrust
mm Amps Ohms mm mm mm mm N
LSM143S-T6503-102-AR1-0 36 2 1.61 102 6.7 3 0.015 85

Options For Quote

Get the exact stepper motor linear actuator that you need to solve your motion control problem. It’s easy as 1-2-3: Chose your motor, choose your leadscrew, choose your nut.

1.Choose Your Motor

Select motor Motor
Number(mm)
Motor Body
Length(mm)
Current
(Amp/Phase)
Resistance
(Ohm/phase)
Inductance
(mH/Phase)
Step Angle(°)
  • LSM141A
    28
    0.6
    10.6
    12.6
    0.9
  • LSM141S
    28
    1.5
    1.55
    1.53
    1.8
  • LSM143S
    36
    1.5
    1.61
    2.5
    1.8

    Not seeing exactly what you need?

    We can customize your motor to meet your precise speed, torque, and current requirements. Using the form below (last step), tell us about your application needs and one of our specialists will match you with a motor that will meet your requirements precisely.

    2.Select Leadscrew

    Select Leadscrew Code SCREW O.D.
    DIMENSION (mm)
    Lead(mm)

    Travel Per 1.8°Step(mm)

    TRAVEL PER 0.9° STEP(mm)
    in mm in mm in mm in mm
  • M0601
    0.236
    6
    0.039
    1
    0.0002
    0.005
    0.0001
    0.0025
  • M0602
    0.236
    6
    0.079
    2
    0.0004
    0.010
    0.0002
    0.005
  • M0605
    0.236
    6
    0.197
    5
    0.0010
    0.025
    0.0005
    0.0125
  • M0610
    0.236
    6
    0.394
    10
    0.0020
    0.050
    0.0010
    0.025
  • M0612
    0.236
    6
    0.472
    12
    0.0024
    0.060
    0.0012
    0.030
  • E05006
    0.218
    5.54
    0.024
    0.6096
    0.0001
    0.003048
    0.00005
    0.001524
  • E05012
    0.218
    5.54
    0.048
    1.2192
    0.0002
    0.006096
    0.0001
    0.003048
  • E05048
    0.218
    5.54
    0.192
    4.8768
    0.0009
    0.024384
    0.00045
    0.012192
  • E06063
    0.25
    6.35
    0.25
    6.35
    0.0012
    0.03175
    0.0006
    0.015875
  • E06127
    0.25
    6.35
    0.5
    12.7
    0.0025
    0.0635
    0.00125
    0.03175
  • T6503
    0.26
    6.5
    0.118
    3
    0.0006
    0.015
    0.0003
    0.0075
  • Enter Desired Leadscrew Length (in millimeters):

    10mm< < 400mm
  • Leadscrew Coating Options:

  • End Machining Options:

  • 3.Choose Your Nut

    Select either a Constant Force TM Anti-Backlash nut or a Standard nut option:

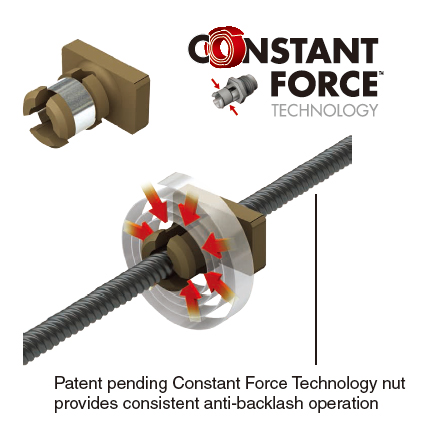

    Constant Force TM Anti-Backlash Nut An intuitive leap forward in nut design for lead screw applications,Constant Force Technology utilizes a constant force spring to apply a uniform pressure to the nut at all stages of the motion profile.

      ● Greater consistency and resistance to backlash
      ● Configurable for various torque requirements
      ● Patent pending self-adjusting anti-backlash feature
      ● Polymer nuts are self-lubricating and maintenance free

    Anti-Backlash Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE NUT THREAD DIAMETER (mm) NUT OD (in) NUT LENGTH (in)
  • BR1 Anti-Backlash Round 5.54-6.5 10 19
  • BT1 Anti-Backlash Triangular 5.54-6.5 10 19

    Standard Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE

    NUT THREAD

    DIAMETER (mm)

    NUT OD (mm) NUT LENGTH (mm)
  • AR1 Free-running Round 5.54-6.5 10 19
  • AT1 Free-running Triangular 5.54-6.5 10 19

    Selected Part Number Is

    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX

    Please confirm you have selected the motor, the leadscrew and the nut.

    Request For Quote

    Compare Item Price
    (USD)
    Buy Now
    LSM143S-T6503-102-AR1-0 $122.60
    LE141S-T6503-200-AR1-S-100 N/A
    LE141S-W0601-100-AR1-S-100 N/A
    LE141S-W0601-50-AR1-S-100 N/A
    LE141S-E06127-100-AR1-S-100 N/A
    LE143S-W0601-200-AR1-S-150 N/A
    LE143S-E06063-200-AR1-S-050 N/A
    LE143S-T6503-200-AR1-S-050 N/A
    LE143S-T6503-150-AR1-S-150 N/A
    LE143S-W0601-150-AR1-S-050 N/A
    LE143S-E06063-100-AR1-S-150 N/A
    LE141S-E06063-200-AR1-S-100 N/A
    LE143S-E06063-150-AR1-S-050 N/A
    LE143S-E06063-50-AR1-S-050 N/A
    LE143S-E06127-100-AR1-S-150 N/A
    LE141S-W0601-150-AR1-S-100 N/A
    LE143S-E06127-200-AR1-S-050 N/A
    LE143S-E06127-200-AR1-S-150 N/A
    LE143S-T6503-200-AR1-S-150 N/A
    LE143S-W0601-100-AR1-S-050 N/A
    LE143S-W0601-50-AR1-S-050 N/A
    LE143S-E06063-200-AR1-S-150 N/A
    LE143S-W0601-200-AR1-S-050 N/A
    LE141S-E06127-150-AR1-S-100 N/A
    LE141S-E06127-50-AR1-S-100 N/A
    LE143S-T6503-50-AR1-S-150 N/A
    LE143S-T6503-100-AR1-S-150 N/A
    LE143S-W0601-50-AR1-S-150 N/A
    LE143S-E06127-100-AR1-S-050 N/A
    LE143S-E06063-150-AR1-S-150 N/A
    LE143S-E06127-50-AR1-S-150 N/A
    LE143S-T6503-50-AR1-S-050 N/A
    LE141S-T6503-50-AR1-S-100 N/A
    LE143S-E06063-100-AR1-S-050 N/A
    LE143S-E06127-150-AR1-S-050 N/A
    LE141S-E06063-100-AR1-S-100 N/A
    LE141S-E06063-150-AR1-S-100 N/A
    LE143S-E06127-150-AR1-S-150 N/A
    LE141S-W0601-200-AR1-S-100 N/A
    LE141S-T6503-100-AR1-S-100 N/A
    LE141S-E06063-50-AR1-S-100 N/A
    LE141S-T6503-150-AR1-S-100 N/A
    LE141S-E06127-200-AR1-S-100 N/A
    LE143S-T6503-150-AR1-S-050 N/A
    LE143S-T6503-100-AR1-S-050 N/A
    LE143S-E06063-50-AR1-S-150 N/A
    LE143S-E06127-50-AR1-S-050 N/A
    LE143S-W0601-150-AR1-S-150 N/A
    LE143S-W0601-100-AR1-S-150 N/A

    ■ Motor Dimensions: mm
    tupian
    ■ Nut Type Dimensions: mm
    tupian
    ■ Mating connector With Leads(order separately) Dimensions: mm
    tupian

    2D Drawings
    Title Type Size(KB) Date View times Download
    LSM143S-T6503-102-AR1-0.PDF PDF 348 2017-11-20 9
    LE143S-E06063-100-AR1-S-150.PDF PDF 355 2018-09-14 3
    LE143S-W0601-200-AR1-S-150.PDF PDF 354 2018-09-14 1
    LE143S-T6503-200-AR1-S-050.PDF PDF 354 2018-09-13 1
    LE143S-W0601-50-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE143S-E06127-200-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE141S-E06127-100-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE141S-W0601-50-AR1-S-100.PDF PDF 355 2018-09-11 0
    LE143S-T6503-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE143S-E06063-50-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE141S-E06063-50-AR1-S-100.PDF PDF 355 2018-09-11 0
    LE143S-E06063-150-AR1-S-050.PDF PDF 354 2018-09-13 0
    LE141S-W0601-200-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-T6503-150-AR1-S-050.PDF PDF 354 2018-09-13 0
    LE141S-E06127-150-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-W0601-50-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE143S-W0601-100-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE141S-E06063-100-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-W0601-150-AR1-S-050.PDF PDF 354 2018-09-13 0
    LE143S-T6503-200-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE141S-T6503-50-AR1-S-100.PDF PDF 355 2018-09-11 0
    LE143S-T6503-100-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE143S-T6503-50-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE141S-E06127-200-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-E06127-50-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE143S-E06127-100-AR1-S-050.PDF PDF 354 2018-09-14 0
    LE143S-E06063-200-AR1-S-050.PDF PDF 354 2018-09-13 0
    LE141S-E06063-150-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-T6503-100-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE143S-E06063-200-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE143S-E06063-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE141S-T6503-100-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-W0601-200-AR1-S-050.PDF PDF 354 2018-09-13 0
    LE143S-W0601-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE143S-E06127-50-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE143S-E06063-100-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE143S-E06127-100-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE141S-E06063-200-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-E06127-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE143S-E06063-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE141S-T6503-150-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-T6503-50-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE143S-W0601-100-AR1-S-150.PDF PDF 355 2018-09-14 0
    LE141S-W0601-100-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE141S-E06127-50-AR1-S-100.PDF PDF 355 2018-09-11 0
    LE143S-E06063-150-AR1-S-150.PDF PDF 354 2018-09-14 0
    LE141S-T6503-200-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-E06063-50-AR1-S-050.PDF PDF 355 2018-09-13 0
    LE141S-W0601-150-AR1-S-100.PDF PDF 354 2018-09-11 0
    LE143S-E06127-200-AR1-S-050.PDF PDF 354 2018-09-14 0
    LE143S-E06127-150-AR1-S-050.PDF PDF 354 2018-09-14 0
    3D Model
    Title Type Size(KB) Date View times Download
    LSM143S-T6503-102-AR1-0.STEP STEP 790 2017-11-20 10
    LE141S-T6503-200-AR1-S-100.STEP STEP 734 2018-09-11 0
    LE143S-T6503-50-AR1-S-150.STEP STEP 760 2018-09-14 0
    LE141S-W0601-150-AR1-S-100.STEP STEP 750 2018-09-11 0
    LE143S-W0601-50-AR1-S-050.STEP STEP 766 2018-09-14 0
    LE141S-E06127-100-AR1-S-100.STEP STEP 771 2018-09-11 0
    LE143S-E06063-150-AR1-S-150.STEP STEP 748 2018-09-14 0
    LE143S-W0601-150-AR1-S-150.STEP STEP 757 2018-09-14 0
    LE141S-W0601-50-AR1-S-100.STEP STEP 5971 2018-09-11 0
    LE143S-T6503-100-AR1-S-050.STEP STEP 766 2018-09-14 0
    LE141S-E06063-50-AR1-S-100.STEP STEP 778 2018-09-11 0
    LE143S-E06063-100-AR1-S-050.STEP STEP 768 2018-09-14 0
    LE143S-T6503-150-AR1-S-050.STEP STEP 748 2018-09-14 0
    LE141S-W0601-200-AR1-S-100.STEP STEP 5971 2018-09-11 0
    LE143S-E06127-50-AR1-S-050.STEP STEP 761 2018-09-14 0
    LE143S-W0601-50-AR1-S-150.STEP STEP 766 2018-09-14 0
    LE141S-E06127-150-AR1-S-100.STEP STEP 750 2018-09-11 0
    LE143S-T6503-150-AR1-S-150.STEP STEP 748 2018-09-14 0
    LE143S-W0601-100-AR1-S-150.STEP STEP 772 2018-09-14 0
    LE141S-E06063-100-AR1-S-100.STEP STEP 772 2018-09-11 0
    LE143S-E06127-150-AR1-S-150.STEP STEP 748 2018-09-14 0
    LE141S-T6503-50-AR1-S-100.STEP STEP 769 2018-09-11 0
    LE143S-E06063-200-AR1-S-150.STEP STEP 721 2018-09-14 0
    LE141S-E06127-200-AR1-S-100.STEP STEP 743 2018-09-11 0
    LE143S-W0601-100-AR1-S-050.STEP STEP 772 2018-09-14 0
    LE141S-E06063-150-AR1-S-100.STEP STEP 750 2018-09-11 0
    LE143S-W0601-200-AR1-S-050.STEP STEP 729 2018-09-14 0
    LE143S-E06063-150-AR1-S-050.STEP STEP 748 2018-09-14 0
    LE143S-T6503-200-AR1-S-150.STEP STEP 721 2018-09-14 0
    LE141S-T6503-100-AR1-S-100.STEP STEP 763 2018-09-11 0
    LE143S-E06063-50-AR1-S-150.STEP STEP 761 2018-09-14 0
    LE143S-T6503-100-AR1-S-150.STEP STEP 766 2018-09-14 0
    LE143S-W0601-150-AR1-S-050.STEP STEP 757 2018-09-14 0
    LE143S-T6503-200-AR1-S-050.STEP STEP 721 2018-09-14 0
    LE141S-E06063-200-AR1-S-100.STEP STEP 743 2018-09-11 0
    LE143S-T6503-50-AR1-S-050.STEP STEP 760 2018-09-14 0
    LE143S-W0601-200-AR1-S-150.STEP STEP 729 2018-09-14 0
    LE143S-E06063-100-AR1-S-150.STEP STEP 757 2018-09-14 0
    LE143S-E06127-100-AR1-S-050.STEP STEP 757 2018-09-14 0
    LE141S-T6503-150-AR1-S-100.STEP STEP 741 2018-09-11 0
    LE143S-W0601-200-AR1-S-150.STEP STEP 729 2018-09-14 0
    LE143S-E06063-50-AR1-S-050.STEP STEP 761 2018-09-14 0
    LE143S-E06063-200-AR1-S-050.STEP STEP 721 2018-09-14 0
    LE141S-W0601-100-AR1-S-100.STEP STEP 772 2018-09-11 0
    LE143S-E06127-200-AR1-S-150.STEP STEP 721 2018-09-14 0
    LE143S-E06127-150-AR1-S-050.STEP STEP 748 2018-09-14 0
    LE143S-E06127-100-AR1-S-150.STEP STEP 757 2018-09-14 0
    LE141S-E06127-50-AR1-S-100.STEP STEP 778 2018-09-11 0
    LE143S-E06127-200-AR1-S-050.STEP STEP 721 2018-09-14 0
    LE143S-E06127-50-AR1-S-150.STEP STEP 761 2018-09-14 0
    LE143S-W0601-200-AR1-S-150.STEP STEP 729 2018-09-14 0
    Catalog
    Title Type Size(KB) Date View times Download
    Lead Screw Motor-Catalog.PDF PDF 9549 2017-11-16 67

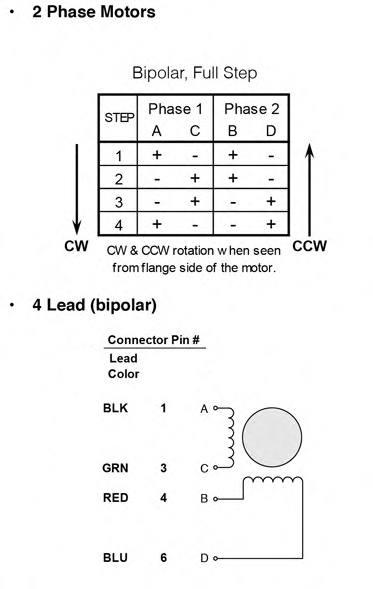

    Step Sequence & Schematic Diagrams




    Delivery & Packaging

    Logistics tracking

    Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

    Professional Product Label

    Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

    Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

    Note: This label design is suitable for products of stepper motor.

    (Professional packing box and unique appearance design)

    (Single item packed with EPE)

    (Multi-products packed with another box)

    Safely Packaging

    In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
    Besides,the package is made from recyclable materials, providing you with professional safety delivery.
    Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

    Shipping Visualization

    For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

    (Product in the box)

    (Add the invoice)

    (Label the commodity)

    (The logistics waybill attached)

    Fast Delivery

    Fast Cross-Border Delivery
    MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
    Estimated Delivery Time: e.g. China-USA major cities 3 business days.

    Professional
    Warehouse Management

    MOONS’ has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
