    The Step-Servo is an innovative revolution for the world of stepper motor, it enhances the stepper motors with servo technology to create a product with exceptional feature and broad capability.
    ● Intelligent built-in controller
    ● Muti-axis field bus control
    ● Enhanced motor, optimized design for long life
    ● Efficient, smooth, accurate & fast
    ● Low vibration, low noise, low heat
    Brand Name: MOONS'
    Price: USD  347.0  -  476.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more
    * From May. 1 - May. 5, Online Orders Shipping will be postponed during Labour Day and resume on the first working day – May. 6. Thanks for your patience!

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Software
  • Numbering System
  • Ordering Information
    •

    ■ Description

    The Step-Servo is an innovative revolution for the world of stepper motor, it enhances the stepper motors with servo technology to create a product with exceptional feature and broad capability.
    Back To Top

    ■ Features

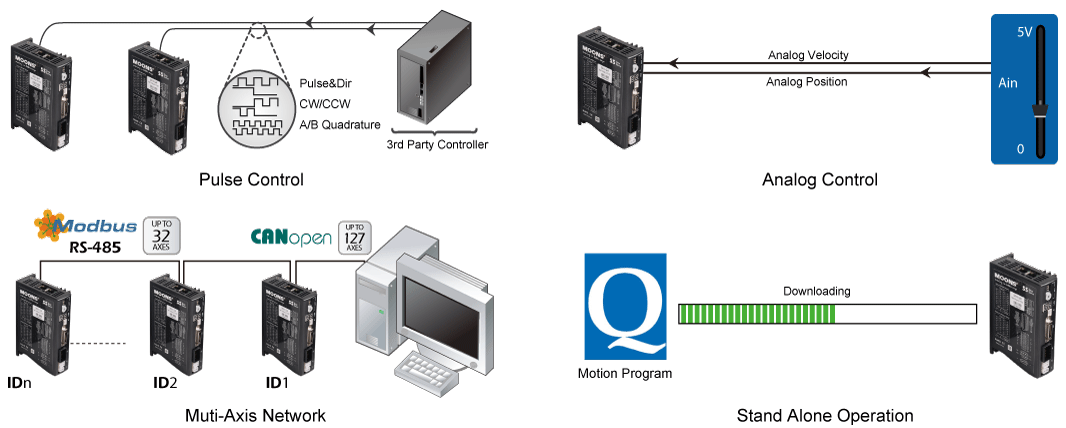

    Multi-functional Capability
    Closed Loop
    ● Very tight position and velocity control for the most demanding applications.
    ● Robust servo loops that tolerate wide fluctuation in load inertia and frictional loading.
    ● Precise positioning to within ±1 count using high resolution encoder (20000 counts/rev for AM17/23/24/34SS motor, 4096 counts/rev for AM11SS motor).

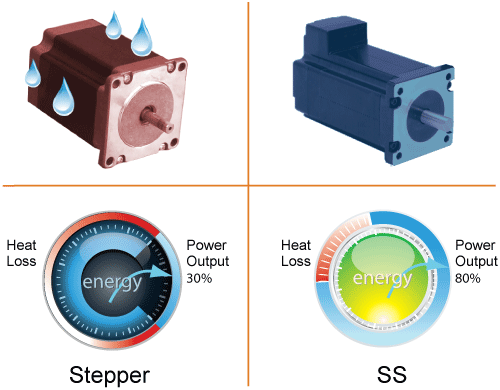

    Low Heating/High Efficiency
    ● Uses only the current required by the application, generating minimum heat output.
    ● When stand-still, current can reach nearly zero for extremely low heat output.
    ● Being able to use almost 100% of torque, allows for more efficient and compact motor usage.

    Smooth & Accurate
    ● Space vector current control with 5000 line high resolution encoder, gives smooth and quiet operation, especially at low speeds. A feature never found with traditional stepping motors ● High stiffness due to the nature of the stepping motor combined with the highly responsive servo control. Accurate position control both while running and static positioning

    Fast Response
    When performing fast point-to-point moves, the high torque output and advanced servo control provides a very responsive system far exceeding what can be done with a conventional stepper system.

    High Torque
    ● Because the Step-Servo operates in full servo mode, all the available torque of the motor can be used.
    ● The motor can provide as much as 50% more torque in many applications. High torque capability often eliminates the need for gear reduction.
    ● Boost torque capability can provide as much as 50% more torque for short, quick moves.

    Motion Monitoring
    ● For difficult control situations where performing a precise move is necessary, the Step-Servo Quick Tuner provide an easy to use interface for performing and monitoring the motion profile.
    ● Many common parameters such as Actual Speed or Position Error can be monitored to evaluate system performance.
    ● The monitoring is interactive with the servo tuning capability so that optimum performance can be achieved.

    Easy Tuning
    ● Pre-defined tuning parameters for maximum control performance and stability.
    ● Easy selection list provides the level of control desired.
    ● In most cases NO extra manual tuning is required.

    Key Features
    ● Up to 8 digital inputs, 4 digital outputs and 2 analog inputs for S/Q/C type
    ● A/B/Z differential encoder signal output supported for P/R type
    ● Automatic load inertia detection
    ● On board daisy chain connection for field bus control(RS-485, Modbus/RTU, CANopen)
    ● Multiple homing methods for S/Q type
    ● Software limit for S/Q type<
    ● Motor with brake available<
    Back To Top

    ■ Software

    Step-Servo Quick Tuner
    ◆Friendly interface
    ◆Easy setup within just three steps
    ◆Drive setup and configuration
    ◆Servo tuning and sampling
    ◆Motion testing and monitoring
    ◆Write and save SCL command scripts
    ◆Integrated online help

    Built-in Q Programming
    ◆Single-axis motion control
    ◆Stored program execution
    ◆Multi-tasking
    ◆Conditional processing
    ◆Math functions
    ◆Data registers
    ◆Motion profile simulation
    ◆Online help integrated

    RS485 Bus Utility
    ◆Stream SCL commands from the command line
    ◆Simple interface with powerful capability
    ◆Easy setup with RS-485 for 32 axis network motion control
    ◆Monitoring Status of I/O, drive, alarm and the other nine most
    ◆Useful motion parameters
    ◆Write and save SCL command scripts
    ◆Online help integrated
    ◆Supports all RS-485 drives

    CANopen Test Tool
    ◆Friendly User Interface
    ◆Multiple operation Mode Support
    ◆Multi-Thread, High Performance
    ◆CAN bus monitor and log function
    ◆Kvaser/PEAK adapter support
    Back To Top

    ■ Model Numbering System

    Back To Top

    ■ Ordering Information

    Control Drive Type Motor Type Torque Control Drive Type Motor Type Torque
    R Type
    Pulse Input Type
    Selectable Switch &
    RS232
    Communication
    6 Digital Inputs
    2 Digital Outputs
    Encoder Output    		 SS03-R-A AM11SS1DMA 0.065N·m P Type
    Pulse Input Type
    RS232
    Communication
    6 Digital Inputs
    2 Digital Outputs
    Encoder Output    		 SS03-P-A AM11SS1DMA 0.065N·m
    AM11SS2DMA 0.08N·m AM11SS2DMA 0.08N·m
    AM11SS3DMA 0.125N·m AM11SS3DMA 0.125N·m
    SS03-R-A /
    SS05-R-A    		 AM17SS1DG □ 0.26N·m SS03-P-A /
    SS05-P-A    		 AM17SS1DG □ 0.26N·m
    AM17SS2DG □ 0.42N·m AM17SS2DG □ 0.42N·m
    AM17SS3DG □ 0.52N·m AM17SS3DG □ 0.52N·m
    AM17SS4DG □ 0.7N·m AM17SS4DG □ 0.7N·m
    SS05-R-A AM23SS2DG □ 0.95N·m SS05-P-A AM23SS2DG □ 0.95N·m
    AM23SS3DG □ 1.5N·m AM23SS3DG □ 1.5N·m
    AM23SS4DGA 2.4N·m AM23SS4DGA 2.4N·m
    SS10-R-A AM24SS3DG □ 2.5N·m SS10-P-A AM24SS3DG □ 2.5N·m
    AM34SS1DGA 2.7N·m AM34SS1DGA 2.7N·m
    AM34SS3DGA 5.2N·m AM34SS3DGA 5.2N·m
    AM34SS5DGA 7N·m AM34SS5DGA 7N·m
    Control Drive Type Motor Type Torque Control Drive Type Motor Type Torque
    S Type
    Basic Type
    RS232
    Communication
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs    		 SS03-S-A AM11SS1DMA 0.065N·m S Type
    Basic Type
    RS485
    Communication
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs    		 SS03-S-R AM11SS1DMA 0.065N·m
    AM11SS2DMA 0.08N·m AM11SS2DMA 0.08N·m
    AM11SS3DMA 0.125N·m AM11SS3DMA 0.125N·m
    SS03-S-A /
    SS05-S-A    		 AM17SS1DG □ 0.26N·m SS03-S-R /
    SS05-S-R    		 AM17SS1DG □ 0.26N·m
    AM17SS2DG □ 0.42N·m AM17SS2DG □ 0.42N·m
    AM17SS3DG □ 0.52N·m AM17SS3DG □ 0.52N·m
    AM17SS4DG □ 0.7N·m AM17SS4DG □ 0.7N·m
    SS05-S-A AM23SS2DG □ 0.95N·m SS05-S-R AM23SS2DG □ 0.95N·m
    AM23SS3DG □ 1.5N·m AM23SS3DG □ 1.5N·m
    AM23SS4DGA 2.4N·m AM23SS4DGA 2.4N·m
    SS10-S-A AM24SS3DG □ 2.5N·m SS10-S-R AM24SS3DG □ 2.5N·m
    AM34SS1DGA 2.7N·m AM34SS1DGA 2.7N·m
    AM34SS3DGA 5.2N·m AM34SS3DGA 5.2N·m
    AM34SS5DGA 7N·m AM34SS5DGA 7N·m
    Control Drive Type Motor Type Torque Control Drive Type Motor Type Torque
    Q Type
    Programm Type
    RS232
    Communication
    Modbus/RTU
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs    		 SS03-Q-A AM11SS1DMA 0.065N·m Q Type
    Programm Type
    RS485
    Communication
    Modbus/RTU
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs    		 SS03-Q-R AM11SS1DMA 0.065N·m
    AM11SS2DMA 0.08N·m AM11SS2DMA 0.08N·m
    AM11SS3DMA 0.125N·m AM11SS3DMA 0.125N·m
    SS03-Q-A /
    SS05-Q-A    		 AM17SS1DG □ 0.26N·m SS03-Q-R /
    SS05-Q-R    		 AM17SS1DG □ 0.26N·m
    AM17SS2DG □ 0.42N·m AM17SS2DG □ 0.42N·m
    AM17SS3DG □ 0.52N·m AM17SS3DG □ 0.52N·m
    AM17SS4DG □ 0.7N·m AM17SS4DG □ 0.7N·m
    SS05-Q-A AM23SS2DG □ 0.95N·m SS05-Q-R AM23SS2DG □ 0.95N·m
    AM23SS3DG □ 1.5N·m AM23SS3DG □ 1.5N·m
    AM23SS4DGA 2.4N·m AM23SS4DGA 2.4N·m
    SS10-Q-A AM24SS3DG □ 2.5N·m SS10-Q-R AM24SS3DG □ 2.5N·m
    AM34SS1DGA 2.7N·m AM34SS1DGA 2.7N·m
    AM34SS3DGA 5.2N·m AM34SS3DGA 5.2N·m
    AM34SS5DGA 7N·m AM34SS5DGA 7N·m
    Control Drive Type Motor Type Torque Control Drive Type Motor Type Torque
    C Type
    CANopen
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs    		 SS03-C-C AM11SS1DMA 0.065N·m EC Type
    EtherCAT
    mini USB
    8 Digital Inputs
    4 Digital Outputs
    2 Analog Inputs
    Encoder Output    		 SS03-EC-D AM11SS1DMA 0.065N·m
    AM11SS2DMA 0.08N·m AM11SS2DMA 0.08N·m
    AM11SS3DMA 0.125N·m AM11SS3DMA 0.125N·m
    SS03-C-C /
    SS05-C-C    		 AM17SS1DG □ 0.26N·m SS03-EC-D /
    SS05-EC-D    		 AM17SS1DG □ -N 0.26N·m
    AM17SS2DG □ 0.42N·m AM17SS2DG □ -N 0.42N·m
    AM17SS3DG □ 0.52N·m AM17SS3DG □ -N 0.52N·m
    AM17SS4DG □ 0.7N·m AM17SS4DG □ -N 0.7N·m
    SS05-C-C AM23SS2DG □ 0.95N·m SS05-EC-D AM23SS2DG □ -N 0.95N·m
    AM23SS3DG □ 1.5N·m AM23SS3DG □ -N 1.5N·m
    AM23SS4DGA 2.4N·m AM23SS4DGA-N 2.4N·m
    SS10-C-C AM24SS3DG □ 2.5N·m SS10-EC-D AM24SS3DG □ -N 2.5N·m
    AM34SS1DGA 2.7N·m AM34SS1DGA-N 2.7N·m
    AM34SS3DGA 5.2N·m AM34SS3DGA-N 5.2N·m
    AM34SS5DGA 7N·m AM34SS5DGA-N 7N·m
    □ : Enter A(Enhanced Shaft) or B(Standard) in the box( □ ) within the model name
    Back To Top

    Data Sheet

    Power Amplifier
     Amplifier Type  Dual H-Bridge, 4 Quadrant
     Current Control  4 state PWM at 20 KHz
     Output Current  SS03:
     Continuous Current 3A max, Boost Current 4.5A max (1.5s), current limitation auto set-up by attached motor
     SS05:
     Continuous Current 5A max, Boost Current 7.5A max (1.5s), current limitation auto set-up by attached motor
     SS10:
     Continuous Current 10A max, Boost Current 15A max (1.5s), current limitation auto set-up by attached motor
     Power Supply  External nominal 24 - 75 volt DC power supply required, Absolute maximum input voltage range 18 - 80 VDC
     Protection  Over-voltage, under-voltage, over-temp, motor/winding shorts (phase-to-phase, phase-to-ground)
    Controller
     Electronic Gearing  Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev
     Filters  Digital input noise filter, Analog input noise filter, Smoothing filter, PID filter, Notch filter
     Non-Volatile Storage  Configurations are saved in FLASH memory on-board the DSP
     +5V Output  4.8~5V, 100 mA max
    SS-R/P/S/Q/C Type Controller
     Modes of Operation  R/P type:
     Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature)
     S type:
     Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature); Torque Mode, Velocity Mode, SCL Mode
     Q type:
     Position Mode(Pulse & Direction, CW & CCW Pulse, A/B Quadrature); Torque Mode, Velocity Mode, SCL Mode, Q Programming, Modbus/RTU
     C type:
     CANopen, CiA301, CiA402, Q Programming
     Digital Inputs  R/P type:
     X1/STEP, X2/DIR, X3/CW Limit, X4/CCW Limit; Optically isolated, differential, 5-24VDC; Minimum pulse width = 250 ns,
     Maximum pulse frequency = 2 MHz; X5/Enable, X6/Alarm Reset; Optically isolated, single-ended, 5-24VDC
     S/Q/C type:
     X1/STEP, X2/DIR, X3/CW Limit, X4/CCW Limit; Optically isolated, differential, 5-24VDC; Minimum pulse width = 250 ns,
     Maximum pulse frequency = 2 MHz; X5/Enable, X6/Alarm Reset, X7, X8; Optically isolated, single-ended, 5-24VDC
     Digital Outputs  R/P type:
     Y1/Alarm, Y2/In Position; Optically isolated, 30V/100 mA max
     S/Q/C type:
     Y1/Alarm, Y2/In Position, Y3, Y4; Optically isolated, 30V/100 mA max
     Analog Inputs
     (S/Q/C type only)    		  Two analog inputs
     Each input can accept a signal range of 0 to 5 VDC, ±5 VDC, 0 to 10 VDC or ±10 VDC
     Encoder Outputs
     (R/P type only)    		  Differential encoder outputs (A±, B±, Z±), 26C31 line driver, 20 mA sink or source max
     Communication  RS-232, RS-485(optional), Modbus/RTU(optional), CANopen(optional)
    SS-EtherCAT Type Controller
     Encoder Resolution  20000 counts/rev for AM17/23/24/34SS motor; 4096 counts/rev for AM11SS motor
     Speed Range  Speeds up to 3600 rpm
     Supported Protocol  CoE (CiA 402 Drive profile)
     Supported Modes  Profile Position, Profile Velocity, Profile Torque, Cyclic Synchronous Position,
     Cyclic Synchronous Velocity, Homing and MOONS' own Q mode
     Synchronization  SM Event, DC SYNC Event
     Digital Inputs  X1, X2, X3, X4:
     optically isolated, differential, 5-24VDC, minimum pulse width 250ns, maximum pulse frequency 2MHz
     X5, X6, X7, X8:
     optically isolated, single-ended input, 5 - 24 volts
     Digital Output  Y1, Y2, Y3, Y4: optically isolated, open collector, 30 volts, 100 mA max, maximum pulse frequency 10 KHz
     Analog Input  AIN1, AIN2:
     individually single-ended or together differential Input resolution 12-bit, software configured as 0-5 volts,
     0-10 volts, ±5 volts or ±10 volts (AIN referenced to GND)
     Communication  EtherCAT and mini USB for configuration
    Physical
     Ambient Temperature  0 to 40°C (32 to 104°F) when mounted to a suitable heatsink
     Ambient Humdity  90% Max., non-condensing
     Mass  Approx 0.3 Kg

    Compare Item Price
    (USD)    		 Buy Now
    SS05-P-A $347.00
    SS05-R-A $347.00
    SS10-P-A $347.00
    SS10-R-A $347.00
    SS03-R-A $347.00
    SS03-P-A $347.00
    SS10-Q-R $347.00
    SS10-EC-D $476.00
    SS03-EC-D $476.00
    SS05-S-A $347.00
    SS05-Q-R $347.00
    SS03-S-R $347.00
    SS10-C-C $347.00
    SS10-S-A $347.00
    SS05-EC-D $476.00
    SS10-Q-A $347.00
    SS10-S-R $347.00
    SS05-S-R $347.00
    SS05-Q-A $347.00
    SS03-S-A $347.00
    SS05-C-C $347.00
    SS03-Q-A $347.00
    SS03-C-C $347.00
    SS03-Q-R $347.00
       Torque Speed Curves

    □ AM11SS Series

    □ AM17SS Series

    □ AM23SS Series

    □ AM24SS Series

    □ AM34SS Series

    Dimension

  • Drive
  • Motor
  • Motor(With Brake)
    •

    ■ Drive（Unit:mm）


    Model
    SS03-P-A SS05-P-A SS10-P-A
    SS03-S-A SS05-S-A SS10-S-A
    SS03-Q-A SS05-Q-A SS10-Q-A
    Model
    SS03-S-R SS05-S-R SS10-S-R
    SS03-Q-R SS05-Q-R SS10-Q-R
    SS03-C-C SS05-C-C SS10-C-C
    Model
    SS03-R-A
    SS05-R-A
    SS10-R-A


    ■ Motor（Unit:mm）



    AM11SS L
    AM11SS1DMA 43.8
    AM11SS2DMA 52.9
    AM11SS3DMA 64.1
    AM17SS A A1 B B1 L
    AM17SS1DGA φ6 5.5 20 15 59.5
    AM17SS1DGB φ5 4.5 24 15 59.5
    AM17SS2DGA φ6 5.5 20 15 65
    AM17SS2DGB φ5 4.5 24 15 65
    AM17SS3DGA φ6 5.5 20 15 73.5
    AM17SS3DGB φ5 4.5 24 15 73.5
    AM17SS4DGA φ6 5.5 20 15 89
    AM17SS4DGB φ5 4.5 24 15 89


    AM23SS A A1 B B1 L
    AM23SS2DGA φ8 7.5 24 20 77.5
    AM23SS2DGB φ6.35 5.85 20 15 77.5
    AM23SS3DGA φ8 7.5 24 20 99.5
    AM23SS3DGB φ6.35 5.85 20 15 99.5
    AM23SS4DGA φ8 7.5 24 20 102.5
    AM24SS A A1 B B1
    AM24SS3DGA φ10 9.5 24 20
    AM24SS3DGB φ8 7.5 20 15


    AM34SS B1
    AM34SS1DGA 88
    AM34SS3DGA 117.5
    AM34SS5DGA 147


    ■ Motor(With Brake)（Unit:mm）

    AM17SS AM23SS AM24SS AM34SS
    AM17SS3DGA-BR01 AM23SS2DGA-BR01 AM24SS3DGA-BR01 AM34SS3DGA-BR01
    AM17SS3DGB-BR01 AM23SS2DGB-BR01 AM24SS3DGB-BR01 AM34SS5DGA-BR01
      AM23SS3DGA-BR01
      AM23SS3DGB-BR01
      AM23SS4DGA-BR01


    AM17SS A A1 B
    AM17SS3DGA-BR01 φ6 5.5 20
    AM17SS3DGB-BR01 φ5 4.5 24
    AM23SS A A1 B B1 L
    AM23SS2DGA-BR01 φ8 7.5 24 20 77.5
    AM23SS2DGB-BR01 φ6.35 5.85 20 15 77.5
    AM23SS3DGA-BR01 φ8 7.5 24 20 99.5
    AM23SS3DGB-BR01 φ6.35 5.85 20 15 99.5
    AM23SS4DGA-BR01 φ8 7.5 24 20 102.5


    AM24SS A A1 B B1
    AM24SS3DGA-BR01 φ10 9.5 24 20
    AM24SS3DGB-BR01 φ8 7.5 20.6 15
    AM34SS L
    AM34SS3DGA-BR01 117.5
    AM34SS5DGA-BR01 147

    Downloads
    2D Drawings
    Title Type Size（KB） Download
    SS05-R-A_2D Drawings.pdf PDF 75
    SS10-EC-D_2D Drawings.dwg DWG 582
    SS10-P-A_2D Drawings.dwg DWG 394
    SS05-EC-D_2D Drawings.dwg DWG 582
    SS05-R-A_2D Drawings.dwg DWG 390
    SS10-Q-R_2D Drawings.pdf PDF 79
    SS10-R-A_2D Drawings.dwg DWG 390
    SS10-EC-D_2D Drawings.pdf PDF 147
    SS10-Q-R_2D Drawings.dwg DWG 391
    SS03-R-A_2D Drawings.pdf PDF 75
    SS10-S-R_2D Drawings.pdf PDF 79
    SS10-Q-A_2D Drawings.pdf PDF 79
    SS03-P-A_2D Drawings.pdf PDF 76
    SS05-P-A_2D Drawings.pdf PDF 76
    SS10-P-A_2D Drawings.pdf PDF 76
    SS05-C-C_2D Drawings.pdf PDF 76
    SS10-C-C_2D Drawings .pdf PDF 76
    SS10-C-C_2D Drawings.dwg DWG 391
    SS05-S-A_2D Drawings.pdf PDF 79
    SS10-S-A_2D Drawings.pdf PDF 79
    SS10-S-R_2D Drawings.dwg DWG 391
    SS03-Q-A_2D Drawings.pdf PDF 79
    SS05-Q-R_2D Drawings.dwg DWG 391
    SS03-EC-D_2D Drawings.dwg DWG 582
    SS03-R-A_2D Drawings.dwg DWG 390
    SS10-R-A_2D Drawings.pdf PDF 75
    SS03-P-A_2D Drawings.dwg DWG 394
    SS05-P-A_2D Drawings.dwg DWG 394
    SS03-C-C_2D Drawings.pdf PDF 76
    SS03-C-C_2D Drawings.dwg DWG 391
    SS05-C-C_2D Drawings.dwg DWG 391
    SS03-EC-D_2D Drawings .pdf PDF 147
    SS05-EC-D_2D Drawings.pdf PDF 147
    SS03-S-A_2D Drawings.pdf PDF 79
    SS03-S-A_2D Drawings.dwg DWG 394
    SS05-S-A_2D Drawings.dwg DWG 394
    SS10-S-A_2D Drawings.dwg DWG 394
    SS03-S-R_2D Drawings.pdf PDF 79
    SS03-S-R_2D Drawings.dwg DWG 391
    SS05-S-R_2D Drawings.pdf PDF 79
    SS05-S-R_2D Drawings.dwg DWG 391
    SS03-Q-A_2D Drawings.dwg DWG 394
    SS05-Q-A_2D Drawings.dwg DWG 394
    SS05-Q-A_2D Drawinds.pdf PDF 79
    SS03-Q-R_2D Drawings.dwg DWG 391
    SS03-Q-R_2D Drawings.pdf PDF 79
    SS05-Q-R_2D Drawings.pdf PDF 79
    SS10-Q-A_2D Drawings.dwg DWG 394
    3D Model
    Title Type Size（KB） Download
    SS10-EC-D 3D Model.step STEP 8765
    SS10-P-A_3D Model.step STEP 5809
    SS05-R-A_3D Model.step STEP 6147
    SS10-C-C_3D Model.step STEP 6040
    SS10_Q-R_3D Model.step STEP 6040
    SS03-P-A_3D Model.step STEP 5809
    SS03-EC-D 3D Model.step STEP 8765
    SS10-Q-A_3D Model.step STEP 5809
    SS03-R-A_3D Model.step STEP 6147
    SS10-R-A_3D Model.step STEP 6147
    SS03-C-C_3D Model.step STEP 6040
    SS05-EC-D 3D Model.step STEP 8765
    SS10-S-A_3D Model.step STEP 5809
    SS03-Q-A_3D Model.step STEP 5809
    SS05-P-A_3D Model.step STEP 5809
    SS05-C-C_3D Model.step STEP 6040
    SS03-S-A_3D Model.step STEP 5809
    SS05-S-A_3D Model.step STEP 5809
    SS03-S-R_3D Model.step STEP 6040
    SS05-S-R_3D Model.step STEP 6040
    SS10-S-R_3D Model.step STEP 6040
    SS05-Q-A_3D Model.step STEP 5809
    SS03-Q-R_3D Model.step STEP 6040
    SS05-Q-R_3D Model.step STEP 6040
    Brochure
    Title Type Size（KB） Download
    SS Series_Brochure.pdf PDF 9872
    User Manual
    Title Type Size（KB） Download
    Host Command Reference.pdf PDF 6963
    CANopen Manual Rev 1.2.pdf PDF 3833
    SS03_5_10-EC Hardware Manual.pdf PDF 2035
    SS10-EC-D_User Manual.pdf PDF 2035
    SS10-C-C_User Manual.pdf PDF 1762
    SS05-R-A_User Manual.pdf PDF 1654
    SS10-R-A User Manual.pdf PDF 1654
    SS10-Q-R_User Manual.pdf PDF 1762
    SS05-EC-D_User Manual.pdf PDF 2035
    SS03_5_10-C User Manual.pdf PDF 1762
    SS03-EC-D_User Manual.pdf PDF 2035
    SS05-Q-R_User Manual.pdf PDF 1762
    SS03_5_10-P User Manual.pdf PDF 1654
    SS03_5_10-Q User Manual.pdf PDF 1762
    SS03_5_10-R User Manual.pdf PDF 1654
    SS05-S-R_User Manual.pdf PDF 1762
    SS05-P-A_User Manual.pdf PDF 1654
    SS05-S-A_User Manual.pdf PDF 1762
    SS03-Q-R_User Manual.pdf PDF 1762
    SS03_5_10-S User Manual.pdf PDF 1762
    SS03-C-C_User Manual.pdf PDF 1762
    SS03-Q-A_User Manual.pdf PDF 1762
    SS10-Q-A_User Manual.pdf PDF 1762
    SS03-P-A_User Manual.pdf PDF 1654
    SS10-S-A_User Manual.pdf PDF 1762
    SS03-S-R_User Manual.pdf PDF 1762
    SS03-R-A User Manual.pdf PDF 1654
    SS10-P-A_User Manual.pdf PDF 1654
    SS05-C-C_User Manual.pdf PDF 1762
    SS10-S-R_User Manual.pdf PDF 1762
    SS05-Q-A_User Manual.pdf PDF 1762
    SS03-S-A_User Manual.pdf PDF 1762
    Catalog
    Title Type Size（KB） Download
    Stepper Products General Catalog_20180531.pdf PDF 27992
    Quick Start
    Title Type Size（KB） Download
    SS-EC-D_Quick Start.pdf PDF 386
    Certification
    Software
       Delivery & Packaging



    Delivery & Packaging

    Logistics tracking

    Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

    Professional Product Label

    Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

    Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

    Note: This label design is suitable for products of stepper motor.

    (Professional packing box and unique appearance design)

    (Single item packed with EPE)

    (Multi-products packed with another box)

    Safely Packaging

    In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
    Besides，the package is made from recyclable materials, providing you with professional safety delivery.
    Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

    Shipping Visualization

    For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

    (Product in the box)

    (Add the invoice)

    (Label the commodity)

    (The logistics waybill attached)

    Fast Delivery

    Fast Cross-Border Delivery
    MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
    Estimated Delivery Time: e.g. China-USA major cities 3 business days.

    Professional
    Warehouse Management

    MOONS’ has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
