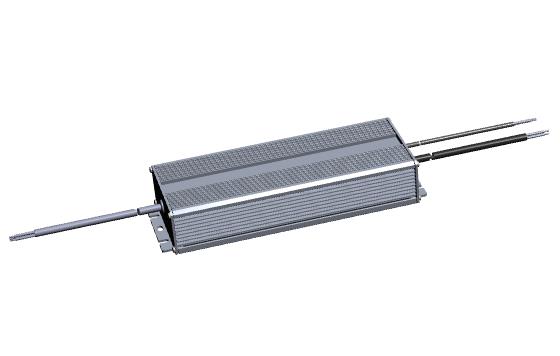

Ideal for higher lumen applications,the MT320HxxxAQ_CP Series is a 320W, constant-current, programmable outdoor LED driver that operate from 249~528 VAC input with excellent power factor.● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,UL,CE
● Flicker-Free Dimming Across Wide Dimming Range
● 0-10V/PWM/Clock Dimming/Constant Current(ALL Dimming Functions Are Programmable)
● High Surge Immunity: L-N:±4KV,L/N-FG:±6KV
● 5-year Warranty



Description
MT320HxxxAQ_CP series is a 320W LED AC-DC driver featuring the constant current mode. This series operates from 249~528VAC and offers dimming models with different rated current that could be configured by MOONS' patented programmer--MSSL200.With the fan-less design, the entire series are able to operate for -40°C~+70°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. MT320HxxxAQ_CP is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Dimming Function Introduction
MT320HxxxAQ_CP is a programmable driver, all driver's parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ), Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 320W/1000mA, 320W/2000mA, 320W/3000mA and so on. What's more, the driver is compatible with charged or uncharged programming mode.
1. Accessory-MSSL200
MSSL200 is the programmer of CLKS or CP Series driver.
The Programmable Driver Configurator Software and Configurator are compatible with MOONS' CLKS and CP drivers. They can be used to set the configuration parameters of MOONS' CLKS and CP drivers.
2. Dimming Function-Constant Power
Output Current: 65%∼ 100% ×rated output current
This series driver could achieve rated output power while adjusting output current range at 65%-100% rated output current.
Note:output current setting range with constant power 65%~100% Iomax
3. Dimming Function-PWM/1-10V Dimming
Dimming Range: 6.5%∼ 100% ×rated output current
The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.
![]() | ![]() |
PWM Interface | 1-10V Interface |
4. Dimming Function-Smart Midnight ClockDIM
Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.
Smart Midnight ClockDIM Interface
5. Dimming Function-Fixed ClockDIM
Users can set the dimming plan by separating 24 hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function.
For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.
| ![]() Fixed ClockDIM Interface |
Applications
The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Different form factors are available for the perfect fit with your luminaire.
![]() Street | ![]() Tunnel | ![]() Area |
![]() Architectural | ![]() High-Bay | ![]() Horticultural |
Model List
Part Number | Output Voltage Range | Output Current Range | Output Power | Efficiency (Typ) | Certification | |
---|---|---|---|---|---|---|
277VAC | 480VAC | |||||
MT320H105AQ_CP | 183-457VDC | 70-1050mA | 320W | 91% | 94% | UL/CUL |
Specification
Input Voltage Range | 249∼ 528Vac |
Frequency | 47∼ 63Hz |
Power Factor | 0.98 (Typ.) at 277Vac, 0.95 (Typ.) at 347Vac, 0.9 (Min.) at 480Vac, with 80%-100% load |
Efficiency | 94% typical, depending on corresponding product |
THD | < 20% when output loading≥80% |
Inrush Current | 75A at 480Vac input 25°C Cold Start (time wide=500uS, measured at 50% Ipeak, Not applicable for the inrush current to Noise Filter for less than 0.2ms) |
Output Current Range when dimming | 6.5%∼ 100% ×Io_max |
Line Regulation | 1% |
Load Regulation | 3% |
Ripple Current Percentage[(PK-AV)/AV] | 10% max (peak to average value) at full load |
Setup, Rise Time | < 0.5s |
Operating Temperature | -40~+50°C(Refer to 'Derating Curve' in series datasheet) |
Maximum case temperature | 90°C |
Humidity | 20~95%RH, non-condensing |
MTBF | 300,000 hours @ full load, 25°C ambient temperature |
Surge Level | L-N:± 4KV, L/N-PE:± 6KV |
Reference Dimension(L×W×H) | 251×90×44.5 mm |
Weight | 1.8kg |
Safety Standard | UL8750, UL1012, CSA C22.2 NO.107.1, EN61347-1, EN61347-2-13 |
Life Time | 5yrs(43800hrs) at Tc 80°C (Refer to'Life Time VS. Tcase (Ref.)' in series datasheet) |
Model Encoding
MCase's material: Metal
TUniversal input: 249~528VAC
320Driver's output power: 320W
HDriver's series name
xxxDriver's rated output current: x10mA
A1 output channel
QDriver's type: constant current driver
CPProgrammable driver
Compare | Item | Price (USD) |
Buy Now |
---|---|---|---|
|
MT320H105AQ1_CP | $75.00 |
Added to Your Shopping Cart
|

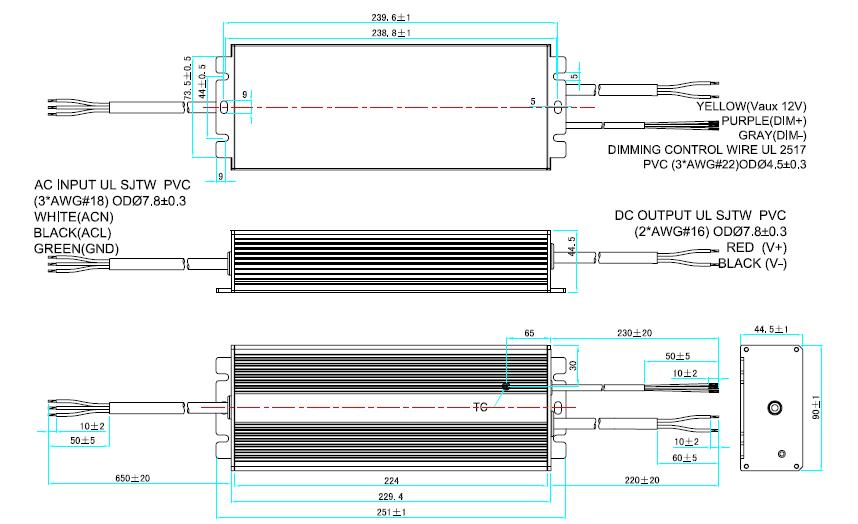

Dimensions


Title | Type | Size(KB) | Download |
---|---|---|---|
MT320HxxxAQ_CP 2D Drawing.pdf | 124 |
Title | Type | Size(KB) | Download |
---|---|---|---|
MT320HxxxAQ_CP 3D Model.step | STEP | 3512 |
Title | Type | Size(KB) | Download |
---|---|---|---|
MT320H105AQ1_CP Specification.pdf | 419 | ||
MT320HxxxAQ_CP Specification.pdf | 502 | ||
MT320H1330AQ_CP Specification.pdf | 938 |
Title | Type | Size(KB) | Download |
---|---|---|---|
MOONS' LED Driver Catalogue | 18227 |
Title | Type | Size(KB) | Download |
---|---|---|---|
MSSL200 Programmable Driver Configurator Software_V2.10 | RAR | 4178 |
