    iPOS line of intelligent drives is based on a new design concept that has resulted in cost-effective, compact, modular solutions to the position, speed and torque control of rotary or linear Brushless, DC brush, Slotless, Servo and Step motors. Using TML (Technosoft's motion programming language), you can build complex motion applications locally, on each drive, leaving only the high level of motion application on the EtherCAT or CANopen master, and thus reducing the network master's complexity.
    ● "ONE FOR ALL" Fully Digital Drives with Embedded Controller.
    ● For Brushless, DC Brush, Slotless, Servo and 2/3 Phase Step motors.
    ● Compact Design
    ● Support RS-232, CAN-Bus or CANopen Programmable.
    Brand Name: Technosoft

    * Free shipping to North America and most of Europe for orders of $100 or more
    * From May. 1 - May. 5, Online Orders Shipping will be postponed during Labour Day and resume on the first working day – May. 6. Thanks for your patience!

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Your Benefits

  • Applications

  • Single-Axis iPOS Line

  • Multi-Axis iPOS Line

  • Recommended Motors and Drives Kit

    • Your Benefits

    Ethernet Compact and cost effective intelligent drives
    • All in one: controller and drive in one unit
    • One for all: same drive for DC, step, brushless or linear motors
    • Distributed intelligence with :
    CANopen CANopen EtherCAT EtherCAT
    TMLCAN TMLCAN Ethernet Ethernet
    • Advanced digital motion control with MotionChip™ DSP technology :
      -PVT, S-curves, electronic camming, 3D motion commands
    • Easy implementation with various motion libraries for PC / PLC
    • Graphical programming with EasyMotion Studio
    ↑ Top

    Applications

    Industrial Equipment   Instrumentation & Optics   Research Laboratories
    Industrial Equipment

    Instrumentation & Optics

    Research Laboratories
    • Elevators
    • Elevator doors
    • Solar cells    		 • Hydraulic pumps
    • Solar trackers
    • Photovoltaic panels    		   • Digital microscopes
    • Photometry
    • Aerial view cameras    		 • Laser measuring systems
    • Lens shaping and polishing
    • Auto focus & auto zooming    		   • Analysis equipment
    • Pipetting
    • Laboratory automation
    Robotics   Semiconductor Equipment   Packaging
    Robotics

    Semiconductor Equipment

    Packaging
    • Robots and cobots
    • Exoskeletons
    • Grippers    		 • Automated guided vehicles (AGVs)
    • Warehouse automation    		   • Flexible automation
    • Atomic layer etching    		 • Trim and form
    • Pick and place handler    		   • Bottling machines
    • Labeling machines
    • Gluing machines    		 • Package printing
    • Material dosing
    Medical   Factory Automation
    Medical

    Factory Automation

    • Biomechatronics
    • Centrifugal pumps
    • Clinical Diagnosis
    • Dosing machines
    • X-Ray equipment    		 • Ophthamology equipment
    • Liquid Handling System
    • Respiratory devices
    • Surgical instruments & robots    		   • Bonding systems
    • Laser cutting
    • Laser marking
    • Printing equipment    		 • Wafer inspection
    • Pick and place robots
    • Welding robots
    • Cartesian robots
    ↑ Top

    The following iPOS series Single-Axis Motor Drive for your choice

    iPO2401 MX CAN/CAT
    iPO2401 MX CAN/CAT
    Intelligent Servo Drives    		24 V, 0.9 A
    25 W
    • Suitable for rotary, linear brushless, DC brush and step motors
    • 12-24 V power supply (motor and logic)
    • 0.9 A continuous, 0.9 A peak current
    • 5 Digital inputs, 3 digital outputs and 2analog inputs
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • EtherCAT extension with CoE protocol
    • Size: 47 × 19 × 8 mm (CAN model) / 50 × 20 × 15 mm (CAT model)
    CANopen TMLCAN EtherCAT
    ↑ Top
    iPOS3602 VX / iPOS3602 MX
    iPOS3602 VX / iPOS3602 MX
    Intelligent Servo Drives    		36 V, 2 A
    75 W
    • Suitable for rotary, linear brushless, DC brush and step motors
    • 12-36 V power supply (motor and logic)
    • 2 A continuous, 3.2 A peak current
    • Digital inputs (5), digital outputs (4 VX model / 3 MX model) and analog inputs (2 VX model / 1 MX model)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • Optional EtherCAT extension with CoE protocol
    • Mounting: vertical (VX model), horizontal (MX model)
    • Size: 56 × 29 × 7 mm (VX model) / 55 × 26 × 13 mm (MX model)
    CANopen TMLCAN EtherCAT Ethernet
    ↑ Top
    iPOS3604 VX / iPOS3604 MX
    iPOS3604 VX / iPOS3604 MX
    Intelligent Servo Drives    		36 V, 4 A
    144 W
    • Suitable for rotary, linear brushless, DC brush and step motors
    • 12-36 V power supply (motor and logic)
    • 4 A continuous,10 A peak current
    • Digital inputs (5), digital outputs (4 VX model / 3 MX model) and analog inputs (2 VX model / 1 MX model)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • Optional EtherCAT extension with CoE protocol
    • Mounting: vertical (VX model), horizontal (MX model)
    • Size: 56 × 29 × 7 mm (VX model) / 55 × 26 × 13 mm (MX model)
    CANopen TMLCAN EtherCAT Ethernet
    ↑ Top
    iPOS3602 BX / HX
    iPOS3602 BX / HX
    Intelligent Servo Drives    		36 V, 2 A
    75 W
    • Suitable for rotary, linear brushless, DC brush and step motors
    • 12-36 V single power supply
    • Continuous current: 2 A
    • Peak current: 3.2 A
    • Digital inputs (5) / outputs (4) and analog inputs (2)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • Size: 80 × 55 × 16 mm (BX model) / 73 × 45 × 16 mm (HX model)
    CANopen TMLCAN
    ↑ Top
    iPOS3604 BX / HX
    iPOS3604 BX / HX
    Intelligent Servo Drives    		36 V, 4 A
    144 W
    • Suitable for rotary, linear brushless, DC brush and step motors
    • 12-36 V single power supply
    • Continuous current: 4 A
    • Peak current: 10 A
    • Digital inputs (5) / outputs (4) and analog inputs (2)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • Size: 80 × 55 × 16 mm (BX model) / 73 × 45 × 16 mm (HX model)
    CANopen TMLCAN
    ↑ Top
    iPOS4808 VX / iPOS4808 MY
    iPOS4808 VX / iPOS4808 MY
    Intelligent Servo Drives    		48 V, 8 A
    400 W
    • Suitable for DC brushed, brushless, step or linear motors
    • 12-48 V motor power supply, 12-36 V logic supply
    • 8 A continuous, 20 A peak current
    • Digital inputs (8) / outputs (6 VX model / 6 MY model) and analog inputs (2)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • Optional feedback extension for: SSI and BiSS encoders
    • RS-232 and CAN (TMLCAN and CANopen protocols)
    • Optional EtherCAT extension with CoE protocol
    • Mounting: vertical (VX model), horizontal (MY model)
    • Size: 56 × 44 × 7 mm (VX model) / 60 × 44 × 12 (MY model)
    CANopen TMLCAN EtherCAT
    ↑ Top
    iPOS4808 BX CAN / CAT
    iPOS4808 BX CAN / CAT
    Intelligent Servo Drive    		48 V, 8 A
    400 W
    • Suitable for DC brushed, brushless, step or linear motors
    • 12-48 V motor power supply, 12-36 V logic supply
    • 8 A continuous, 20 A peak current
    • Digital inputs (6) / outputs (5) and analog inputs (2)
    • High resolution stepper control up to 512 microsteps / step
    • Quadrature and Sin / Cos encoders, Hall sensors or linear Halls
    • Dual Feedback and absolute encoder support (SSI and BISS)
    • RS-232, CAN (TMLCAN and CANopen protocols) and EtherCAT extension with CoE protocol
    • Size: 89 × 77 × 17 mm (CAN) / 103 × 71 × 17 mm (CAT)
    CANopen TMLCAN EtherCAT
    ↑ Top

    In the meanwhile, iPOS series have Multi-Axis Motor Drive, using one drive unit to finish multi-axis motion control

    iPOS4808 SY
    iPOS4808 SY
    Multi-axis Motion System    		12-50 V
    4 x 400 W
    • Up to 4 axis motion system based on iPOS4808 MY
    • For brushless, DC brushed or step motors
    • 12-50V motor supply, 12-36V logic supply
    • Each axis supports 8A continuous, 20A peak current
    • EtherCAT communication bus supporting full CoE protocol
    • RS232 for setup
    • Size: 96 × 100 × 74 mm
    TMLCAN EtherCAT
    ↑ Top
    iPOS360x SX/SY
    iPOS360x SX/SY
    Multi-axis Motion System    		12-36 V
    4/6 x 144 W
    • Suitable for DC brushed, brushless, step or linear motors
    • Can be supplied from1 to 6 axis of any combination of iPOS3602 and iPOS3604
    • iPSO360x SX systems with up to 4 axis for RS232, TMLCAN, CANopen or Ethernet
    • iPSO360x SY systems with up to 6 axis for RS232, TMLCAN, CANopen or EtherCAT
    • 12-36 V power supply (motor and logic separately)
    • 2A continuous / 3.3A peak, respectively 4A continuous / 10A peak per axis
    • Size: 100 × 98 × 36 mm (4x) / 160 × 122 × 36 mm (6x)
    CANopen TMLCAN EtherCAT Ethernet
    ↑ Top

    Recommended Motors and Drives Kit

    Motor Part Number Drive Selection Alternative Selection
    HB PTX05 1330-13-01 iPOS2401 iPOS3602
    HB 14H030H iPOS2401 iPOS3602
    HB MS08HY1P4021 iPOS2401 iPOS3602
    HB MS08HY1P4050 iPOS2401 iPOS3602
    HB MS08HY1P4070 iPOS2401 iPOS3602
    HB MS08HY1P4100 iPOS2401 iPOS3602
    HB MS08HY3P4027 iPOS2401 iPOS3602
    HB MS08HY3P4045 iPOS2401 iPOS3602
    HB MS08HY3P4065 iPOS2401 iPOS3602
    HB MS08HY3P4090 iPOS2401 iPOS3602
    HB MS08HY5P4028 iPOS2401 iPOS3602
    HB MS08HY5P4040 iPOS2401 iPOS3602
    HB MS08HY5P4060 iPOS2401 iPOS3602
    HB MS08HY5P4090 iPOS2401 iPOS3602

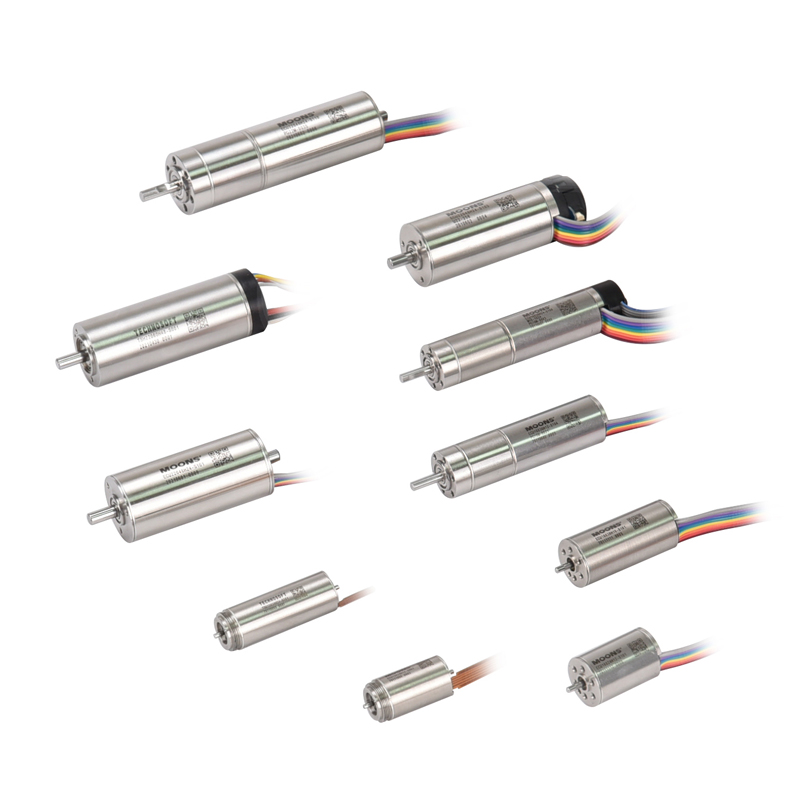

    Slotless ECU13026H06 iPOS3602 iPOS3604
    Slotless ECU13026H09 iPOS3602 iPOS3604
    Slotless ECU13026H12 iPOS3602
    Slotless ECU13026H18 iPOS3602 iPOS2401
    Slotless ECU13026H24 iPOS2401 iPOS3602
    Slotless ECU13038H06 iPOS3604
    Slotless ECU13038H09 iPOS3604
    Slotless ECU13038H12 iPOS3604
    Slotless ECU13038H18 iPOS3604
    Slotless ECU13038H24 iPOS3602
    Slotless ECU13038H36 iPOS3602
    Slotless ECU16036H09 iPOS3604
    Slotless ECU16036H12 iPOS3604
    Slotless ECU16036H18 iPOS3602 iPOS3604
    Slotless ECU16036H24 iPOS3602
    Slotless ECU16036H36 iPOS3602
    Slotless ECU22048H18 iPOS3604 iPOS4808
    Slotless ECU22048H24 iPOS3604 iPOS4808
    Slotless ECU22048H36 iPOS3604 iPOS4808
    Slotless ECU22048H48 iPOS4808
    DC DCU08017P06 iPOS2401 iPOS3602
    DC DCU08017P12 iPOS2401 iPOS3602
    DC DCU10017P03 iPOS2401 iPOS3602
    DC DCU10017P06 iPOS2401 iPOS3602
    DC DCU10025P03 iPOS2401 iPOS3602
    DC DCU10025P06 iPOS2401 iPOS3602
    DC DCU10025P12 iPOS2401 iPOS3602
    DC DCU13020P03 iPOS2401 iPOS3602
    DC DCU13020P06 iPOS2401 iPOS3602
    DC DCU13020P09 iPOS2401 iPOS3602
    DC DCU13020P12 iPOS2401 iPOS3602
    DC DCU13020P15 iPOS2401 iPOS3602
    DC DCU13028P06 iPOS3602 iPOS2401
    DC DCU13028P12 iPOS2401 iPOS3602
    DC DCU13028P15 iPOS2401 iPOS3602
    DC DCU13028P18 iPOS2401 iPOS3602
    DC DCU13028P24 iPOS2401 iPOS3602
    DC DCU16025P06 iPOS2401 iPOS3602
    DC DCU16025P12 iPOS2401 iPOS3602
    DC DCU16025P24 iPOS2401 iPOS3602
    DC DCU16035P12 iPOS2401 iPOS3602
    DC DCU16035P24 iPOS2401 iPOS3602
    DC DCU17025P06 iPOS3602
    DC DCU17025P12 iPOS3602 iPOS2401
    DC DCU17025P18 iPOS2401 iPOS3602
    DC DCU17025P24 iPOS2401 iPOS3602
    DC DCU17035P12 iPOS3602
    DC DCU17035P18 iPOS3602
    DC DCU17035P24 iPOS3602
    DC DCU17035P36 iPOS3602
    PM 20PM020S0-01002 iPOS2401 IPOS3602
    PM 20PM020S0-02501 iPOS2401 IPOS3602
    PM 20PM020L6-00702 iPOS2401 IPOS3602
    PM 20PM020L6-02101 iPOS2401 IPOS3602
    BLDC BLR16024H09-S001 iPOS3602
    BLDC R22BLB9L2 iPOS2401 iPOS3602
    BLDC R22BLB7L2 iPOS2401 iPOS3602
    ↑ Top

    Compare Item Price
    (USD)
    iPOS3604 HX-CAN
    iPOS2401 MX-CAN
    Downloads
    User Manual
    Specifications
    Title Type Size（KB） Download
    iPOS3604 HX-CAN Date Sheet.pdf PDF 274
    iPOS2401 MX-CAN Date Sheet.pdf PDF 190
    Software
       Delivery & Packaging



    Delivery & Packaging

    Logistics tracking

    Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

    Professional Product Label

    Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

    Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

    Note: This label design is suitable for products of stepper motor.

    (Professional packing box and unique appearance design)

    (Single item packed with EPE)

    (Multi-products packed with another box)

    Safely Packaging

    In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
    Besides，the package is made from recyclable materials, providing you with professional safety delivery.
    Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

    Shipping Visualization

    For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

    (Product in the box)

    (Add the invoice)

    (Label the commodity)

    (The logistics waybill attached)

    Fast Delivery

    Fast Cross-Border Delivery
    MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
    Estimated Delivery Time: e.g. China-USA major cities 3 business days.

    Professional
    Warehouse Management

    MOONS’ has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
