ID BLS Series Brushless DC Servo Drives
Input voltage: 24-48VDC, supports external analog speed control, switch input multi-segment speed control, and communication command speed control. It supports three-loop control of speed, position, and current. The EMC electromagnetic compatibility reaches medical-grade levels, achieving low temperature rise, low noise, low vibration, low positioning torque, and three times the overload torque output.
● Medical grade EMC compatible
● Support dynamic braking function
● Speed control range up to 1-4000r/min
● Speed change rate (with load) is ± 0.08%
● Supports multiple bus controls such as RS-485, CANopen, and Profinet
● Set speed through external analog or digital signals
● Overload limit output torque protection function
● Small size, compact structure
● Support dynamic braking function
● Speed control range up to 1-4000r/min
● Speed change rate (with load) is ± 0.08%
● Supports multiple bus controls such as RS-485, CANopen, and Profinet
● Set speed through external analog or digital signals
● Overload limit output torque protection function
● Small size, compact structure
Brand Name: MOONS'
Payment Methods
Buyer Protection:
Free Exchange
■ Features
High speed stability
The speed variation rate reaches ±0.08%. Even if the load size changes, the motor can run stably at the set speed.

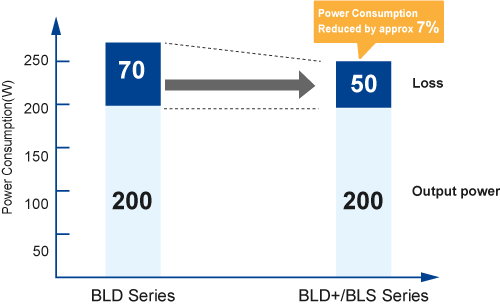

Low loss design
Compared with the previous generation, the loss is reduced by 28% and the power consumption is reduced by 7%.

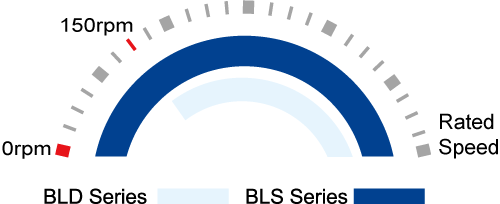

Wide speed control range
Equipped with a high-resolution encoder, it can operate stably at speeds as low as 1 rpm, achieving smoother start and stop control.

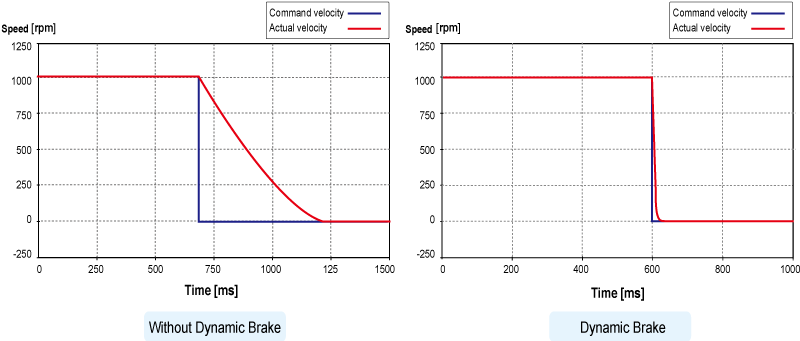

Dynamic braking function
Dynamic braking short-circuits the three phases of the motor in an emergency, causing the motor to stop rotating quickly to protect equipment and personal safety.

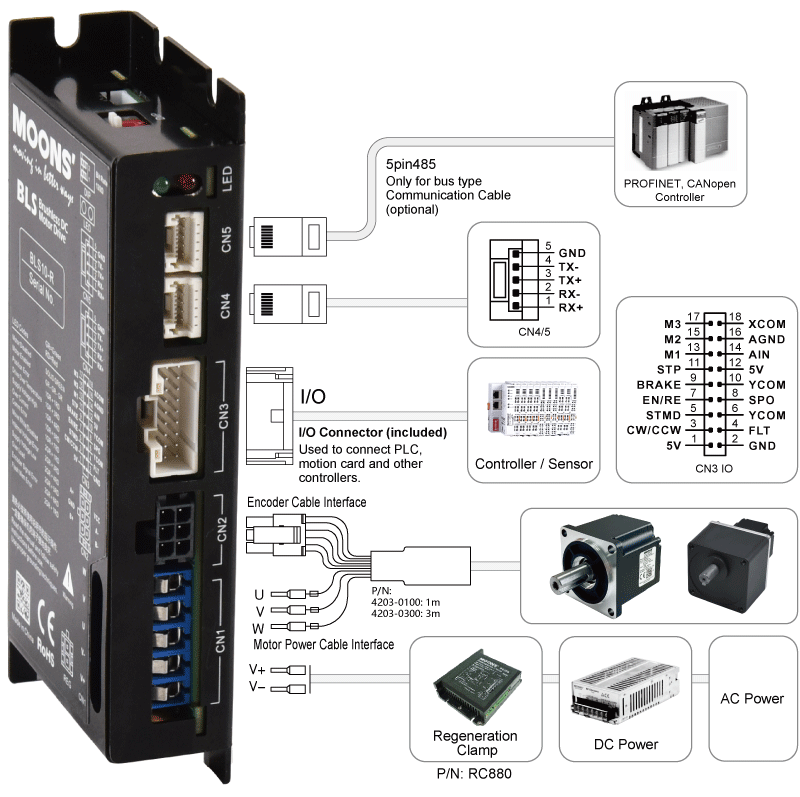

■ System Configuration

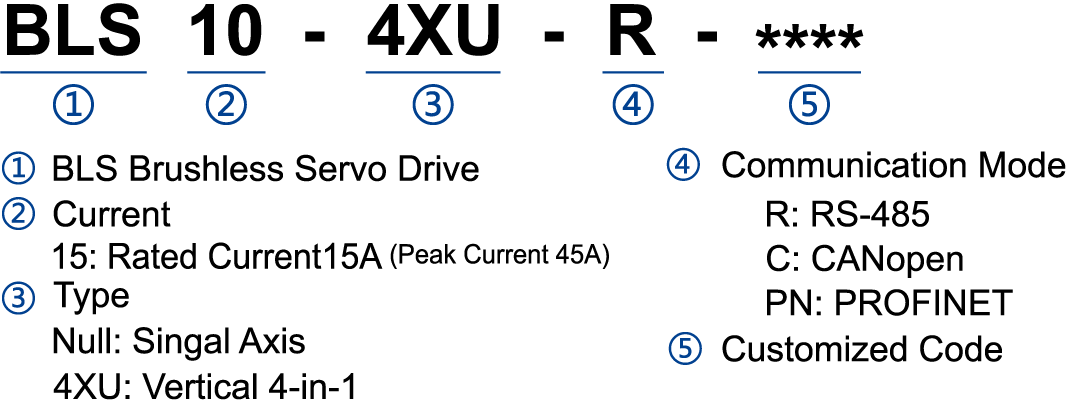

■ Drive Part Numbering

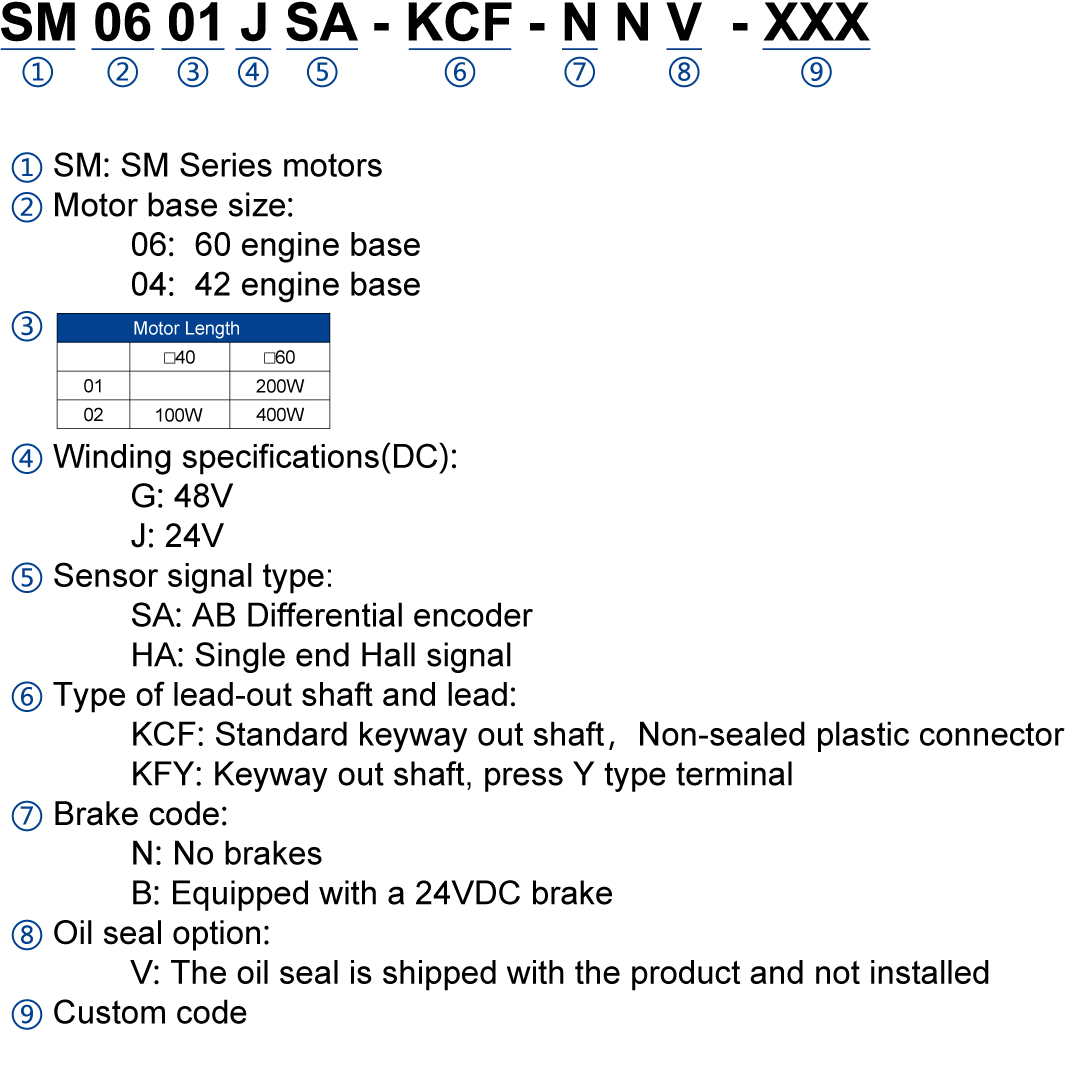

■ Motor Part Numbering
■ Product Specifications
□ Electrical Specifications
| Product model | BLS10-R |
|---|---|
| Structure size(mm) | 118*56*23 |
| Continuous output A(rms) | 15A |
| Maximum output current A (rms) | 45A |
| Main circuit power supply | 24~48VDC |
| Typical power supply voltage | 24VDC or 48VDC |
| Insulation voltage | Primary to ground: withstand voltage 500VDC, 1 min |
| Cooling method | Natural cooling |
□ General specifications
| Usage Environment | Temperature | Ambient temperature: 0°C ~ 55°C (If the ambient temperature of servo drive is higher than 45°C, please install the drive in a well-ventilated location) Storage temperature: -20°C ~ 70°C | |
|---|---|---|---|
| Humidity | Both operating and storage : 10 ~ 85%RH or less | ||
| Altitude | Below 1000m, if above 1000m, the rating should be reduced The derating if used at an altitude of 1000m ~ 2000m for every 100m increase in use is 1% | ||
| Vibration | 9.8m/s2or less, 10 ~ 60Hz (Do not use continuously at resonance frequency) | ||
| I/O | Digital Signal | Input | 7 digital signal inputs: Opto-isolated, single-ended input, supports NPN and PNP connections, 5~24 VDC, minimum pulse width 50μs, maximum pulse frequency 5kHz |
| Output | 3 digital signal outputs: Optoelectronic isolation, open collector, maximum withstand voltage 30V, maximum current 100mA, maximum pulse frequency 1kHz | ||
| Analog Signal | Input | 1 Analog input, 0～10V, 12bit | |
| Communication Port | RS-485 | Modbus/RTU protocol communication (supported by -R series) | |
| Status Indicator | Red, Green LED | ||
| Protection | Overcurrent, overvoltage, undervoltage, overtemperature, overload, speed limit, emergency stop, communication abnormality, power reverse protection, phase loss protection, save failure | ||
| Compare | Item | Price (USD) |
|---|---|---|
|
|
BLS10-R |
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| BLS10_R 2D.pdf | 66 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| BLS10_R 3D.stp | STEP | 4078 |
Brochure
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| BLS Series Brushless DC Servo_DM_EN20250519_A1.pdf | 8823 |
User Manual
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| BLS10-R+HardwareManual-EN20250503.PDF | 1486 |
Certification
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| CE Certificate FOR BLD&BLS.PDF | 1654 |
