ID AKM Series Step-Servo Motors
The AKM Step-Servo motor features a battery-free multi-turn absolute encoder, available in 28mm, 42mm, and 60mm frame sizes. Designed for versatile applications, it is offered in both brake and non-brake configurations to meet diverse needs. When paired with the AK series drives, the AKM ensures precise positioning, smooth operation, and reliable motion control for demanding industrial environments.
● High-precision battery-less multi-turn absolute encoder
● Compatible with AK series stepper servo drives
● High-speed operation with high torque output
● Low vibration, low noise, and low heat generation
● Compatible with AK series stepper servo drives
● High-speed operation with high torque output
● Low vibration, low noise, and low heat generation
Brand Name: MOONS'
Payment Methods
Buyer Protection:
Free Exchange
■ Motor Specification
| Model | Drive | Torque | Encoder | Speed | Frame size |
Permissible Overhung Load(N) Distance(L) from Shaft End(mm) |
Permissible Thrust Load(N) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| N·m | Pulse/r | rpm | mm | 0 | 5 | 10 | 15 | 20 | |||
| AKM111 □ BA | AK06- ◇ | 0.06 | 10000 | 3600 | 28 | 20 | 25 | 34 | 52 | - | Less than the motor mass |
| AKM113 □ BA | 0.12 | 28 | 20 | 25 | 34 | 52 | - | ||||
| AKM114 □ BA | 0.19 | 28 | 20 | 25 | 34 | 52 | - | ||||
| AKM171 □ BA | 0.25 | 42 | 35 | 44 | 58 | 85 | - | ||||
| AKM172 □ BA | 0.38 | 42 | 35 | 44 | 58 | 85 | - | ||||
| AKM173 □ BA | 0.51 | 42 | 35 | 44 | 58 | 85 | - | ||||
| AKM174 □ BA | 0.62 | 42 | 35 | 44 | 58 | 85 | - | ||||

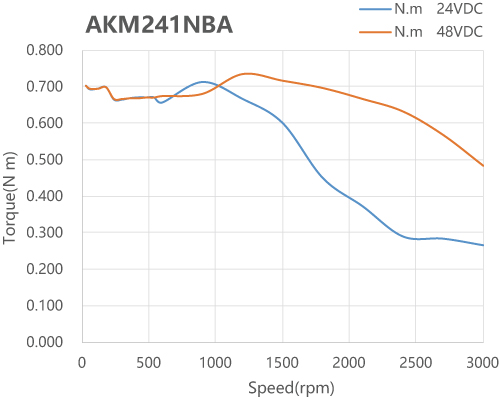

| AKM241 □ BA | 0.7 | 60 | 90 | 100 | 130 | 180 | 270 | ||||
| AKM242 □ BA | 1.2 | 60 | 90 | 100 | 130 | 180 | 270 | ||||
| AKM243 □ BA | 2.33 | 60 | 90 | 100 | 130 | 180 | 270 | ||||
Note:
□ Indicates whether it comes with a brake.
◇ Indicates the drive communication method.
□ Indicates whether it comes with a brake.
◇ Indicates the drive communication method.

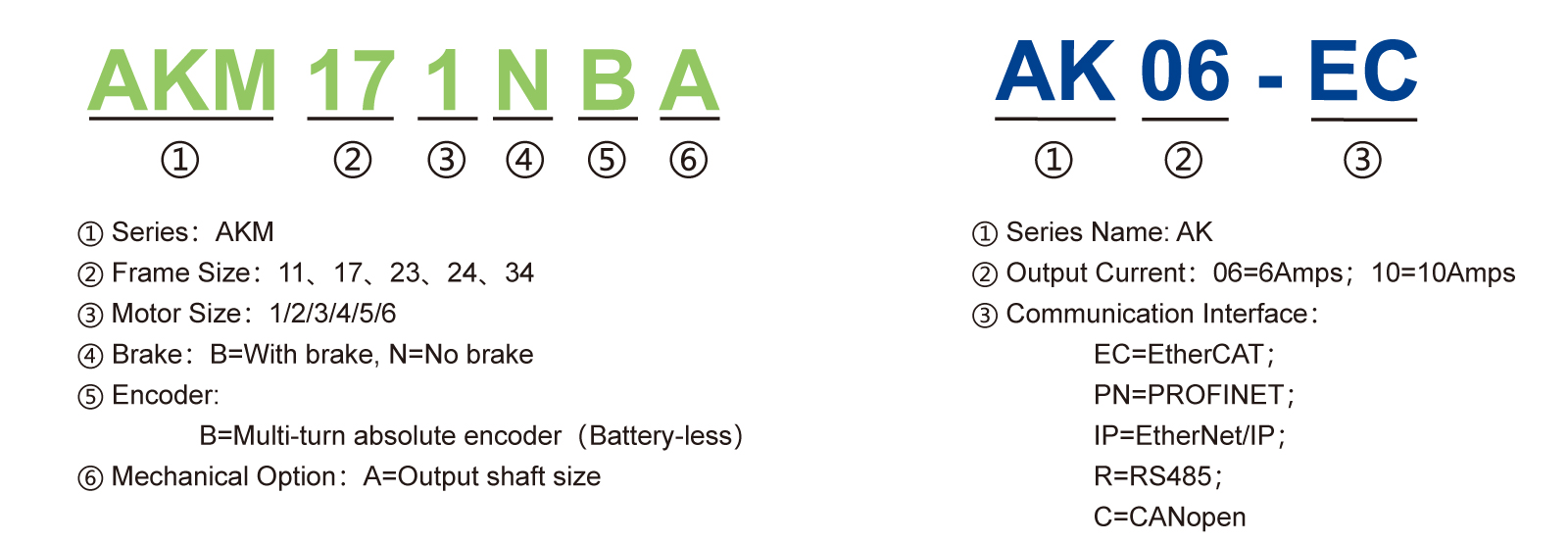

■ Numbering System
□ AKM11 Series
□ AKM17 Series
□ AKM24 Series
■ Motor Dimensions（Unit：mm）
□ AM11 Series
| Model | L |
|---|---|
| AKM111NBA | 60.4 |
| AKM113NBA | 80.7 |
| AKM114NBA | 90.5 |
□ AM17 Series
| Model | L |
|---|---|
| AKM171NBA | 76.6 |
| AKM172NBA | 82.1 |
| AKM173NBA | 90.6 |
| AKM174NBA | 105.1 |
□ AM17 Series with brake
| Model | L |
|---|---|
| AKM171BBA | 101.1 |
| AKM172BBA | 107.1 |
| AKM173BBA | 115.1 |
| AKM174BBA | 124.1 |
□ AM24 Series
| Model | L |
|---|---|
| AKM241NBA | 79 |
| AKM242NBA | 89 |
| AKM243NBA | 120 |
□ AM24 Series with brake
| Model | L |
|---|---|
| AKM241BBA | 116 |
| AKM242BBA | 126 |
| AKM243BBA | 157 |
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| AKM242NBA 2D.pdf | 485 | ||
| AKM173NBA 2D.pdf | 483 | ||
| AKM171BBA 2D.pdf | 1269 | ||
| AKM113NBA 2D.pdf | 1027 | ||
| AKM241BBA 2D.pdf | 1282 | ||
| AKM111NBA 2D.pdf | 1021 | ||
| AKM243NBA 2D.pdf | 480 | ||
| AKM171NBA 2D.pdf | 479 | ||
| AKM242BBA 2D.pdf | 1276 | ||
| AKM174BBA 2D.pdf | 1260 | ||
| AKM174NBA 2D.pdf | 478 | ||
| AKM172BBA 2D.pdf | 1255 | ||
| AKM241NBA 2D.pdf | 485 | ||
| AKM243BBA 2D.pdf | 1281 | ||
| AKM173BBA 2D.pdf | 1253 | ||
| AKM172NBA 2D.pdf | 480 | ||
| AKM114NBA 2D.pdf | 1019 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| AKM173NBA 3D.stp | STEP | 3922 | |
| AKM174NBA 3D.stp | STEP | 3920 | |
| AKM173BBA 3D.stp | STEP | 8488 | |
| AKM174BBA 3D.stp | STEP | 8460 | |
| AKM111NBA 3D.stp | STEP | 6375 | |
| AKM241BBA 3D.stp | STEP | 6124 | |
| AKM242NBA 3D.stp | STEP | 3358 | |
| AKM114NBA 3D.stp | STEP | 6375 | |
| AKM171BBA 3D.stp | STEP | 8460 | |
| AKM243BBA 3D.stp | STEP | 10114 | |
| AKM243NBA 3D.stp | STEP | 4079 | |
| AKM172NBA 3D.stp | STEP | 3918 | |
| AKM113NBA 3D.stp | STEP | 6386 | |
| AKM242BBA 3D.stp | STEP | 6123 | |
| AKM172BBA 3D.stp | STEP | 8461 | |
| AKM241NBA 3D.stp | STEP | 3357 | |
| AKM171NBA 3D.stp | STEP | 3918 |
Brochure
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| AK Family Brochure_EN20251224_A1.pdf | 3492 |
Certification
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| AW Series Stepper Motor & RS,SS,AK Series Step-Servo Motor UL Certification.pdf | 397 |
