The Difference between DALI Device Type 8 and Type 6 Applications by MOONS'




What is the Difference between DALI Device Type 8 and Type 6 ?

1. DALI History

Digital Addressable Lighting Interface (DALI) is a protocol for digital lighting control that enables the easy installation of robust, scalable and flexible lighting networks. Today DALI is the most common used digital protocol for light. And DALI protocol is maintained by Digital Illumination Interface Alliance (DiiA), a global consortium of lighting companies that aims to grow the market for lighting-control solutions based on DALI technology.
DALI was originally developed to allow digital control, configuration and querying of fluorescent ballasts, replacing the simple, one-way, broadcast-like application of 0/1-10V dimming. With DALI, the broadcast option is also available; in addition, with simple configuration, each DALI device can be assigned a separate address, allowing digital control of individual devices.
DALI features with a two-way communication with the luminaire. You can determine whether the tubes are working correctly, and at what lighting intensity level they are. The DALI protocol has been expanded several times since the beginning and each new device has been given a new number (Device Type X = DTX). Latest important updates are Emergency light (DT1), LED (DT6) and RGB/Tunable white control (DT8).The figure 1 show the components of IEC 62386 standard.

Fig.1 IEC 62386 Standard

2. The Difference between DALI Type 8 and Type 6

For DT6 driver, single address single channel. This type driver use one address to dim the color temperature and another address to dim the intensity, supporting DALI 102, DALI 207 protocol. As for DT8 drivers, single address multipath channels. Those drivers use one address to achieve tunable white application. It’s compatible with DT6 and support DALI 209 protocol.

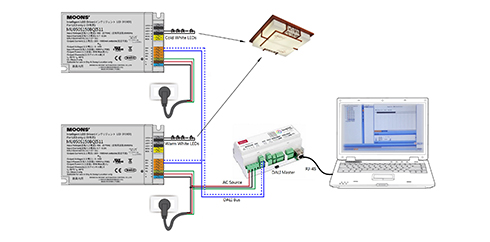

Fig.2 DALI DT6 Wire Connecting

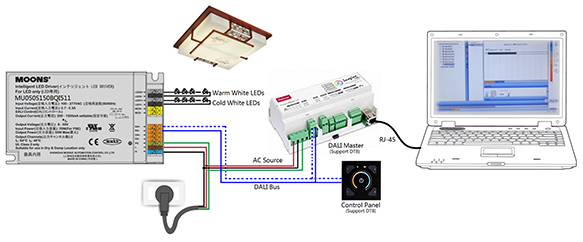

Fig.3 DALI DT8 Wire Connecting

The details about supporting protocol between Type 8 and Type 6 are shown in table below.
LED Driver Type DALI Type 6 DALI Type 8
IEC62386-101
IEC62386-102
IEC62386-207
IEC62386-209 ×
Intensity Control
Color Temperature Control ×
Occupied Address Number Each channels occupies 1 address Dual channels share 1 address

3. Why You Need DALI DT8

DALI Type 8, also known as DALI 209, is a DALI compatible device (device Type 8) which allows a user to change light color, color temperature and intensity to their preference, within the same fixture to achieve tunable white and RGB/W color changing.
DALI Type 8 uses a single DALI short address to control 2 or more outputs on a special DALI Type 8 driver or ballast, reducing the number of both DALI short addresses and DALI drivers needed to provide this color changing capability, saving on cost and complexity.
For Tunable White solution, compared with normal DALI DT6 driver, DALI DT8 driver has lots of advantages.
  • For DT8, only need one DALI address to achieve Tunable White.
  • For DT6, need two DALI addresses to achieve Tunable White.
  • For DT8 Driver, MOONS' design the CCT dimming logic in driver. Users can use standard DALI Master (support DT8) to achieve tunable white conveniently.
  • For DT6, need two DALI addresses to achieve Tunable White.
  • As a result, address is saving, space saving, manpower saving.

    4. MOONS’ is a Member of DiiA

    MOONS’ is one of the associate members of DiiA, and we have official DALI tester, "ProbitLab". For more information you can click official website of DiiA

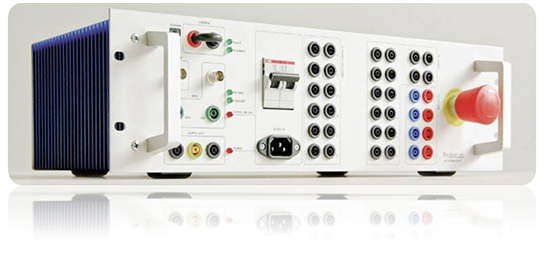

    DALI Tester –ProbitLab

    Fig.4 DALI Tester –ProbitLab

    5. Related Products

    MOONS’ has been involved in the processes of designing, engineering and manufacturing LED light drivers for many years. As a global leading LED driver developer, MOONS' has made and continuous to investment in deep dimming high performance architectural products. We are pleased to introduce the latest designs innovative products. The DALI dual dimmer controlled intelligent, programmable LED drivers provide the smoothest flicker-free high-performance dimming to dark for every fixture. The new "S" series of LED drivers is available in multiform factors to provide a perfect match for your luminaire.

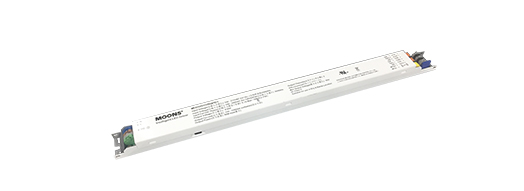

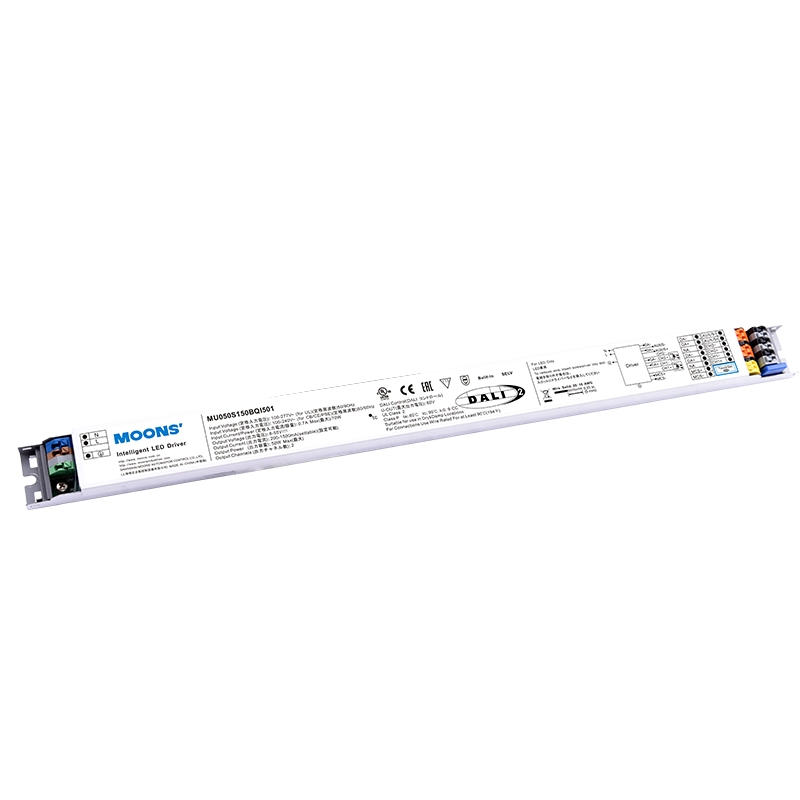

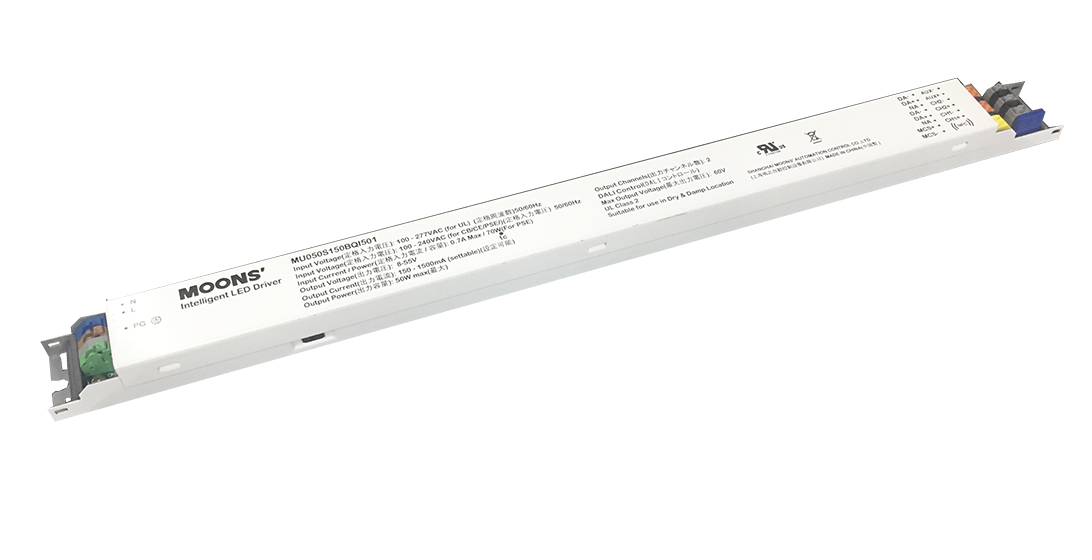

    MU050S150BQI501
    DALI dual dimming
    Flicker-Free dimming
    Dimming range: 0.1%~100%
    Slim

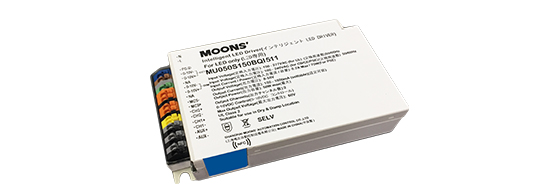

    MU050S150BQI511
    DALI dual dimming
    Flicker-Free dimming
    Dimming range: 0.1%~100%
    Compact
    For more information about MOONS’ DALI lighting drivers please refer to the article “Introduction to MOONS’ DALI LED Driver”.
