When space is tight, performance doesn't have to take a back seat. MOONS' presents the new ECH11017 high-speed brushless slotless motor, combining the motor, gearbox, and encoder in a streamlined design just 28mm long and 11mm in diameter. It delivers precise, stable, and reliable power for demanding applications such as dexterous robotic hands.

1. Precise Dimensions: A Design Philosophy Where Small Details Make a Big Difference

The ECH11017 is designed with optimized dimensions to deliver a more tailored solution for specific applications: Precision Dimensions: The ECH11017 features a compact design and is the shortest slotless motor in MOONS' φ8–φ16 series. The motor body, including the encoder, measures only 17mm in length. When combined with a PG10M gearbox (27:1 gear ratio), the total length is just 28mm, making it an ideal fit for applications with strict space limitations. Optimized for professional applications: This motor is designed for the specific requirements of humanoid robotic hands. It improves flexibility and human-like dexterity in fine operations, enabling movements that closely match the precision and smoothness of human fingers. This compact size makes the ECH11017 a unique solution for precision micro-drive applications.

2. Excellent performance and guaranteed product quality

ECH11017H24-S003&MS11-1024&PG10M-0027 Outstanding Performance: • The motor achieves a no-load speed of 1174 rpm and a rated speed of 710 rpm, delivering smooth high-speed operation. • It delivers a rated torque of 20.4mNm and a stall torque of 66mNm, meeting load requirements across various applications. • It supports an operating temperature range of -40 to +100°C, suitable for a wide range of challenging environments.

3. Flexible Setup, Maximum Performance

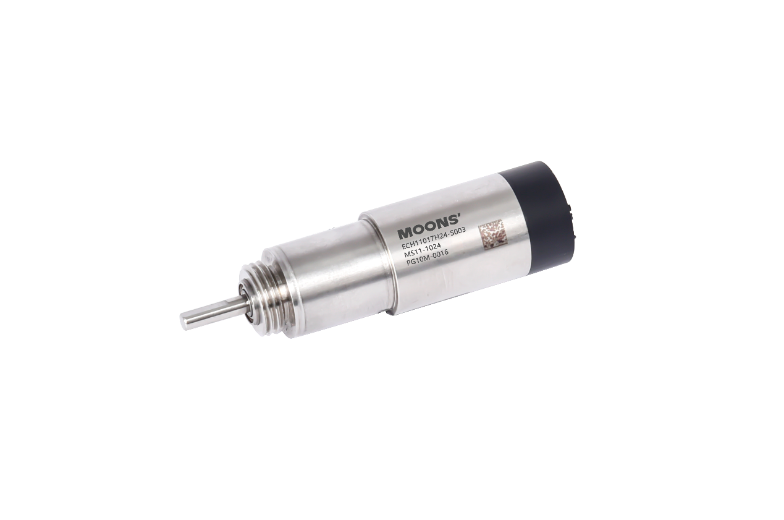

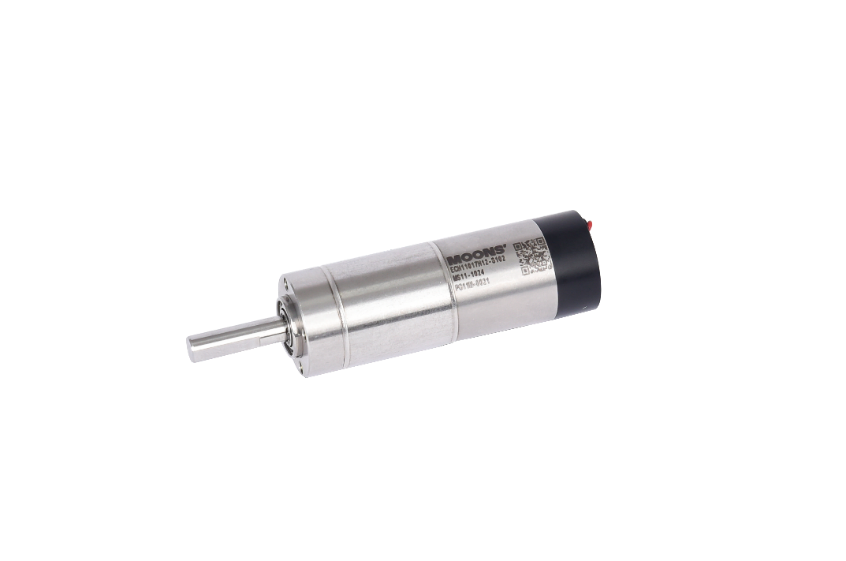

Optional Gearbox Configurations PG10M gearbox: Supports a maximum input speed of 20,000 rpm and a continuous output torque of 0.18 Nm. Paired with the motor at a 27:1 gear ratio, the total unit length is just 28 mm, resulting in an extremely compact design. PG11M gearbox: Delivers up to 16,000 rpm input speed and 0.25 Nm continuous output torque. When combined with the motor (27:1 gear ratio), the complete unit measures about 34 mm, providing greater torque in the same compact footprint. High-Precision Encoder Support Supports the MS11-1024 encoder, a 1024-line incremental magnetic encoder that delivers highly accurate position feedback per revolution, enabling precise and reliable system control.

4. Innovation never stops

As precision equipment places ever-higher demands on power systems, MOONS' is driving in-depth optimization of specific form factors, pushing the industry toward greater specialization and precision. The ECH11017 series embodies this philosophy, showcasing MOONS' technological expertise and its unwavering commitment to continuous improvement.
