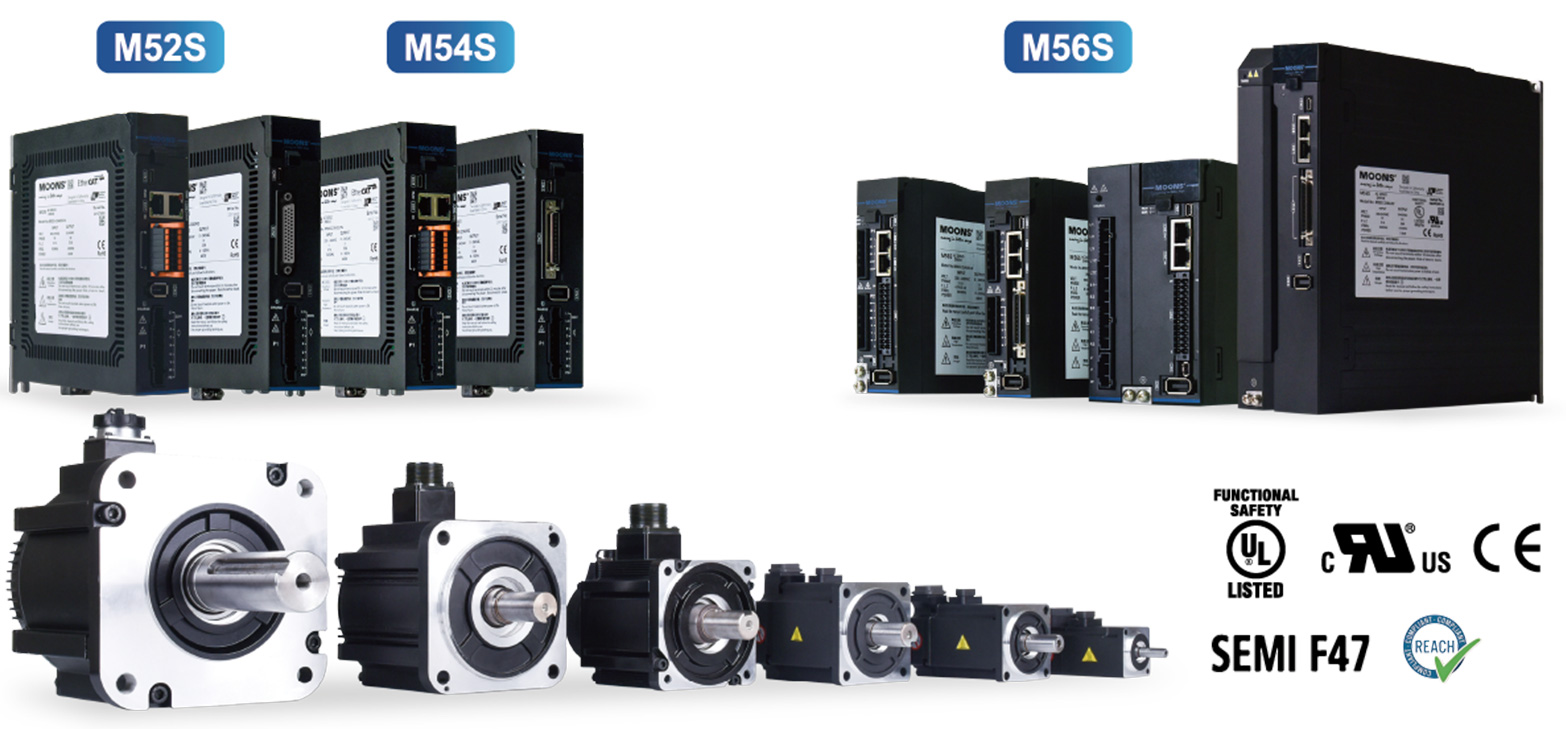

M5 AC Servo System
Superior Performance
| Velocity loop bandwidth up to 3.5kHz, faster command tracking, shorter positioning time | Low cogging torque motor equipped with up to 26-bit multiturn absolute encoder for higher positioning accuracy | Super model tracking control algorithm, position following error close to 0, higher trajectory accuracy | SM3 and SMA series motors meet IP67 protection rating,dust and water resistance, and higher reliability |
Powerful Features
| • Built-in soft PLC--Q programming • Efficient auto-tuning | • External disturbance compensation • Multiple vibration suppression • Built-in dynamic braking function | • Gantry synchronization • Full closed-loop control • Flying vision |
Rich Industrial Bus
 | M56S AC Servo system |  |
| • 220V and 400V AC servo system• Better vibration suppression and external disturbance compensation performance • Power range of 50W to 7.5kW• Supports gantry synchronization full closed-loop control • Velocity loop bandwidth up to 3.5kHz• Built-in dynamic braking and STO safety function • Efficient auto-tuning• CE, UL, STO (SIL 3/ PLe), SEMI F47, REACH certification • Supports EtherCAT, CANopen, Modbus, EtherNet/IP, Profinet field bus | ||
| For detailed product information, please click. | ||
| M54S AC Servo system |  |
| • 220V and 400V AC servo system• Velocity loop bandwidth up to 3.2kHz • Power range of 50W to 3000W• Built-in dynamic braking function • High power density and compact design• Better vibration suppression and external disturbance compensation performance • Efficient auto-tuning• CE, SEMI F47, REACH certification • Supports EtherCAT, Modbus RTU field bus | ||
| For detailed product information, please click. | ||
| M52S AC Servo System |  |
| • 220V AC servo system• Speed loop bandwidth up to 2.8 kHz • Power range of 50W to 1000W• Supports parameter configuration via USB Type-C power only • High power density and compact design• Enhanced vibration suppression and external disturbance compensation • Efficient auto-tuning• CE, SEMI F47, REACH certification • Supports EtherCAT, Modbus RTU field bus | ||
| For detailed product information, please click. | ||
Applications
 |  |  |  |  |  |  |
| SMT Patch | Medical | Lithium Battery | Solar | Machine | Textile Equipment | Industrial Automation |
