ID DCU13020 Coreless Brushed DC Motors
Coreless Brushed DC Motor, Various of Gearboxes and Encoders are available, Small Size, High Torque, High Speed, Ø13mm, 1.7W, 13000rpm, Precious Metal Brushes
● Ironless winding
● Compact design
● Low current consumption
● No cogging
● Linear performance characteristic
● Compact design
● Low current consumption
● No cogging
● Linear performance characteristic
Brand Name: MOONS'
Price:
USD
90.0
-
334.0
EA
Payment Methods
Buyer Protection:
Free Exchange
Specification
| Item | Frame Size (mm) | Length (mm) | Nominal Voltage | Rated Torque (mNm) | Rated Current (A) | Reduction Ratio | Encoder Type | Motor Type |
| DCU13020P06-S001 | Φ13 | 19.7 | 6Vdc | 1.74 | 0.409 | NA | NA | Motor |
| DCU13020P09-S001 | Φ13 | 19.7 | 9Vdc | 1.85 | 0.275 | NA | NA | Motor |
| DCU13020P12-S001 | Φ13 | 19.7 | 12Vdc | 1.1 | 0.14 | NA | NA | Motor |
| DCU13020P12-S002&PG13C-0004 | Φ13 | 39 | 12Vdc | 6.3 | 0.217 | 4 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0016 | Φ13 | 39 | 12Vdc | 22.4 | 0.217 | 16 | NA | Motor + Gearhead |
| DCU13020P06-S002&PG13C-0066 | Φ13 | 42.8 | 6Vdc | 80 | 0.217 | 66 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0066 | Φ13 | 42.8 | 12Vdc | 80 | 0.217 | 66 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0090 | Φ13 | 42.8 | 12Vdc | 107 | 0.217 | 90 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0271 | Φ13 | 46.5 | 12Vdc | 283 | 0.217 | 271 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0315 | Φ13 | 46.5 | 12Vdc | 300 | 0.201 | 315 | NA | Motor + Gearhead |
| DCU13020P12-S002&PG13C-0425 | Φ13 | 46.5 | 12Vdc | 300 | 0.159 | 425 | NA | Motor + Gearhead |
| DCU13020P15-S002&PG13C-0004 | Φ13 | 39 | 15Vdc | 6.2 | 0.166 | 4 | NA | Motor + Gearhead |
| DCU13020P15-S002&PG13C-0016 | Φ13 | 39 | 15Vdc | 23 | 0.18 | 16 | NA | Motor + Gearhead |
| DCU13020P15-S002&PG13C-0066 | Φ13 | 39 | 15Vdc | 87 | 0.184 | 66 | NA | Motor + Gearhead |
| DCU13020P15-S002&PG13C-0271 | Φ13 | 47.3 | 15Vdc | 300 | 0.177 | 271 | NA | Motor + Gearhead |
| DCU13020P12-S005&R13-256&PG13C-0004 | Φ13 | 44.7 | 12Vdc | 6.3 | 0.217 | 4 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S005&R13-256&PG13C-0016 | Φ13 | 44.7 | 12Vdc | 22.4 | 0.217 | 16 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S005&R13-256&PG13C-0066 | Φ13 | 48.45 | 12Vdc | 79.6 | 0.217 | 66 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S005&R13-256&PG13C-0271 | Φ13 | 52.2 | 12Vdc | 283 | 0.217 | 271 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S006&R13-256&PG13C-0090 | Φ13 | 48.45 | 12Vdc | 107.3 | 0.217 | 90 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S006&R13-256&PG13C-0315 | Φ13 | 52.2 | 12Vdc | 382 | 0.21 | 315 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S006&R13-256&PG13C-0425 | Φ13 | 52.2 | 12Vdc | 300 | 0.159 | 425 | 256-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S008&RS13-16&PG13C-0016 | Φ13 | 45.5 | 12Vdc | 22.4 | 0.217 | 16 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S008&RS13-16&PG13C-0066 | Φ13 | 49.3 | 12Vdc | 80 | 0.217 | 66 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S009&RS13-16&PG13C-0090 | Φ13 | 49.3 | 12Vdc | 104 | 0.217 | 90 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S008&RS13-16&PG13C-0271 | Φ13 | 53 | 12Vdc | 283 | 0.217 | 271 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S009&RS13-16&PG13C-0315 | Φ13 | 53 | 12Vdc | 300 | 0.201 | 315 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| DCU13020P12-S009&RS13-16&PG13C-0425 | Φ13 | 53 | 12Vdc | 300 | 0.159 | 425 | 16-line incremental magnetic encoder | Motor + Encoder + Gearhead |
| Compare | Item | Price (USD) |
Buy Now |
|---|---|---|---|
|
|
DCU13020P06-S001 | $90.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P09-S001 | $90.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S001 | $90.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0004 | $143.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0016 | $149.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P06-S002&PG13C-0066 | $155.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0066 | $155.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0090 | $155.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0271 | $165.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0315 | $165.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S002&PG13C-0425 | $165.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P15-S002&PG13C-0004 | $143.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P15-S002&PG13C-0016 | $149.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P15-S002&PG13C-0066 | $155.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P15-S002&PG13C-0271 | $165.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S005&R13-256&PG13C-0004 | $312.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S005&R13-256&PG13C-0016 | $318.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S005&R13-256&PG13C-0066 | $324.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S005&R13-256&PG13C-0271 | $334.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S006&R13-256&PG13C-0090 | $324.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S006&R13-256&PG13C-0315 | $334.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S006&R13-256&PG13C-0425 | $334.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S008&RS13-16&PG13C-0016 | $210.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S008&RS13-16&PG13C-0066 | $216.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S009&RS13-16&PG13C-0090 | $216.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S008&RS13-16&PG13C-0271 | $226.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S009&RS13-16&PG13C-0315 | $226.00 |
Added to Your Shopping Cart
|
|
|
DCU13020P12-S009&RS13-16&PG13C-0425 | $226.00 |
Added to Your Shopping Cart
|

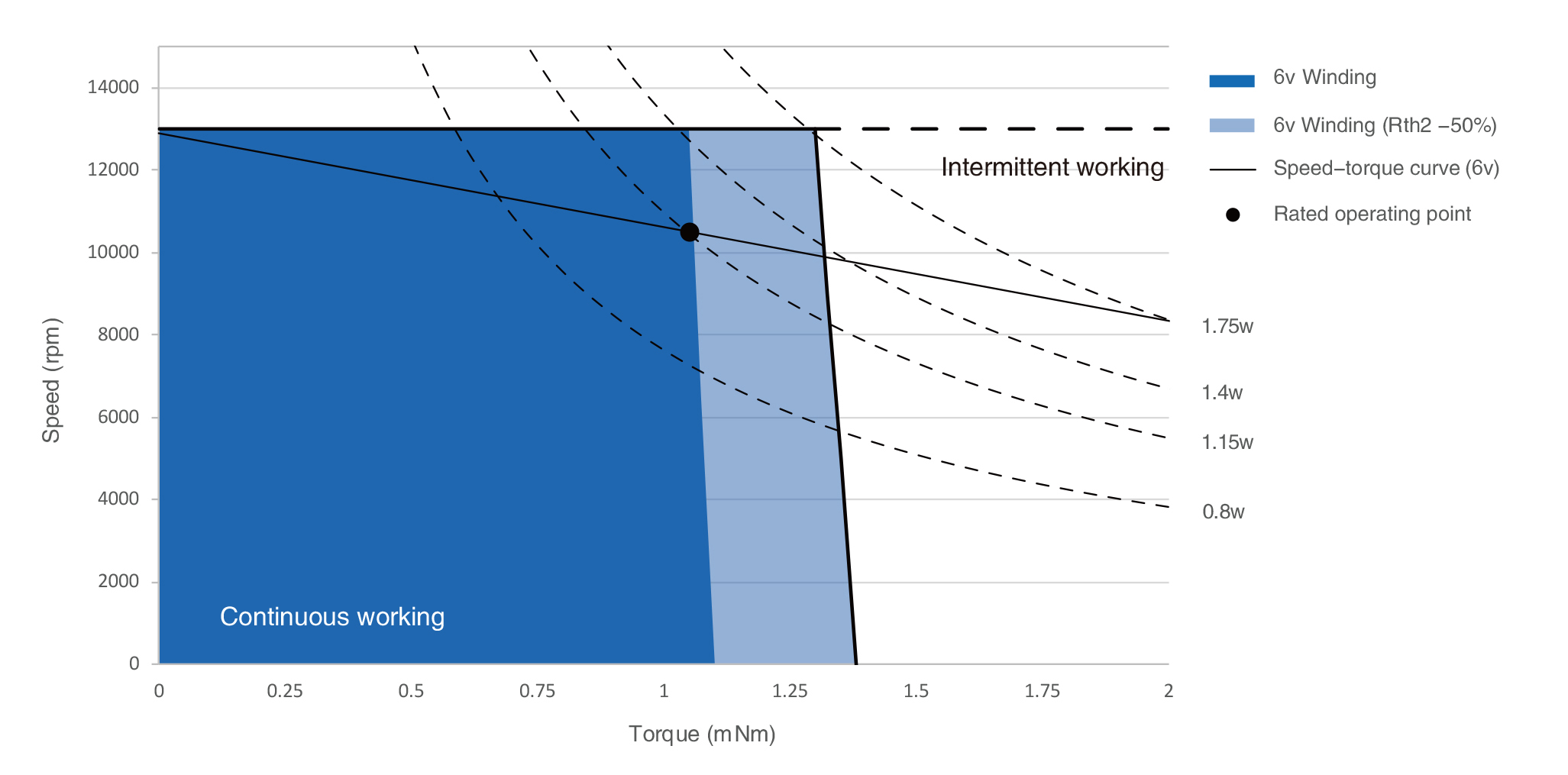

Torque Speed Curves
