    Coreless Brushed DC Motor, Various of Gearboxes and Encoders are available, Small Size, High Torque, High Speed, Ø24mm, 9.5W, 10000rpm, Graphite Brushes
    ● Ironless winding
    ● Compact design
    ● Low current consumption
    ● No cogging
    ● Linear performance characteristic
    Brand Name: MOONS'
    Price: USD  183.0  -  344.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more
    * From May. 1 - May. 5, Online Orders Shipping will be postponed during Labour Day and resume on the first working day – May. 6. Thanks for your patience!

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
    Data Sheet

    Specification

    Item Frame Size (mm) Length (mm) Nominal Voltage Rated Torque (mNm) Rated Current (A) Reduction Ratio Encoder Type Motor Type
    DCU24032G12-S101 Φ24 30.8 12Vdc 10.45 0.93 NA NA Motor
    DCU24032G24-S101 Φ24 30.8 24Vdc 11.84 0.52 NA NA Motor
    DCU24032G12-S103&PG22C-0107 Φ24 59.1 12Vdc 600 0.873 107 NA Motor + Gearhead
    DCU24032G24-S103&PG22C-0107 Φ24 59.1 24Vdc 800 0.429 107 NA Motor + Gearhead
    DCU24032G24-S102&PG22C-0004 Φ24 48.7 24Vdc 38.3 0.507 4 NA Motor + Gearhead
    DCU24032G24-S102&PG22C-0064 Φ24 59.1 24Vdc 430.1 0.507 64 NA Motor + Gearhead
    DCU24032G24-S102&PG22C-0256 Φ24 64.3 24Vdc 800 0.302 256 NA Motor + Gearhead
    DCU24032G12-S102&PG22C-0004 Φ24 48.7 12Vdc 34.1 0.929 4 NA Motor + Gearhead
    DCU24032G12-S102&PG22C-0016 Φ24 53.9 12Vdc 113.7 0.929 16 NA Motor + Gearhead
    DCU24032G12-S102&PG22C-0256 Φ24 64.3 12Vdc 800 0.609 256 NA Motor + Gearhead
    DCU24032G24-S103&PG22C-0022 Φ24 53.9 24Vdc 179.9 0.507 22 NA Motor + Gearhead
    DCU24032G24-S103&PG22C-0076 Φ24 59.1 24Vdc 510.7 0.507 76 NA Motor + Gearhead
    DCU24032G24-S103&PG22C-0509 Φ24 64.3 24Vdc 800 0.172 509 NA Motor + Gearhead
    DCU24032G18-S106&K16-200&PG22C-0022 Φ24 66.4 12Vdc,18Vdc,24Vdc 164.6 0.659 22 200-line incremental optical encoder Motor + Encoder + Gearhead
    DCU24032G18-S106&K16-200&PG22C-0107 Φ24 71.6 12Vdc,18Vdc,24Vdc 600 0.604 107 200-line incremental optical encoder Motor + Encoder + Gearhead
    DCU24032G18-S105&K16-200&PG22C-0004 Φ24 61.2 12Vdc,18Vdc,24Vdc 35 0.659 4 200-line incremental optical encoder Motor + Encoder + Gearhead
    DCU24032G18-S105&K16-200&PG22C-0256 Φ24 76.8 12Vdc,18Vdc,24Vdc 800 0.422 256 200-line incremental optical encoder Motor + Encoder + Gearhead
    DCU24032G18-S106&K16-200&PG22C-0090 Φ24 71.6 12Vdc,18Vdc,24Vdc 554.8 0.659 90 200-line incremental optical encoder Motor + Encoder + Gearhead

    Compare Item Price
    (USD)    		 Buy Now
    DCU24032G12-S101 $183.00
    DCU24032G24-S101 $183.00
    DCU24032G12-S102&PG22C-0004 $247.00
    DCU24032G12-S102&PG22C-0016 $240.00
    DCU24032G12-S102&PG22C-0064 $251.00
    DCU24032G12-S103&PG22C-0107 $251.00
    DCU24032G12-S102&PG22C-0256 $257.00
    DCU24032G24-S102&PG22C-0004 $247.00
    DCU24032G24-S103&PG22C-0022 $240.00
    DCU24032G24-S102&PG22C-0064 $251.00
    DCU24032G24-S103&PG22C-0076 $251.00
    DCU24032G24-S103&PG22C-0107 $251.00
    DCU24032G24-S102&PG22C-0256 $257.00
    DCU24032G24-S103&PG22C-0509 $257.00
    DCU24032G18-S105&K16-200&PG22C-0004 $328.00
    DCU24032G18-S106&K16-200&PG22C-0022 $334.00
    DCU24032G18-S106&K16-200&PG22C-0090 $338.00
    DCU24032G18-S106&K16-200&PG22C-0107 $338.00
    DCU24032G18-S105&K16-200&PG22C-0256 $344.00
       Torque Speed Curves

    Torque Speed Curves

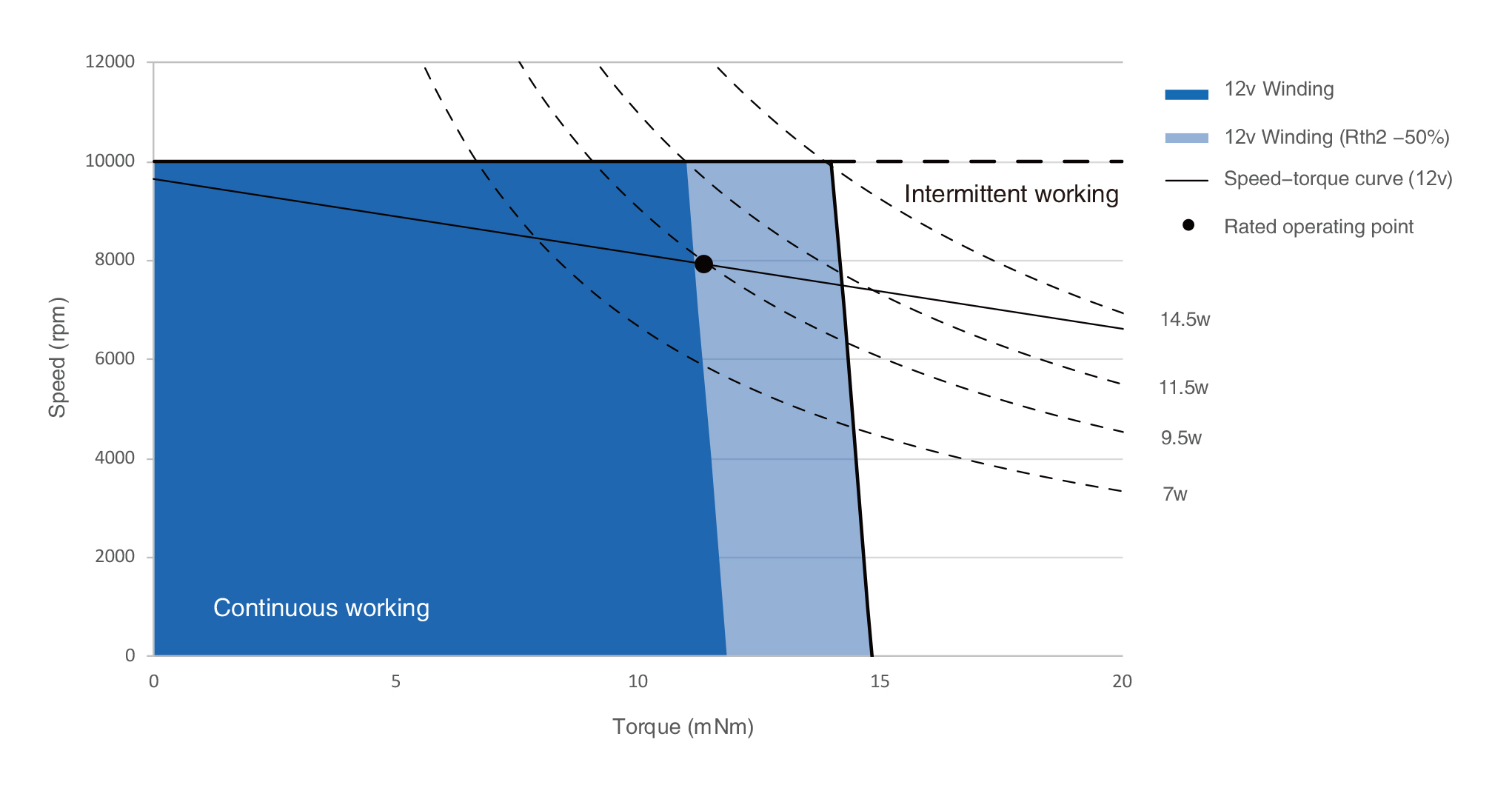

    Torque Speed Curve of DCU24032 Coreless Brushed DC Motors

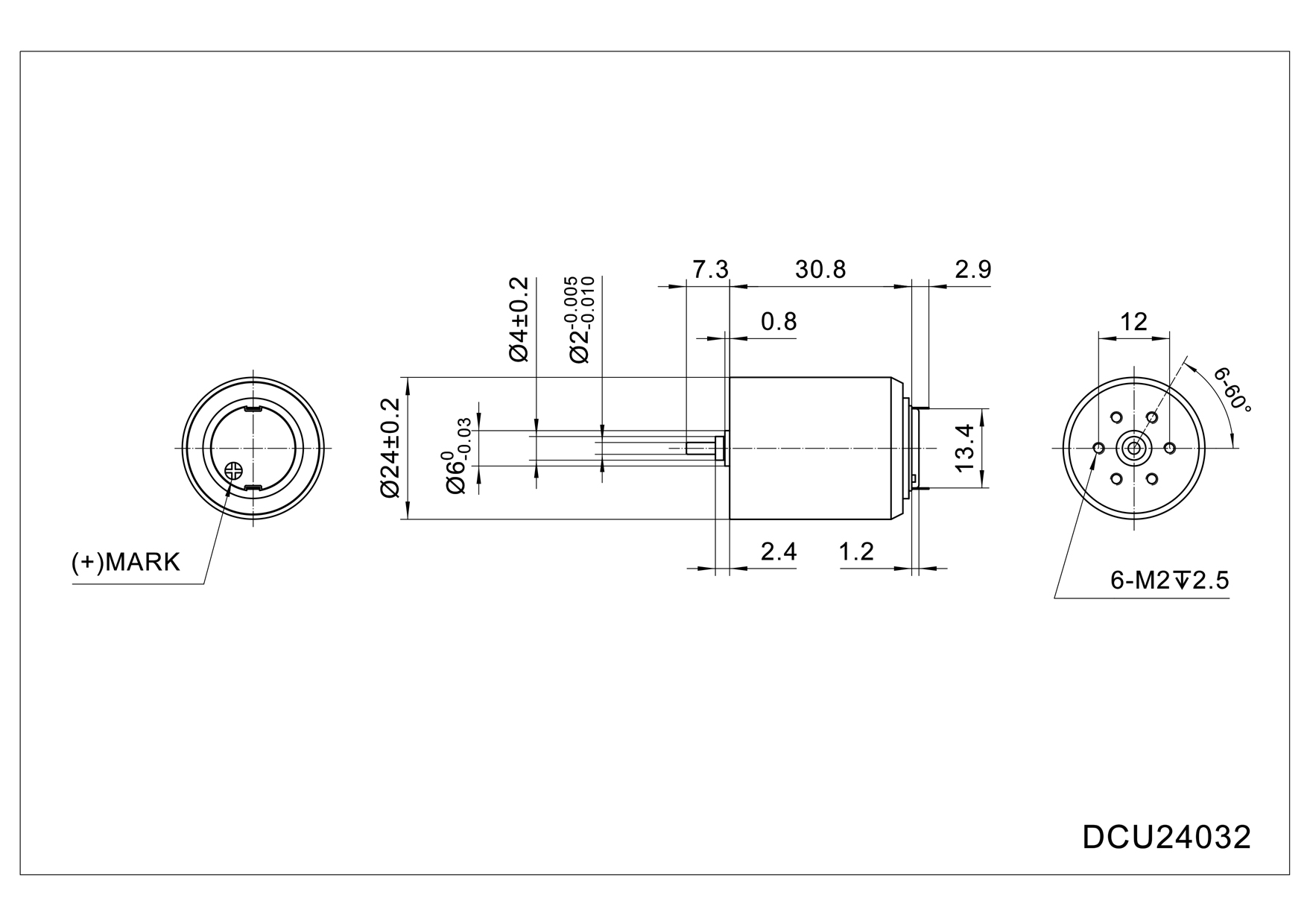

    Dimension

    Dimension

    Downloads
    2D Drawings
    3D Model
    Torque Speed Curves
    Catalog
    Title Type Size（KB） Download
    Slotless Coreless Motors Catalog PDF 17535
    User Instructions

    User instruction

    Before you start to use Moons’EC motors, please read the following instruction carefully:
    ①. The max permissible load on the output shaft of the motor and gearbox is limited. Exceeding the value may damage the motor or gearbox. For details, refer to the latest product catalog.

    ②. Overload the motor for a long time will damage the motor easily. The current rise will lead to rapid heat, high temperature will cause motor magnet demagnetization or motor winding damage. Over-current protection should be considering in your system.

    ③. The motor combination cannot be dropped from height.

    ④. The motor shaft are circular axis, you can use the coupling, fastening screw, viscose or laser welding. You should use the interference fit, compression and other methods to connect the load, and ensure that the motor shaft force does not exceed the specified value.

    ⑤. The output shaft can be machined by using the sleeve and machining the shaft directly.

    ⑥. Be sure to read the data or manuals carefully, wrong wiring and power supply may result in damaging the product.

    ⑦. MOONS’ EC motor hall sensor and encoders need to carry out ESD protection to prevent damage caused by static electricity.

    ⑧. When the drive unit is commissioned, it must be operated by qualified personnel to prevent personal injury.
