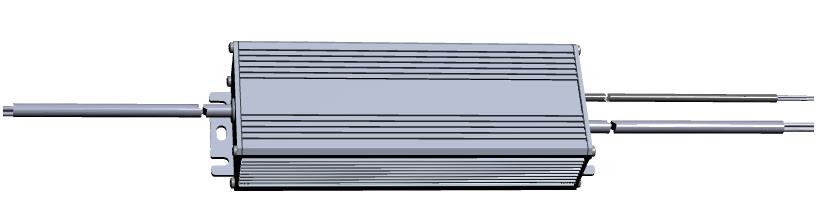

ME150HxxxAQ_CP Series

Ideal for higher lumen applications,the ME150HxxxAQ_CP Series is a 150W, constant-current, programmable outdoor LED driver that operate from 176~305 VAC input with excellent power factor.
● High Efficiency (Up to 93% typ.)
● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,UL,CE
● Flicker-Free Dimming Across Wide Dimming Range.
● 0-10V/PWM/Clock Dimming/Constant Current(ALL Dimming Functions Are Programmable)
● Surge: L-N:±10KV,L/N-FG:±10KV
● 5-year Warranty
Brand Name: MOONS'
Price: USD  35.0  EA
Free shipping to USA for orders of $100 or more
Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

ME150HxxxAQ_CP series is a 150W LED AC-DC driver featuring the constant current mode. This series operates from 176~305VAC and offers dimming models with different rated current that could be configured by MOONS' patented programmer--MSSL200.With the fan-less design, the entire series are able to operate for -40°C~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ME150HxxxAQ_CP is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Dimming Function Introduction

ME150HxxxAQ_CP is a programmable driver, all driver's parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ),Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 150W/1000mA、150W/2000mA、150W/3000mA and so on. What’s more, the driver is compatible with charged or uncharged programming mode.

1. Accessory-MSSL200

MSSL200 is the programmer of CLKS or CP Series driver.
The Programmable Driver Configurator Software and Configurator are compatible with MOONS' CLKS and CP drivers. They can be used to set the configuration parameters of MOONS' CLKS and CP drivers.


2. Dimming Function-Constant Power

Output Current: 65%∼ 100% ×rated output current
This series driver could achieve rated output power while adjusting output current range at 65%-100% rated output current.

Note:output current setting range with constant power 65%~100% Iomax


3. Dimming Function-PWM/1-10V Dimming

Dimming Range: 6.5%∼ 100% ×rated output current
The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.

PWM Interface

1-10V Interface


4. Dimming Function-Smart Midnight ClockDIM

Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.

Smart Midnight ClockDIM Interface


5. Dimming Function-Fixed ClockDIM

Users can set the dimming plan by separating 24 hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function.
For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.

Time Output
15:00~20:00 20%×Module Current
20:00~01:00 40%×Module Current
01:00~05:00 60%×Module Current
05:00~09:00 80%×Module Current
09:00~15:00 100%×Module Current

Fixed ClockDIM Interface

Applications
The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Different form factors are available for the perfect fit with your luminaire.

Street

Tunnel

Area

Architectural

High-Bay

Horticultural

Model list

Part Number Output Voltage Range Output Current Range Output Power Efficiency (Typ)
220VAC
ME150H080AQ_CP 113-283VDC 53-800mA 150W 93%
ME150H105AQ_CP 86-214VDC 70-1050mA 150W 93%
ME150H150AQ_CP 60-150VDC 100-1500mA 150W 92%
ME150H210AQ_CP 43-107VDC 140-2100mA 150W 92%
ME150H300AQ_CP 30-75VDC 200-3000mA 150W 91%
ME150H420AQ_CP 21-54VDC 280-4200mA 150W 91%
ME150H600AQ_CP 15-38VDC 400-6000mA 150W 90%

Specification

Input Voltage Range 176∼ 305Vac
Frequency 47∼ 63Hz
Power Factor 0.95 (Typ.) at 230Vac, 0.9 (Min.) at 277Vac, with 80%-100% load
Efficiency 94% Typical, depending on corresponding product
THD < 15% at 220VAC input 50Hz,80%~100% load
Inrush Current 65A at 230Vac input 25°C Cold Start (time wide=500uS, measured at 50% Ipeak,
Not applicable for the inrush current to Noise Filter for less than 0.2ms)
Output Current Range when dimming 6.5%∼ 100% ×Io_max
Line Regulation ± 3%
Load Regulation ± 5%
Ripple Current Percentage[(PK-AV)/AV] 10% max (peak to average value) at full load
Setup, Rise Time 1s (typ.), measured at 230Vac input
Operating Temperature Non SELV:-40~+70°C SELV:-40~+65°C(Refer to 'Derating Curve' in series datasheet)
Humidity 20~95%RH, non-condensing
MTBF 300,000 hours @ full load, 25°C ambient temperature
Surge Level L-N:± 10KV, L/N-PE:± 10KV
Reference Dimension(L×W×H) 221×67.5×40 mm
Weight 1.05kg
Safety Standard EN61347-1, EN61347-2-13 ,EN60598-1,EN62384
Life Time ≥50,000hrs@75°C Tc(Refer to'Life Time VS. Tcase (Ref.)' in series datasheet)

Model Encoding

Compare Item Price
(USD)
Buy Now
ME150H150AQ_CP $35.00
ME150H105AQ_CP $35.00
ME150H420AQ_CP $35.00
ME150H600AQ_CP $35.00
ME150H210AQ_CP $35.00
ME150H300AQ_CP $35.00

tupian

tupian

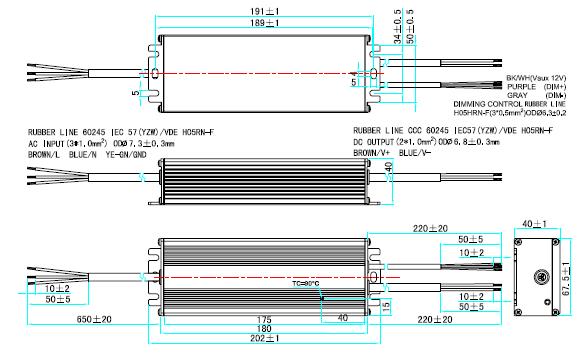

2D Drawings
