Stepper motor, Ultra high torque, High efficiency, High accuracy, Step Angle: 1.2°, NEMA24, 60x 60mm
● Ultra high torque
● High efficiency
● High accuracy
● Available options for Wire Harness
● High efficiency
● High accuracy
● Available options for Wire Harness
Brand Name: MOONS'
Price:
USD
158.7
-
220.0
EA
Payment Methods
Buyer Protection:
Free Exchange
Description
Technology Introduction
MOONS' PowerPlus technology provides 25% to 40% more torque across the entire speed range of the motor. The increased torque is a result of higher motor efficiency, and is available without increasing the drive voltage or current, Which makes numerous of advantages contains: Easily upgrades for Machine, Correct stalling problems with existing Machines, Overcome drive or power supply limitations in new designs.Typical Applications
Machine Upgrades: Changing existing machines to PowerPlus motors can be a quick path to new models with improved performance. Because the motor, drive and mechanical parts remain the same,benefits include:
• Faster new product introduction
• Reduced engineering costs
• Easy production phase in
• Reduced spare parts inventory
Correct stalling problems with existing machines:
Problems with occasional machine stalling are often due to unexpected field conditions such as: low temperature, dirt, and customers using machines in unexpected ways. Using PowerPlus motors can be a quick effective solution.
Problems with occasional machine stalling are often due to unexpected field conditions such as: low temperature, dirt, and customers using machines in unexpected ways. Using PowerPlus motors can be a quick effective solution.
Overcome drive or power supply limitations in new designs:
Often a higher current drive or higher voltage power supply can provide needed extra torque. However, in many designs the drive current cannot be increased without changing to a substantially more expensive drive. And increasing drive voltage can be impractical, expensive, or may not be allowed for safety reasons. In these cases using PowerPlus motors can be especially useful.
Often a higher current drive or higher voltage power supply can provide needed extra torque. However, in many designs the drive current cannot be increased without changing to a substantially more expensive drive. And increasing drive voltage can be impractical, expensive, or may not be allowed for safety reasons. In these cases using PowerPlus motors can be especially useful.
Conventional Motor
Some of the torque producing magnetic flux that links the rotor to the stator is outside the stator teeth. This stray flux adds little to motor torque.PowerPlus Technology
Magnets placed between the stator teeh redirect most of the stray magnetic flux into the stator teeth. This produces additional torque with the same input power.Torque Curves
&npsb;
Specification
| Phase | 3 |
| Steps/ Revolution | 300 |
| Step Angle | 1.2° |
| Step Accuracy | ±5% |
| Insulation Class | B, 130℃ |
| Insulation Resistance | 100 MegOhms |
| Axial Load (20,000 hours at 1000RPM ) | 40N (9 Lbs.) Push 130N (30 Lbs.) Pull |
| Radial Load (20,000 hours at 1000RPM ) | 70N (15.5 Lbs.) At Flat Center |
| Operating Temp. | -20℃~50℃ |
| IP Rating | IP 40 |
| Approvals | RoHS |

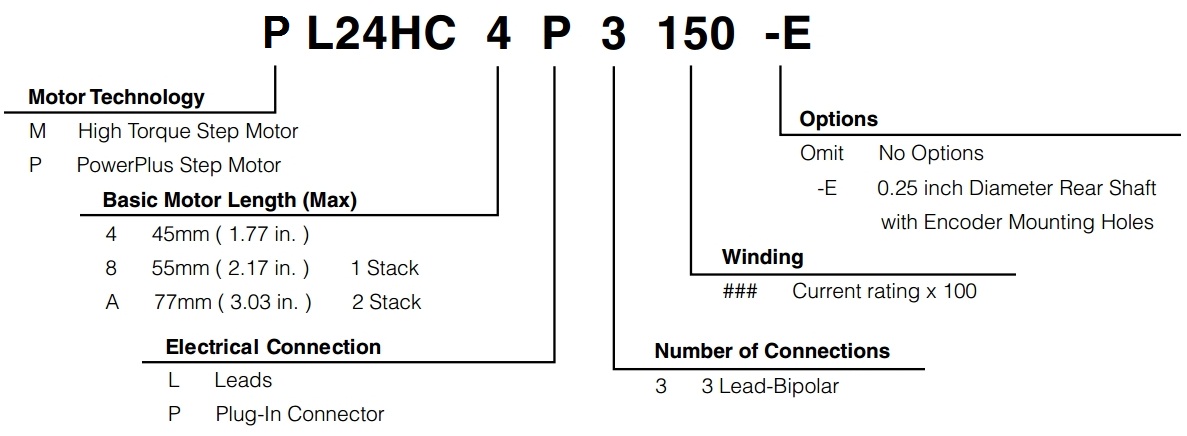

Model Numbering System
PL24HC-PowerPlus
| Length | Model Number | Torque Curves | Connect | Rated Current | Holding Torque | Winding OhmsmH | Detent Torque | Rotor Inertia | Motor Weight |
|---|---|---|---|---|---|---|---|---|---|
| Single Shaft | P=Plug L=Leads | Amps (mounted) | Nmoz-in Typ.Typ. | ±10% @20℃Typ. | mNmoz-in | g cm²oz-in² | kgLbs |
| 45 mm (1.77 in.) | PL24HC4P3150 |   | P | 1.5 | 0.87120 | 4.87 | 557.8 | 1590.87 | 0.731.6 |
|---|---|---|---|---|---|---|---|---|---|
| PL24HC4P3230 |  | P | 2.3 | 0.87120 | 2.13 | ||||
| PL24HC4L3410 |  | L | 4.1 | 0.87120 | 0.670.94 |
| 55 mm (2.17 in.) 1Stack | PL24HC8P3150 |  | P | 1.5 | 1.4200 | 612.2 | 9013 | 2211.2 | 0.932.1 |
|---|---|---|---|---|---|---|---|---|---|
| PL24HC8P3220 |  | P | 2.2 | 1.4200 | 2.75.5 | ||||
| PL24HC8L3350 |  | L | 3.5 | 1.4200 | 1.152.1 | ||||
| PL24HC8L3550 |  | L | 5.5 | 1.4200 | 0.510.9 |
| 77 mm (3.03 in.) 2Stack | PL24HCAP3150 |  | P | 1.5 | 2.3330 | 7.315.7 | 15021 | 3912.1 | 1.453.2 |
|---|---|---|---|---|---|---|---|---|---|
| PL24HCAP3220 |  | P | 2.2 | 2.3330 | 3.67.4 | ||||
| PL24HCAL3340 |  | L | 3.4 | 2.3330 | 1.63 | ||||
| PL24HCAL3550 |  | L | 5.5 | 2.3330 | 0.641.15 |
| Compare | Item | Price (USD) |
Buy Now |
|---|---|---|---|
|
|
PL24HC4P3150 | $158.70 |
Added to Your Shopping Cart
|
|
|
PL24HC4P3230 | $158.70 |
Added to Your Shopping Cart
|
|
|
PL24HC4L3410 | $158.70 |
Added to Your Shopping Cart
|
|
|
PL24HC8P3150 | $165.60 |
Added to Your Shopping Cart
|
|
|
PL24HC8P3220 | $165.60 |
Added to Your Shopping Cart
|
|
|
PL24HC8L3350 | $165.60 |
Added to Your Shopping Cart
|
|
|
PL24HC8L3550 | $165.60 |
Added to Your Shopping Cart
|
|
|
PL24HCAP3150 | $220.00 |
Added to Your Shopping Cart
|
|
|
PL24HCAP3220 | $220.00 |
Added to Your Shopping Cart
|
|
|
PL24HCAL3340 | $220.00 |
Added to Your Shopping Cart
|
|
|
PL24HCAL3550 | $220.00 |
Added to Your Shopping Cart
|
►Torque Curves
| ■ PowerPlusPL24HC4 | ||
 |  |  |
| ■ PowerPlusPL24HC8 | |||
 |  |  |  |
| ■ PowerPlusPL24HCA | |||
 |  |  |  |
►Dimensions
■ Motor Dimensions: mm(in)
3 Lead Part Number: 4634140204485
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| PL24HC4P3150 2D.pdf | 91 | ||
| PL24HC8P3150 2D.pdf | 89 | ||
| PL24HC4L3410 2D.pdf | 88 | ||
| PL24HC4P3230 2D.pdf | 88 | ||
| PL24HCAL3550 2D.pdf | 175 | ||
| PL24HCAL3340 2D.pdf | 79 | ||
| PL24HCAP3220 2D.pdf | 78 | ||
| PL24HCAP3150 2D.pdf | 79 | ||
| PL24HC8L3350 2D.pdf | 78 | ||
| 4611110026420.pdf | 184 | ||
| 4611110026411.pdf | 215 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| PL24HC4P_3D Model.step | STEP | 1023 | |
| PL24HCAP_3D Model.step | STEP | 1024 | |
| PL24HC8P_3D Model.step | STEP | 1024 |
Torque Speed Curves
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| PL24HC Series_Torque Speed Curve.pdf | 6055 |
Catalog
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| Hybrid Stepper Motor_Catalog2019.pdf | 15487 |
Filter By Product Type
All ProductsWire harness
Coupling
With years of expertise and experience in the design, development, manufacturing and marketing of hybrid stepper motors, MOONS' provides a wealthy customized services, therefore, you can find suitable solutions for any special demands here.
