NEMA23 Ball Screw Hybrid Linear Stepper Motors

NEMA23, Ball screw linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.
● High mechanical efficiency
● High accuracy
● High rigidity
Brand Name: MOONS'
Price: USD  354.0  -  449.0  EA

* Free shipping to North America and most of Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

MOONS's ball screw linear stepper motors are designed based on the know-how technology of hybrid stepper motors, ball screws, and nuts. Provide high torque, high precision, and high efficiency to fit the application needs of designers. In the case of external linear actuators, the lead screw is permanently attached to the motor shaft and turns with the shaft when the motor is energized. If an externally threaded nut is mounted on the lead screw and secured against rotating by an external guide, the threaded nut moves along the lead screw.
The combination of motor styles, motor sizes, ball screws, and nuts, gives the freedom to use motors of different form factors to exactly fit in the application. And, it provides the best performance with any drive and power supply.
NEMA23 Ball screw linear stepper motors

High mechanical efficiency

The Ball screws of Linear stepper Motors have outstanding transmission efficiency of over 90%, incomparably higher than lead screws. Their required torque is just less than a third of what the lead screws require. Therefore, it is easier to transfer a linear motion into a rotary motion.
mechanical efficiency of NEMA 23 Ball Screw Linear stepper Motors

High accuracy

The ball screw of the linear stepper motors adopts the Gothic arch groove profile, and its axial clearance can be adjusted at very fine intervals and can be rotated slightly. In addition, by giving a preload to the screw, the axial clearance could be adjusted to 0 to achieve higher accuracy. The repetitive positioning accuracy of the ball screw linear stepperping motor can reach ±0.02mm, the screw diameter is up to 10mm, and the lead starts from 0.01mm/rev. Various stroke lengths, lead wires, and end treatments of the screw rods can be customized.
Groove profile of nema 23 Ball Screw Linear stepper Motors

High rigidity

The Ball screws of linear stepper motors maintain excellent durability achieved by carefully selected materials, proper heat treatment, and machining with advanced production technologies. Ball screws are generally manufactured to maintain the minimum standard hardness at 58 HRC with the materials listed on the right table.The overall hardness far exceeds the combination of threaded screws and nuts.
Materials and hardness of nema 23 Ball Screw Linear stepper Motors

NEMA17 Ball Screw Linear Motors Stepper Standard Models for stock

Size Motor Series   Lead Screw Options   Screw Length Options   Nut Options   End Machining Code   Rated Current Options
57*57 BE238S - B1002 - 100,155,180,210,250,300 - AK1 - 0,S - 220
B1004 AK2
B1010 BM1
The ordering information of NEMA23 Ball Screw Linear Stepper Motors

Compare Item Price
(USD)
Buy Now
BE238S-B1002-100-AK1-0-220 $403.00
BE238S-B1002-125-AK1-0-220 $409.00
BE238S-B1002-150-AK1-S-220 $414.00
BE238S-B1002-175-AK1-S-220 $420.00
BE238S-B1002-200-AK1-S-220 $425.00
BE238S-B1002-225-AK1-S-220 $430.00
BE238S-B1002-250-AK1-S-220 $436.00
BE238S-B1002-275-AK1-S-220 $441.00
BE238S-B1002-300-AK1-S-220 $449.00
BE238S-B1004-100-AK2-0-220 $403.00
BE238S-B1004-125-AK2-0-220 $409.00
BE238S-B1004-150-AK2-S-220 $414.00
BE238S-B1004-175-AK2-S-220 $420.00
BE238S-B1004-200-AK2-S-220 $425.00
BE238S-B1004-225-AK2-S-220 $430.00
BE238S-B1004-250-AK2-S-220 $436.00
BE238S-B1004-275-AK2-S-220 $441.00
BE238S-B1004-300-AK2-S-220 $449.00
BE238S-B1010-100-FF1-0-220 $354.00
BE238S-B1010-125-FF1-0-220 $360.00
BE238S-B1010-150-FF1-S-220 $365.00
BE238S-B1010-175-FF1-S-220 $370.00
BE238S-B1010-200-FF1-S-220 $376.00
BE238S-B1010-225-FF1-S-220 $381.00
BE238S-B1010-250-FF1-S-220 $387.00
BE238S-B1010-275-FF1-S-220 $392.00
BE238S-B1010-300-FF1-S-220 $398.00

Speed-Force Reference Curve

Speed-Force Reference Curve of NEMA23 Ball Screw Hybrid Linear Stepper Motors

Dimensions

unit:mm

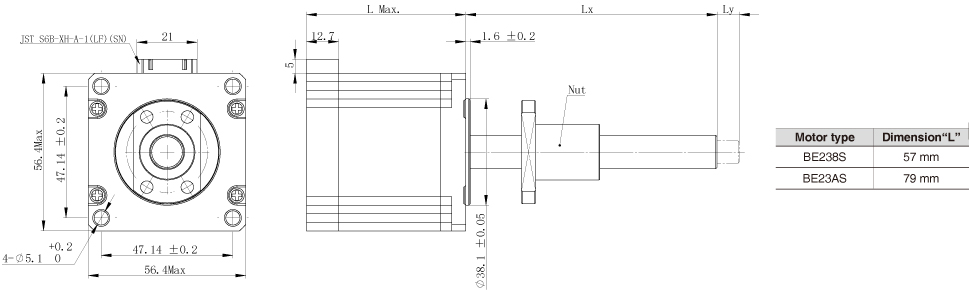

Drawing of NEMA23 Ball Screw Hybrid Linear Stepper Motors

2D Drawings
Title Type Size(KB) Download
BE238S-B1002-100-AK1-0-220 2D Drawing PDF 353
BE238S-B1002-175-AK1-S-220 2D Drawing PDF 353
BE238S-B1002-300-AK1-S-220 2D Drawing PDF 363
BE238S-B1002-200-AK1-S-220 2D Drawing PDF 353
BE238S-B1002-150-AK1-S-220 2D Drawing PDF 353
BE238S-B1002-125-AK1-0-220 2D Drawing PDF 353
BE238S-B1004-300-AK2-S-220 2D Drawing PDF 366
BE238S-B1004-200-AK2-S-220 2D Drawing PDF 356
BE238S-B1004-100-AK2-0-220 2D Drawing PDF 356
BE238S-B1002-275-AK1-S-220 2D Drawing PDF 352
BE238S-B1010-300-FF1-S-220.PDF PDF 259
BE238S-B1004-125-AK2-0-220 2D Drawing PDF 356
BE238S-B1010-100-FF1-0-220.PDF PDF 260
BE238S-B1002-250-AK1-S-220 2D Drawing PDF 353
BE238S-B1004-275-AK2-S-220 2D Drawing PDF 356
BE238S-B1004-150-AK2-S-220 2D Drawing PDF 356
BE238S-B1010-100-BM1-0-220 2D Drawing PDF 353
BE238S-B1002-225-AK1-S-220 2D Drawing PDF 353
BE238S-B1010-125-FF1-0-220.PDF PDF 238
BE238S-B1004-250-AK2-S-220 2D Drawing PDF 356
BE238S-B1010-300-BM1-S-220 2D Drawing PDF 364
BE238S-B1010-150-FF1-S-220.PDF PDF 260
BE238S-B1010-175-FF1-S-220.PDF PDF 260
BE238S-B1010-250-FF1-S-220.PDF PDF 260
BE238S-B1010-250-BM1-S-220 2D Drawing PDF 353
BE238S-B1010-275-FF1-S-220.PDF PDF 260
BE238S-B1010-225-FF1-S-220.PDF PDF 260
BE238S-B1010-200-FF1-S-220.PDF PDF 260
BE238S-B1004-175-AK2-S-220 2D Drawing PDF 356
BE238S-B1010-200-BM1-S-220 2D Drawing PDF 353
BE238S-B1010-225-BM1-S-220 2D Drawing PDF 353
BE238S-B1010-125-BM1-0-220 2D Drawing PDF 353
BE238S-B1004-225-AK2-S-220 2D Drawing PDF 356
BE238S-B1010-275-BM1-S-220 2D Drawing PDF 353
BE238S-B1010-175-BM1-S-220 2D Drawing PDF 353
BE238S-B1010-150-BM1-S-220 2D Drawing PDF 354
3D Model
Title Type Size(KB) Download
BE238S-B1002-300-AK1-S-220 3D Model STEP 939
BE238S-B1002-100-AK1-0-220 3D Model STEP 1046
BE238S-B1002-200-AK1-S-220 3D Model STEP 1005
BE238S-B1002-150-AK1-S-220 3D Model STEP 1023
BE238S-B1002-175-AK1-S-220 3D Model STEP 1024
BE238S-B1002-125-AK1-0-220 3D Model STEP 1044
BE238S-B1004-300-AK2-S-220 3D Model STEP 964
BE238S-B1004-275-AK2-S-220 3D Model STEP 1023
BE238S-B1010-300-BM1-S-220 3D Model STEP 948
BE238S-B1002-275-AK1-S-220 3D Model STEP 994
BE238S-B1004-100-AK2-0-220 3D Model STEP 1074
BE238S-B1010-100-BM1-0-220 3D Model STEP 1058
BE238S-B1004-175-AK2-S-220 3D Model STEP 1060
BE238S-B1002-225-AK1-S-220 3D Model STEP 989
BE238S-B1004-200-AK2-S-220 3D Model STEP 1033
BE238S-B1010-275-BM1-S-220 3D Model STEP 1007
BE238S-B1010-300-FF1-S-220.STEP STEP 5596
BE238S-B1010-100-FF1-0-220.STEP STEP 5580
BE238S-B1004-125-AK2-0-220 3D Model STEP 1073
BE238S-B1010-250-BM1-S-220 3D Model STEP 994
BE238S-B1002-250-AK1-S-220 3D Model STEP 982
BE238S-B1010-150-BM1-S-220 3D Model STEP 1040
BE238S-B1010-250-FF1-S-220.STEP STEP 5596
BE238S-B1010-175-FF1-S-220.STEP STEP 5596
BE238S-B1010-275-FF1-S-220.STEP STEP 5596
BE238S-B1010-225-FF1-S-220.STEP STEP 5596
BE238S-B1010-125-FF1-0-220.STEP STEP 5580
BE238S-B1010-150-FF1-S-220.STEP STEP 5596
BE238S-B1010-200-BM1-S-220 3D Model STEP 1017
BE238S-B1010-200-FF1-S-220.STEP STEP 5596
BE238S-B1004-225-AK2-S-220 3D Model STEP 1018
BE238S-B1010-175-BM1-S-220 3D Model STEP 1027
BE238S-B1010-125-BM1-0-220 3D Model STEP 1053
BE238S-B1004-150-AK2-S-220 3D Model STEP 1051
BE238S-B1004-250-AK2-S-220 3D Model STEP 1010
BE238S-B1010-225-BM1-S-220 3D Model STEP 1002
Catalog
Title Type Size(KB) Download
Linear Motion Product General Catalogue PDF 21843

MOONS' often modify linear actuators to meet application needs. Typical changes include:

• Encoder Options
• Brake Options
• Ball screw End Machining
• Ball screws: lengths, end machining, and so on.

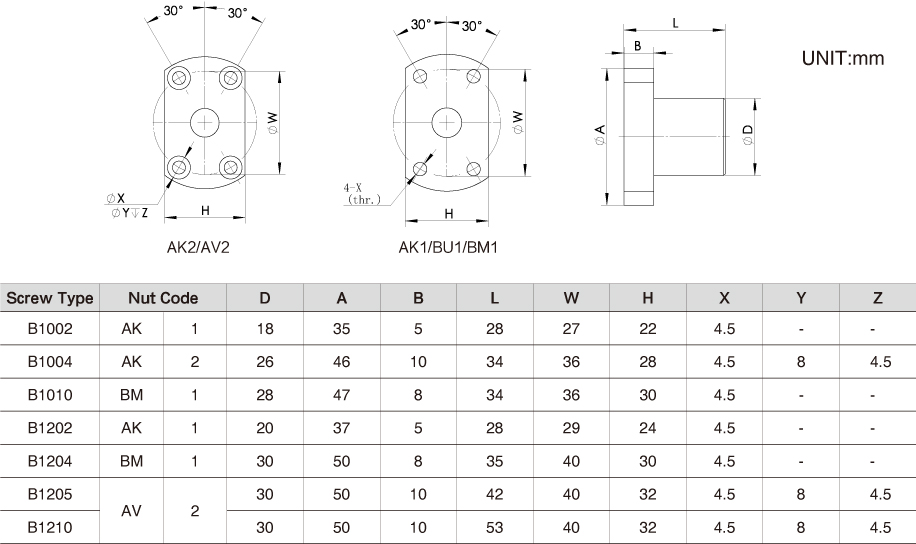

• Nuts: basic style, mounting, and so on.
To help our customer's design efforts, standardized leadscrew features are available.

Encoder Options - Suitable for applications that require feedback

Parameter
Parameter
Dimensional Information
Dimensional Information

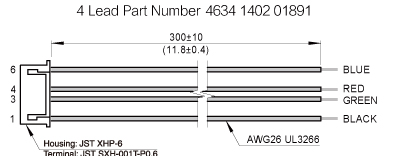

Mating Connector With Leads
Mating Connector With Leads

Brake Options

Parameter
Parameter
Dimensional Information
Dimensional Information
Ball screw End Machining

MOONS' can customize the length of the ball screw, end processing, and nuts style, mounting so on
Ball screw End Machining

Step Sequence & Schematic Diagrams

Step Sequence & Schematic Diagrams of Linear Stepper Motors




Delivery & Packaging

Logistics tracking

Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

Professional Product Label

Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

Note: This label design is suitable for products of stepper motor.

(Professional packing box and unique appearance design)

(Single item packed with EPE)

(Multi-products packed with another box)

Safely Packaging

In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
Besides,the package is made from recyclable materials, providing you with professional safety delivery.
Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

Shipping Visualization

For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

(Product in the box)

(Add the invoice)

(Label the commodity)

(The logistics waybill attached)

Fast Delivery

Fast Cross-Border Delivery
MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
Estimated Delivery Time: e.g. China-USA major cities 3 business days.

Professional
Warehouse Management

MOONS’ has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
