S Series 15W single channel DALI intelligent driver

NEW ARRIVAL IN 2019

S Series 15W single channel DALI intelligent driver

0.01% deep dimming • Input Voltage: 100-240Vac
• Output Power: 15W
• Output channel number: 1
• Output range (two options)
   1) 200-700mA settable output current, 12-50Vdc output voltage range
   2) 200-1050mA settable output current, 2.5-15Vdc output voltage range
• DALI dimming, accord with IEC62386-101(2.0), 102(2.0), 207(2.0)
• Optional dimming curve: linear/logarithmic
Contact Us for More

Description

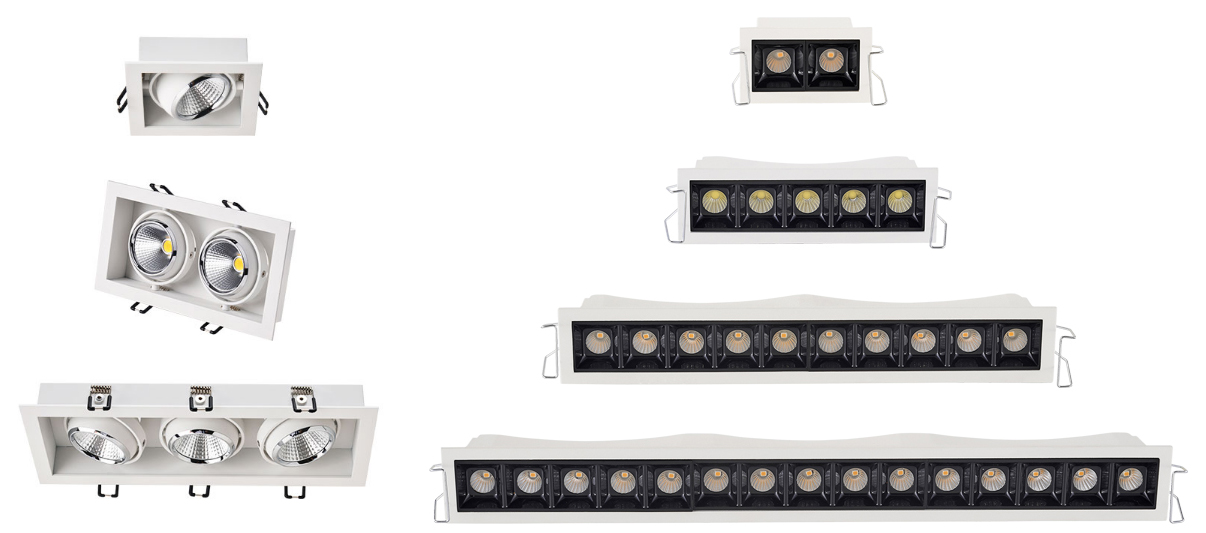

Since LED lighting becomes more are more popular in daily life, the variety of LED luminaire has been various. mall power LED luminaire with low Vf is one kind as well. MOONS' 15W series is developed for these kind luminaires. Description

Datasheet& Specification

Part Number Max Output Range (Settable) Dimming Description With Bracket
MU015S070AQI340 200-700 mA DALI DT6 No
MU015S105AQI340 200-1050 mA No
MU015S070AQI370 200-700 mA Yes
MU015S105AQI370/C 200-1050 mA Yes

Dimension

· MU015S070AQI340 & MU015S105AQI340:

MU015S070AQI340-MU015S105AQI340

· MU015S070AQI370 & MU015S105AQI370:

MU015S070AQI370-MU015S105AQI370
