    • MPC Series Intelligent Circulation Pump

    With over 30 years of profound technical expertise in mechanics & structure, motor design & engineering, power electronics & motor driving, control & communication, now integrating with hydraulic engineering, MOONS' is proud to introduce revolutionary intelligent circulating pump——MPC series. The MPC series are highly integrated, with excellent performance of flow and head, high reliability, high efficiency, and low noise, offering superior convenient experience.
    ● Multiple Control Modes
    ● Long Lifetime
    ● High Flow, High Head and Superior Hydraulic Design
    ● Ultra-Quiet Performance
    Brand Name:

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Construction(Exploded View)
  • Applications
  • Features
  • Specifications
  • Ordering Information

    • Construction(Exploded View)

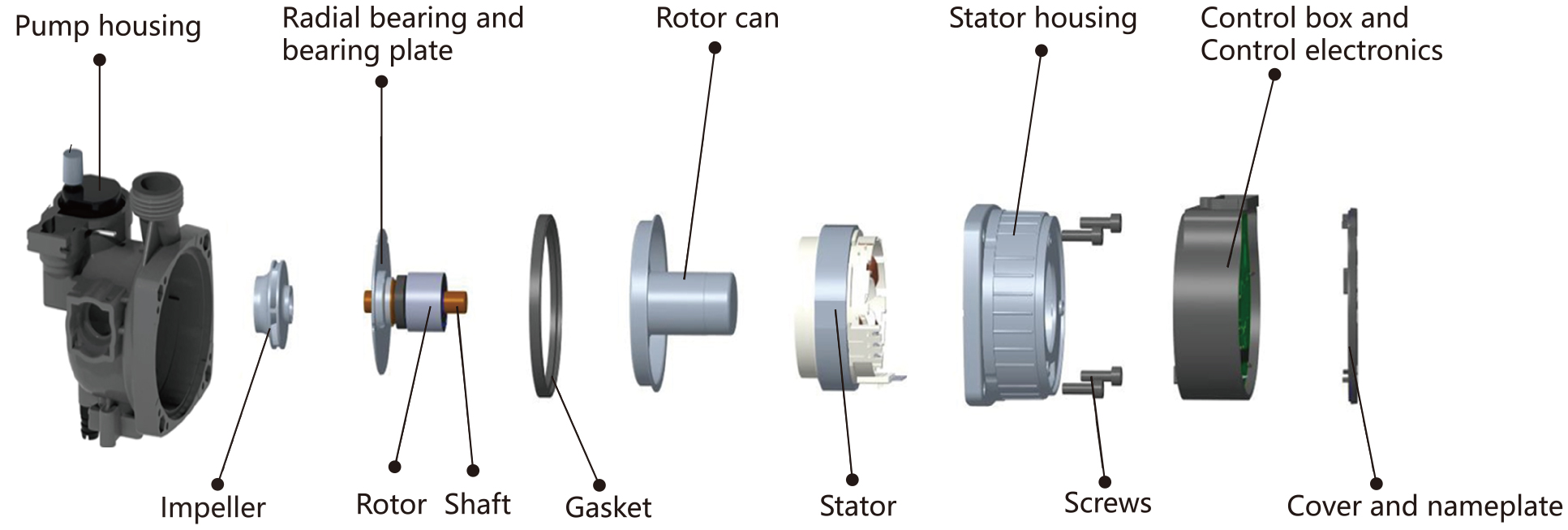

    Construction(Exploded View)

    Applications

  • Wall-hung boiler

    Wall-hung boiler

  • Heat pump

    Heat pump

  • Domestic hot-water

    Domestic hot-water

  • Pressure boost

    Pressure boost

    • Features

    Multiple Control Modes, Intelligent Operation

    • The MPC pump has various control options can operate either stand-alone or via external signals.
    • The pump speed can be controlled by PWM signal or LIN bus.
    • Stand-alone(control mode U) operation supports auto-adaptation to CP (Constant Pressure), PP (Proportional Pressure), CC (Constant Curve).
    • The MPC pump with control mode H(Hybrid) can operate either stand-alone or via external PWM signals.

    High Reliability, Long Lifetime

    • ≥ 100,000 h (with specified load profile).
    • ≥ 500,000 on/off cycles.

    Certified Safety with Comprehensive Protection

    • Optional anti-condensation design: suitable for both heating and cooling applications.
    • Motor protections including stall, over/under voltage, over-current.

    Experience Serenity with Ultra-Quiet Performance

    • Noise level as low as 38 dB(A) for quiet and comfortable experience.
    • Revolutionary fanless design with MOONS' proprietary exclusive whisper-silent motor technology.

    Energy-Saving Efficiency with Low Total Cost of Ownership

    • Exceptional energy efficiency with EEI≤0.20.
    • High-performance motor and advanced drive technology.
    • Optimized hydraulic solutions for high flow and high head.

    Hassle-Free Installation and Maintenance

    • Standardized mounting interfaces for quick and easy set up.
    • Multiple pump housing connection options.
    Intelligent OperationSuper Long LifetimeStrong Power with High Flow and High LiftUltra-Quiet Performance

    Specifications

    01Numbering System
    MPC15/80-75AVL1SAXXX
    MPCMPC series
    15Connection15：G1"20：G1 ¼"25：G1 ½"
    80-75Head-Power60-46: 6m-46W70-60: 7m-60W75-75: 7.5m-75W80-75: 8m-75W90-90: 9m-90W
    AVL1Pump housingH130/H180: Cast iron,130mm/180mmAVL1: Composite plastics
    SIP protectionS: IP44E: IPX4D
    AControl modeA: PWM AC: PWM CL: LINU: Internally controlledH: Hybrid
    XXXReserved for customers

    228 standard models in total *

    * Not all combinations are available. For details, see: Ordering Information.
    02Connection and Pump Housing e.g., MPC 15 /80-75 AVL1 S H ||____________ Pump housing code |__ Connection code
    Pump housing code
    ————————————————
    Connection code    		 AVL1
    (Composite plastics)    		 H130
    (Cast iron,130mm)    		 H180
    (Cast iron,180mm)
    15
    Connection: G1;
    Flow diameter: 20mm    		 15-AVL1 15-H130 \
    20
    Connection: G1 1/4;
    Flow diameter: 25mm    		 \ 20-H130 20-H180
    25
    Connection: G1 1/2;
    Flow diameter: 25mm    		 \ 25-H130 25-H180
    03IP Protection ratings: IP44 and IPX4D. e.g., MPC 15 /80-75 AVL1 S H |____________ IP protection IP protection ratings: IP44 and IPX4D. S-IP44: Prevents solid objects ≥1mm in diameter from entering and protects against water splashing from any direction with no harmful effects. E-IPX4D: Safeguards against water splashing from any direction with no harmful effects, and features enhanced condensate drainage for reliable performance in condensing environments.
    04Control Mode e.g., MPC 15 /80-75 AVL1 S H |____________ Control Mode

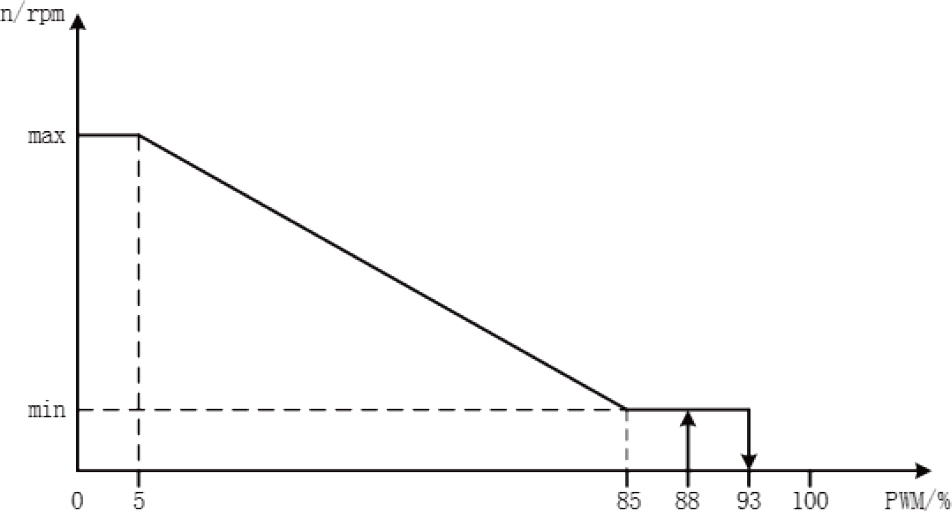

    A —— PWM A profile

    At high PWM signal percentages (duty cycles), a hysteresis prevents the pump from starting and stopping if the input signal fluctuates around the shifting point. At low PWM signal percentages, the pump speed is high.This mode is primarily used in heating systems. A —— PWM A profile

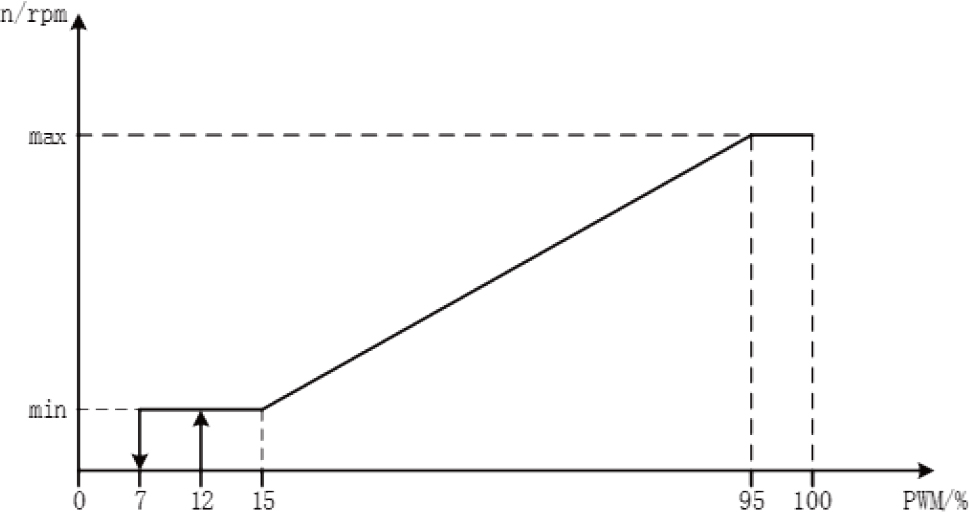

    C —— PWM C profile

    At low PWM signal duty cycles, a hysteresis prevents the pump from starting and stopping if the input signal fluctuates around the shifting point. Without PWM signal, the pump stops. This mode is primarily used in cooling systems. C —— PWM C profile

    U —— Internal control modes

    Internal control modes deliver up to 3 operating strategies, each with different head curves.
    Internally Controlled
    Proportional pressure Constant pressure Constant curve
    PP1 CP1 CC1
    PP2 CP2 CC2
    PP3 CP3 CC3（max）
    PP Auto CP Auto

    L —— LIN bus

    The LIN control interface is defined according to VDMA 24226 description.
    The LIN bus Basic makes it possible to control the following: start/stop, constant curve, readouts of pump status and static pump information.

    H —— Hybrid control modes

    The hybrid model has up to five control modes, each with different head curves.
    External Controlled Internally Controlled
    PWM A profile PWM C profile Proportional pressure Constant pressure Constant curve
    A1 PWM C PP1 CP1 CC1
    A2   PP2 CP2 CC2
    A3（max）   PP3 CP3 CC3（max）
        PP Auto CP Auto

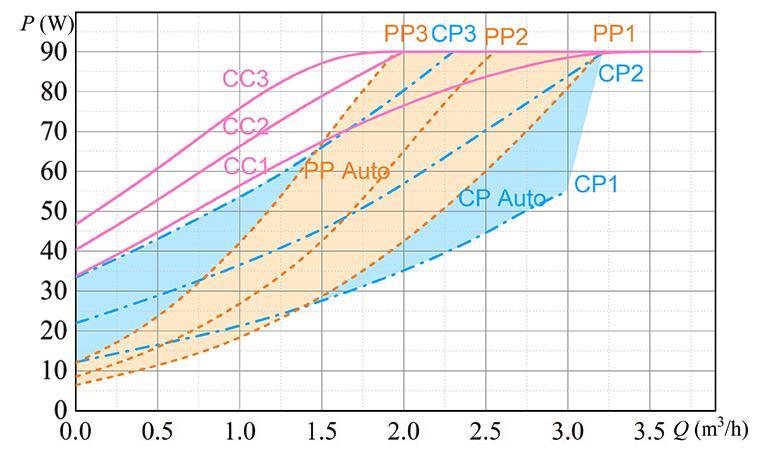

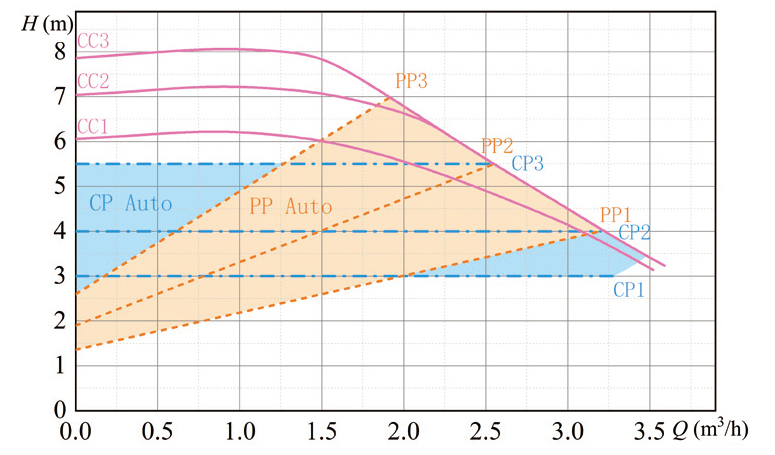

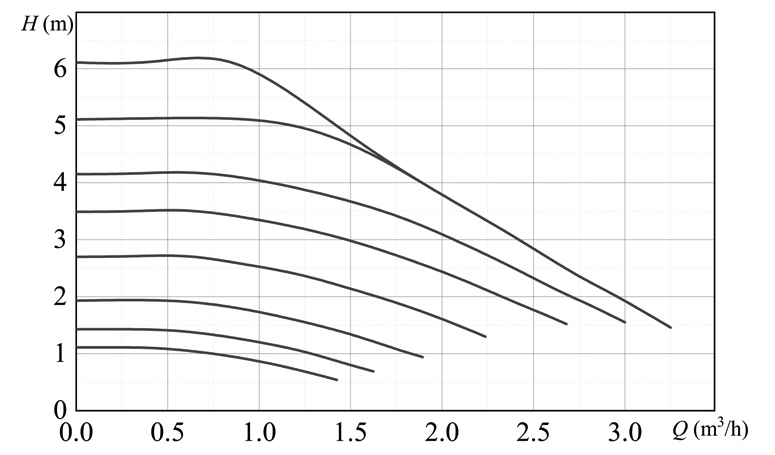

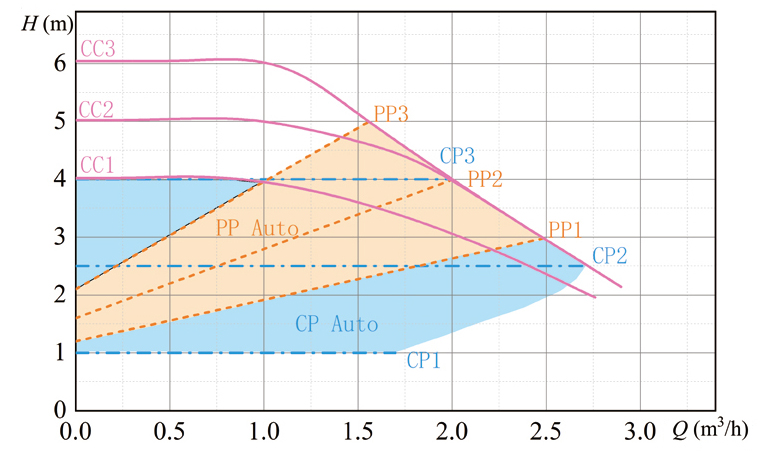

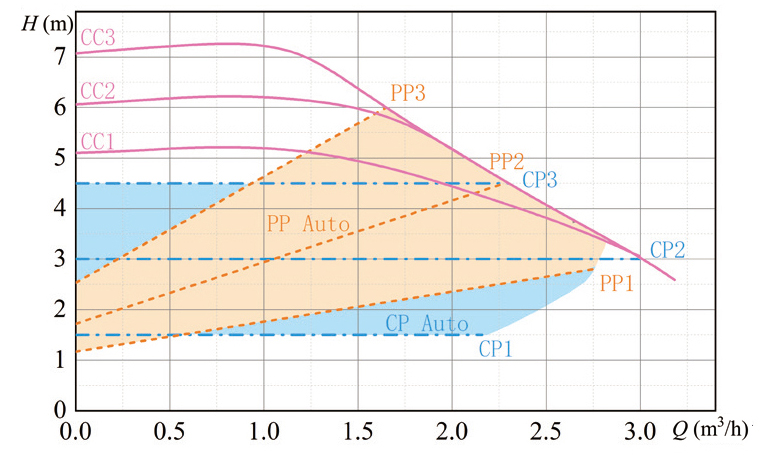

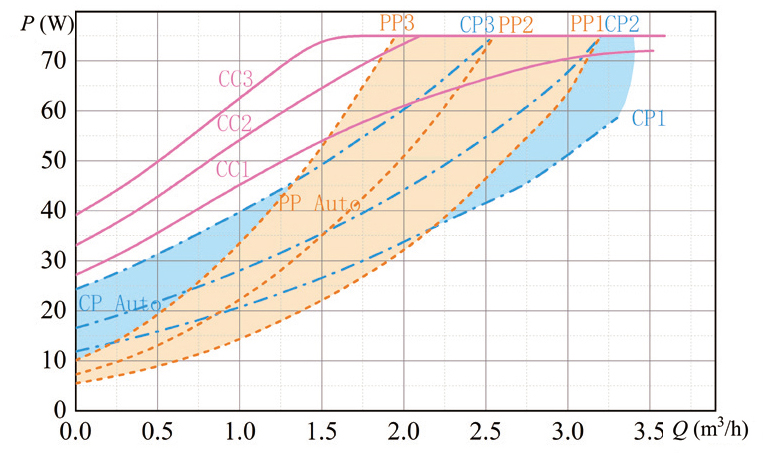

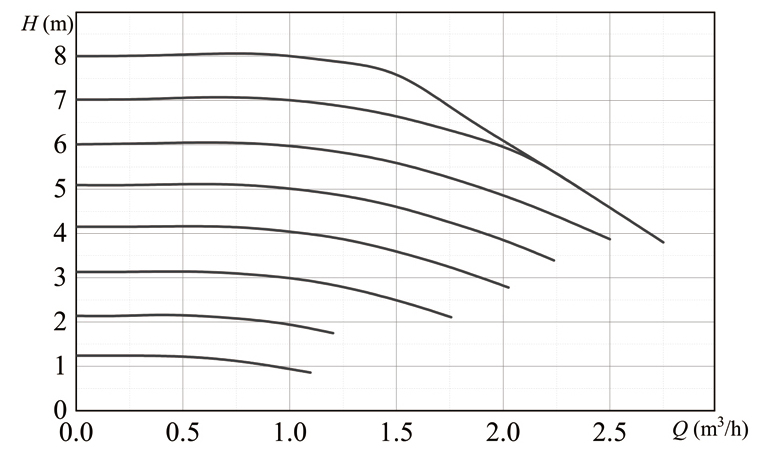

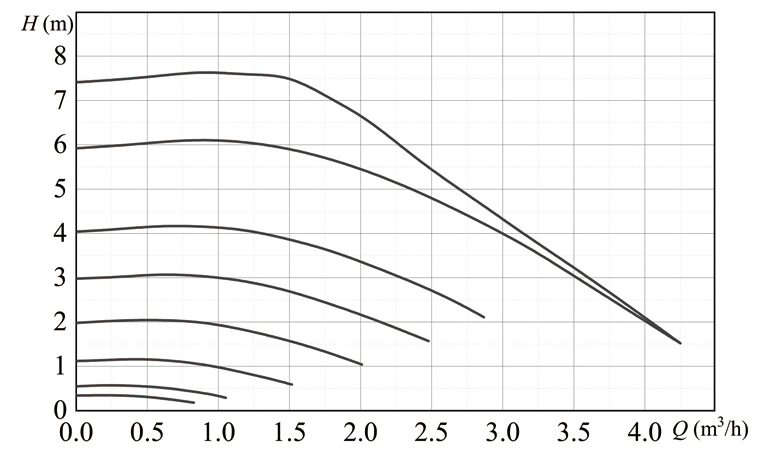

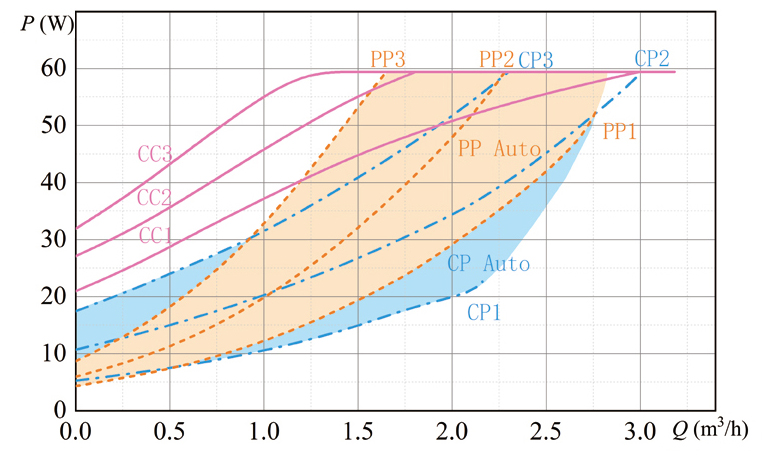

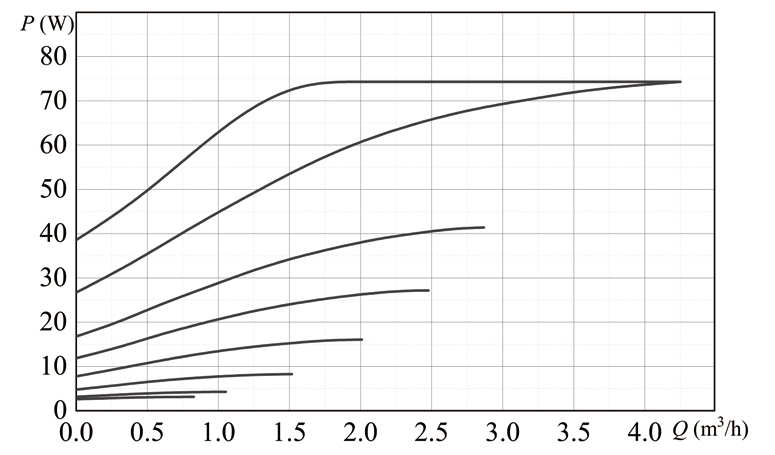

    05Performance Curves The test liquid is 20℃ airless water.Curves have been obtained according to ISO 9906：2012

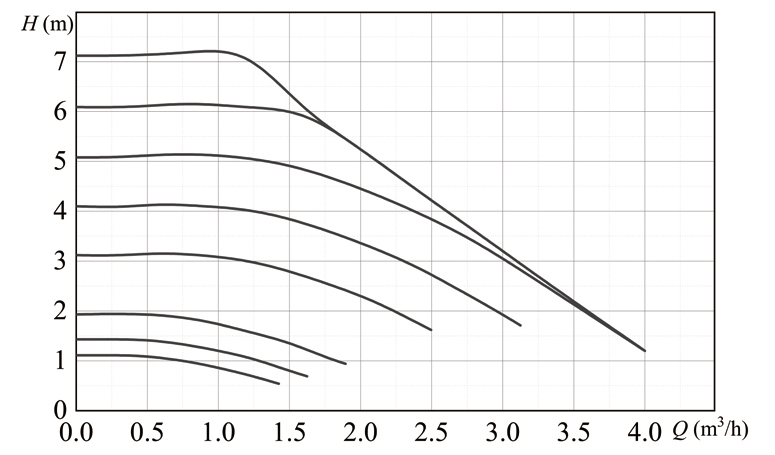

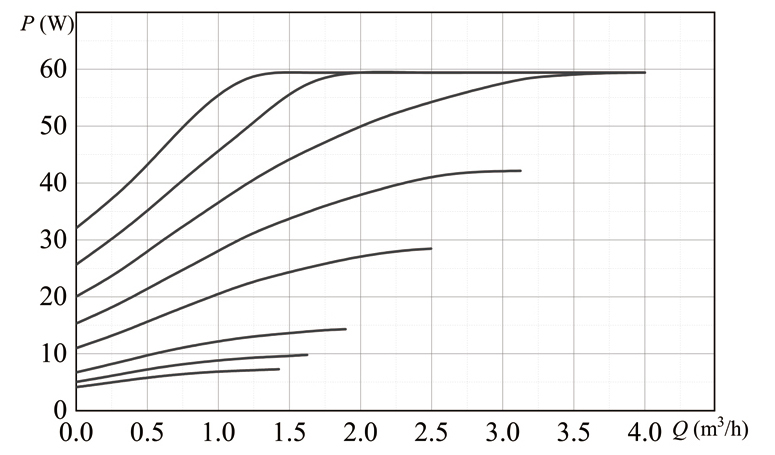

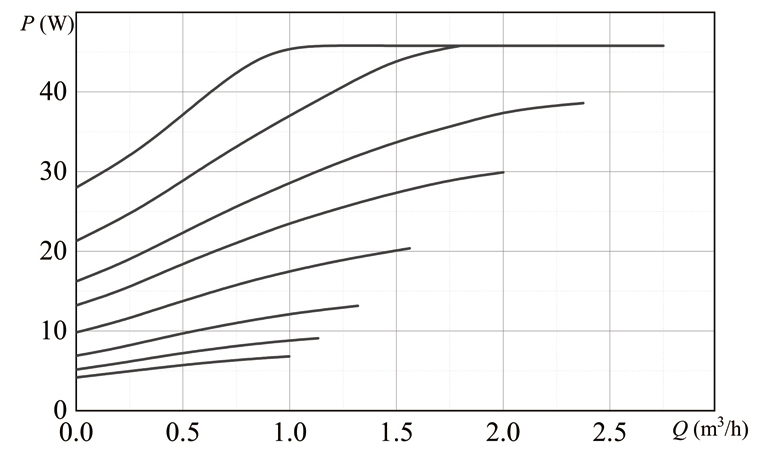

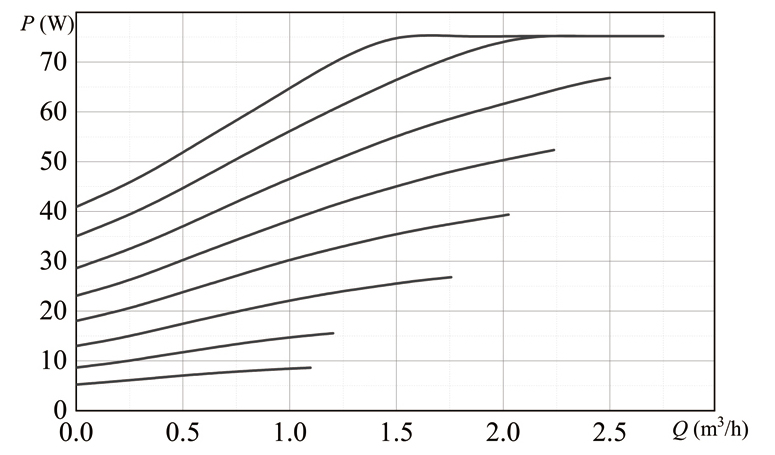

    1. External control (PWM&LIN)

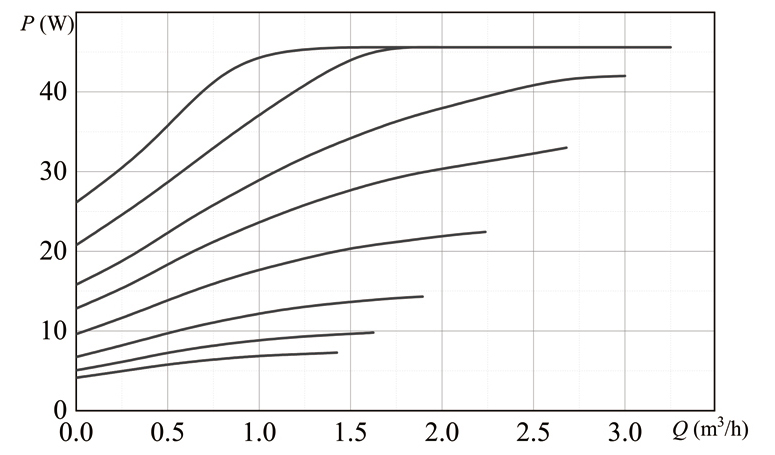

    MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing) MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing) MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing)
    MPC 15/60-46 AVL1 (6m-46W, Composite plastics pump housing) MPC 15/60-46 AVL1 (6m-46W, Composite plastics pump housing) MPC 15/60-46 AVL1 (6m-46W, Composite plastics pump housing)

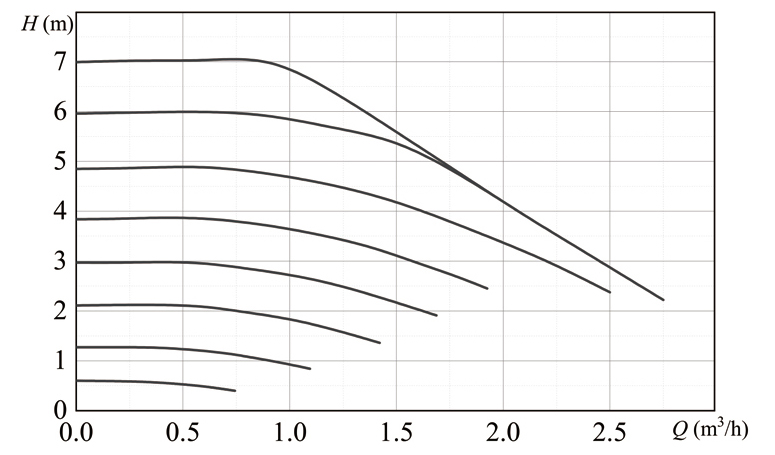

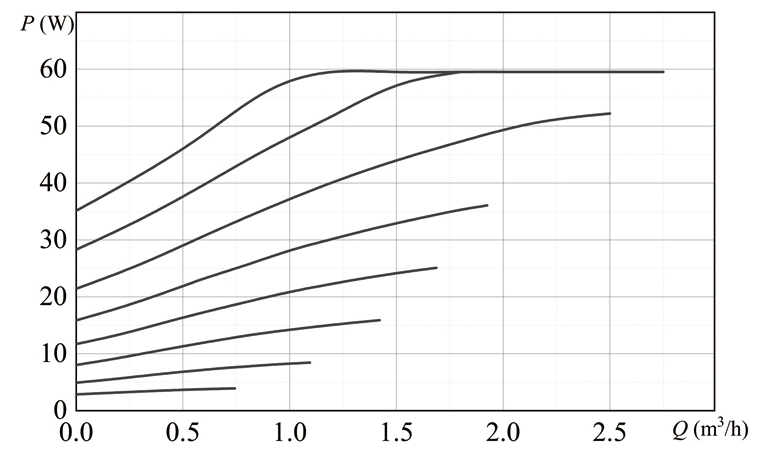

    MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing) MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing) MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing)
    MPC 15/70-60 AVL1 (7m-60W, Composite plastics pump housing) MPC 15/70-60 AVL1 (7m-60W, Composite plastics pump housing) MPC 15/70-60 AVL1 (7m-60W, Composite plastics pump housing)
    MPC ××/75-75 H130/H180 (7.5m-75W, Cast iron pump housing) MPC ××/75-75 H130/H180 (7.5m-75W, Cast iron pump housing) MPC ××/75-75 H130/H180 (7.5m-75W, Cast iron pump housing)

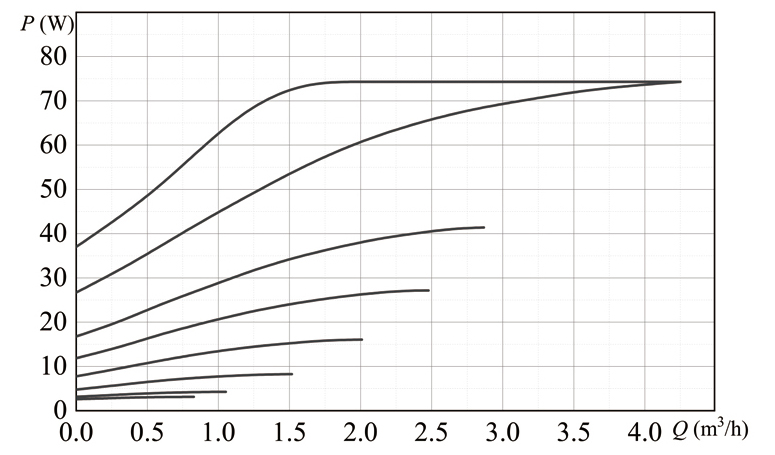

    MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing) MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing) MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing)
    MPC 15/80-75 AVL1 (8m-75W, Composite plastics pump housing) MPC 15/80-75 AVL1 (8m-75W, Composite plastics pump housing) MPC 15/80-75 AVL1 (8m-75W, Composite plastics pump housing)

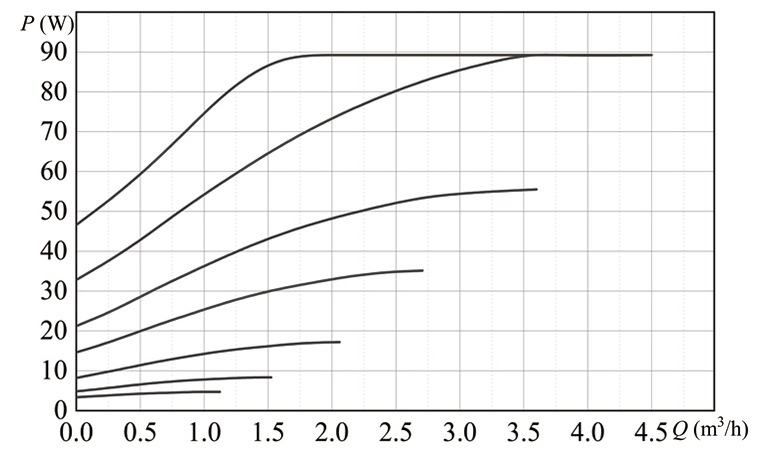

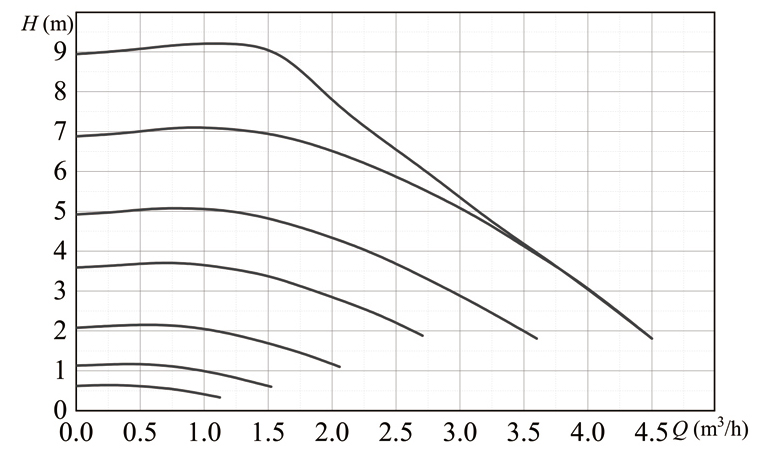

    MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing) MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing) MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing)

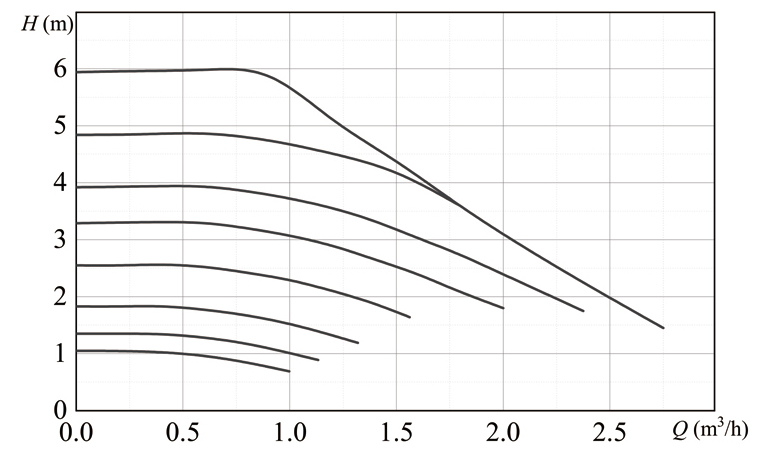

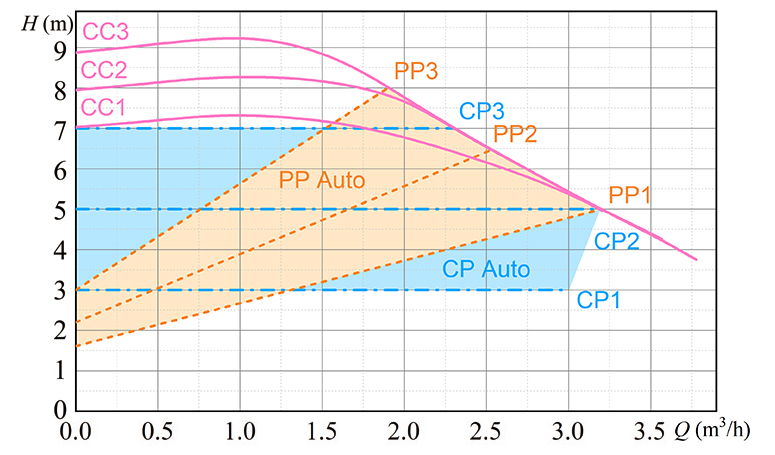

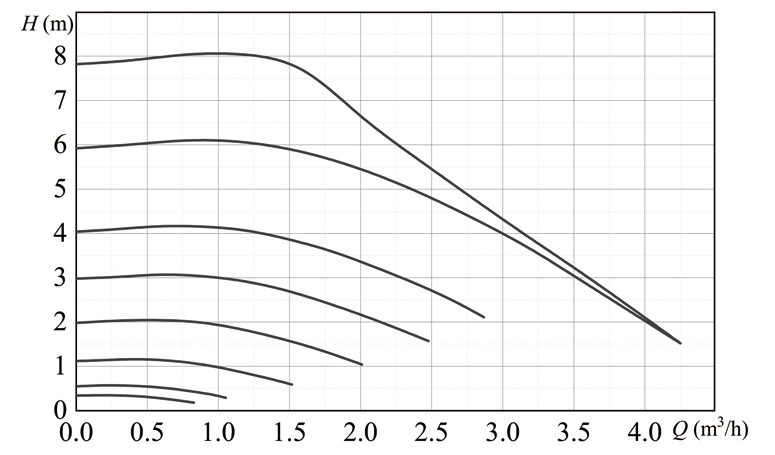

    2. Internal control(U)

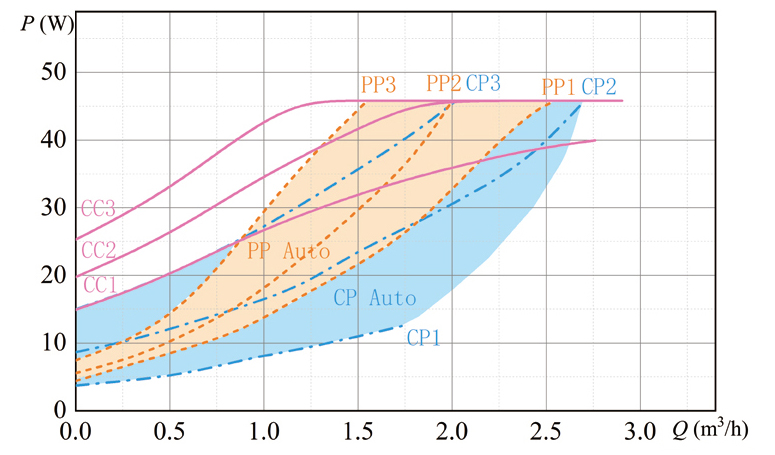

    MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing) MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing) MPC ××/60-46 H130/H180 (6m-46W, Cast iron pump housing)
    MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing) MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing) MPC ××/70-60 H130/H180 (7m-60W, Cast iron pump housing)
    MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing) MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing) MPC ××/80-75 H130/H180 (8m-75W, Cast iron pump housing)
    MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing) MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing) MPC ××/90-90 H130/H180 (9m-90W, Cast iron pump housing)

    Ordering Information

    Pump housing types pair with six fixed connection code combinations.
    H130: G 1, G 1 1/4, G 1 1/2; H180: G 1 1/4, G 1 1/2; AVL1: G 1     The cast iron pump housing codes (H130, H180) can be freely combined with all the five configurations of head-power codes.
    The composite plastics pump housing code (AVL1) can only be combined with three head-power codes: 6m-46W, 7m-60W, 8m-75W.     The U (Internal control) and H (Hybrid) control modes are only compatible with cast iron pump housings (H130, H180) and the four head-power codes of 6m-46W, 7m-60W, and 8m-75W, 9m-90W.
    Product matrix● Avaliable
    ‐ Contact local sales
    ———————— Connection Head-Power Pump housing type IP class Control mode
    Selectable code 15 20 25 ##-## H130 H180 AVL1 S E A C L U H
    Configuration G1 G1 1/4 G1 1/2 Maximum head-Maximum power Cast iron pump housing Cast iron pump housing Composite plastics pump housing IP44 IPX4D PWM A PWM C LIN Internal control Hybrid
    MPC ● ● ● 60-46(6m-46W) ● ‐ ‐ ● ● ● ● ● ● ●
    ● ● ● 70-60(7m-60W) ● ‐ ‐ ● ● ● ● ● ● ●
    ● ● ● 75-75(7.5m-75W) ● ‐ ‐ ● ● ● ● ● ‐ ‐
    ● ● ● 80-75(8m-75W) ● ‐ ‐ ● ● ● ● ● ● ●
    ● ● ● 90-90(9m-90W) ● ‐ ‐ ● ● ● ● ● ● ●
    ‐ ● ● 60-46(6m-46W) ‐ ● ‐ ● ● ● ● ● ● ●
    ‐ ● ● 70-60(7m-60W) ‐ ● ‐ ● ● ● ● ● ● ●
    ‐ ● ● 75-75(7.5m-75W) ‐ ● ‐ ● ● ● ● ● ‐ ‐
    ‐ ● ● 80-75(8m-75W) ‐ ● ‐ ● ● ● ● ● ● ●
    ‐ ● ● 90-90(9m-90W) ‐ ● ‐ ● ● ● ● ● ● ●
    ● ‐ ‐ 60-46(6m-46W) ‐ ‐ ● ● ● ● ● ● ‐ ‐
    ● ‐ ‐ 70-60(7m-60W) ‐ ‐ ● ● ● ● ● ● ‐ ‐
    ● ‐ ‐ 80-75(8m-75W) ‐ ‐ ● ● ● ● ● ● ‐ ‐
    01Accessory Information

    MOONS' offers the following accessories for customers selection

    Accessory Information Gasket①, used for secure sealing between the pump and external piping. Select the appropriate size to match your interface. Cable assembly②, pre-assembled with power and signal cable for effortless integration; harness length: 500 mm. Alternatively, customize your setup with individual components: plug socket ④, signal cable (500 mm) ⑤, power cable (500 mm) ⑥. Screw⑦, essential for reliably securing the cable socket to the pump.
    Number Accessory Part No. QTY/Pump Unit
    (Cast iron
    H130/H180)    		 QTY/Pump Unit
    (Composite plastics
    AVL1)
    ① G1 thread gasket 9999999903658 2 1
    G1 1/4 thread gasket 9999999905217 2 1
    G1 1/2 thread gasket 9999999905216 2 1
    ② Cable assembly(500mm) 9999999903659 1 1
    ③ Cable assembly(500mm)
    (U-type, power cable only)    		 9999999905340 1 1
    ④ Plug socket 9999999904392 1 1
    ⑤ Signal cable(500mm) 9999999905229 1 1
    ⑥ Power cable(500mm) 9999999904393 1 1
    ⑦ Screw 9999999903657 1 1
    02Ordering, Packaging and Shipping Instructions When ordering pumps, choose from the following two options for ordering and shipping:

    1. Pump with standard accessory kit

    In this option, each water pump is individually packaged with an accessory kit included (gasket, cable assembly, and screws).
    Ordering model: Pump model(with accessories kit), e.g., MPC15/70-60H130SA (with accessories kit).

    2. Pump and accessories ordered separately

    In this option, pumps are bulk-packaged with 112 units per carton. Accessories need to be ordered separately using their respective material codes and are shipped in a separated packaging box.
    Ordering model: Pump model(without accessories), e.g., MPC15/70-60H130SA (without accessories).

    Data Sheet

    General Specifications

    Nominal Supply Voltage 230V+10%/-15%, 50/60Hz
    Insulation Class Class F
    IP Protection IP44 / IPX4D (used for condensing environment)
    Ambient Temperature* 2-70℃(IP44): -20 to +70℃(IPX4D)
    Media Temperature (normal water) 2-95℃
    Media Temperature (with corresponding antifreeze) -20 to +95℃(IPX4D)
    Storage Temperature -40 to +85 ℃
    Maximum Altitude of Installation 2000m
    Connections G 1, G 1 1/4, G 1 1/2
    Energy Efficiency Index* EEI≤0.20
    Acoustic Sound Pressure Level (LP) ≤38 dB(A)
    Relative Humidity Maximum 95 %, non-condensing environment
    Maximum System Pressure 1.0MPa (cast iron pump housing, 130mm/180mm)
    0.3MPa (composite plastics pump housing, AVL1)
    Expected Lifetime ≥ 100,000 h, ≥ 500,000 on/off cycles
    Agency Approval CE
    *: Parameters may vary by model. Please refer to the specification sheet for details.

    Compare Item Price
    (USD)
    MPC15/60-46H130SU
    MPC15/60-46H130EU
    MPC15/60-46AVL1SA
    MPC15/70-60H130SH
    MPC15/70-60H130EA
    MPC15/70-60H130EU
    MPC15/70-60AVL1SA
    MPC15/70-60AVL1EA
    MPC15/80-75AVL1EA
    MPC25/60-46H130SU
    MPC25/60-46H180EA
    MPC25/60-46H180SA
    MPC25/70-60H180SA
    MPC25/70-60H180SL
    MPC25/80-75H130EA
    MPC25/80-75H180EA
    MPC25/80-75H180EH
    MPC25/90-90H180EA
    MPC25/90-90H180SU
    Dimension

    Outline Mounting Dimensions

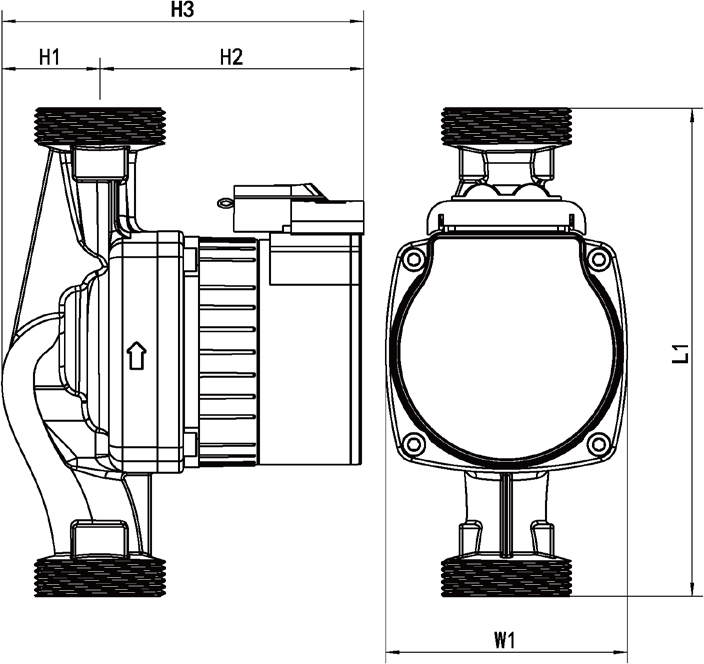

    1. Cast iron pump housing(H130/H180)
    Cast iron pump housing(H130/H180)
    Pump housing type Connection code Dimensions[mm] Connection
    [inch]    		 Weight
    [kg]
    H1 H2 H3 L1 W1

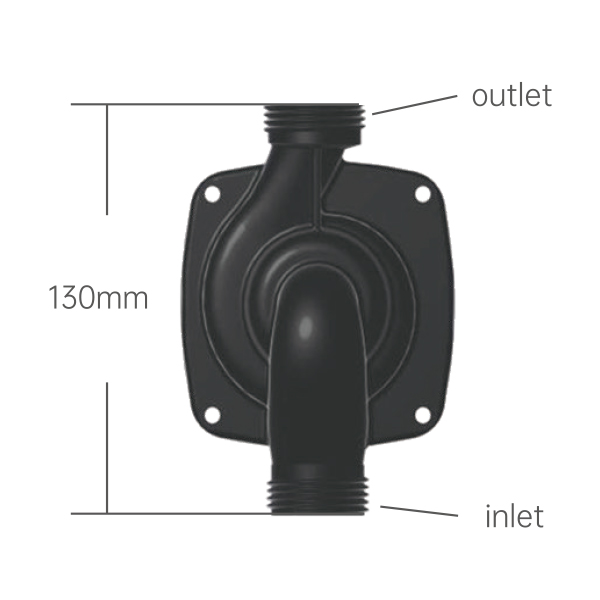

    H130 15 35 96 131 130 89 G1 1.6
    H130 20 35 96 131 130 89 G1 1/4 1.7
    H130 25 35 96 131 130 89 G1 1/2 1.8

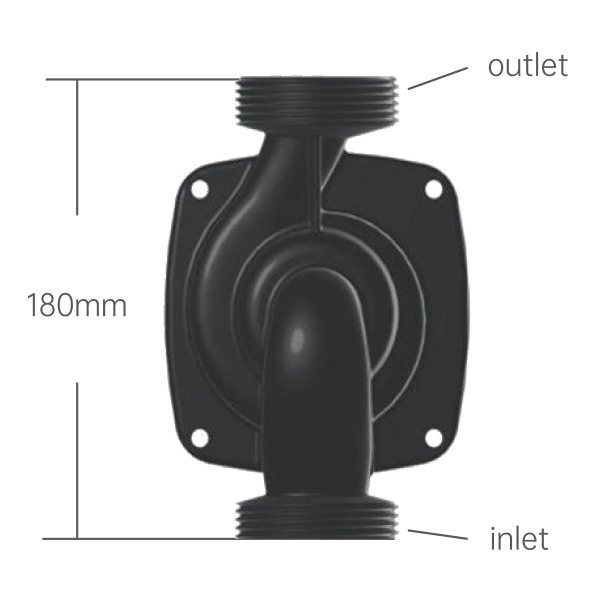

    H180 20 36 96 132 180 89 G1 1/4 1.9
    H180 25 36 96 132 180 89 G1 1/2 2.0

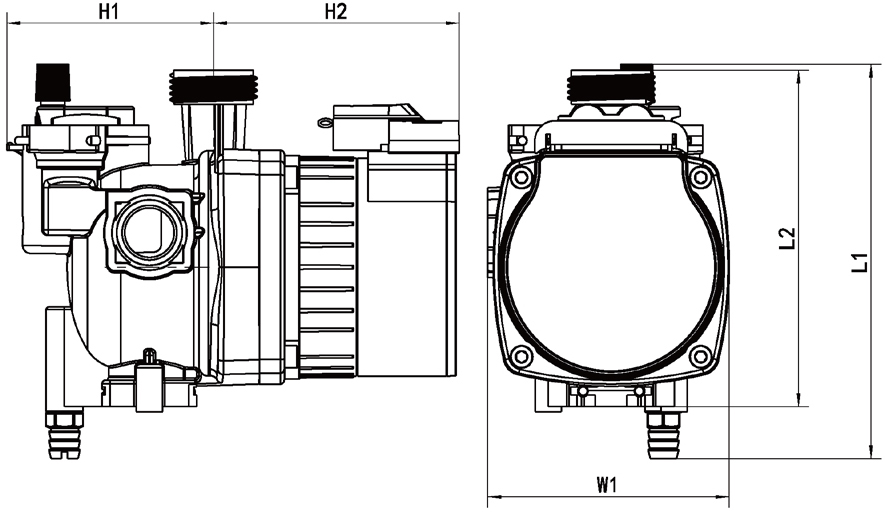

    2. Composite plastics pump housing (AVL 1)
    Composite plastics pump housing (AVL 1)
    Pump housing type Connection code Dimensions[mm] Connection
    [inch]    		 Weight
    [kg]
    H1 H2 H3 L1 W1

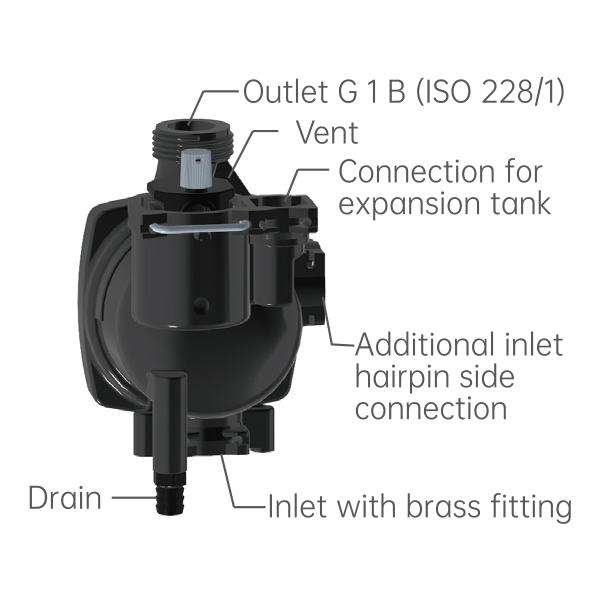

    AVL1 15 79 94 150 128 92 G1 1.2

    Downloads
    2D Drawings
    3D Model
    Catalog
    Title Type Size（KB） Download
    MPC Series Intelligent Circulation Pump.pdf PDF 98777
    Delivery & Packaging

    01Accessory Information

    MOONS' offers the following accessories for customers selection

    Accessory Information Gasket①, used for secure sealing between the pump and external piping. Select the appropriate size to match your interface. Cable assembly②, pre-assembled with power and signal cable for effortless integration; harness length: 500 mm. Alternatively, customize your setup with individual components: plug socket ④, signal cable (500 mm) ⑤, power cable (500 mm) ⑥. Screw⑦, essential for reliably securing the cable socket to the pump.
    Number Accessory Part No. QTY/Pump Unit
    (Cast iron
    H130/H180)    		 QTY/Pump Unit
    (Composite plastics
    AVL1)
    ① G1 thread gasket 9999999903658 2 1
    G1 1/4 thread gasket 9999999905217 2 1
    G1 1/2 thread gasket 9999999905216 2 1
    ② Cable assembly(500mm) 9999999903659 1 1
    ③ Cable assembly(500mm)
    (U-type, power cable only)    		 9999999905340 1 1
    ④ Plug socket 9999999904392 1 1
    ⑤ Signal cable(500mm) 9999999905229 1 1
    ⑥ Power cable(500mm) 9999999904393 1 1
    ⑦ Screw 9999999903657 1 1
    02Ordering, Packaging and Shipping Instructions When ordering pumps, choose from the following two options for ordering and shipping:

    1. Pump with standard accessory kit

    In this option, each water pump is individually packaged with an accessory kit included (gasket, cable assembly, and screws).
    Ordering model: Pump model(with accessories kit), e.g., MPC15/70-60H130SA (with accessories kit).

    2. Pump and accessories ordered separately

    In this option, pumps are bulk-packaged with 112 units per carton. Accessories need to be ordered separately using their respective material codes and are shipped in a separated packaging box.
    Ordering model: Pump model(without accessories), e.g., MPC15/70-60H130SA (without accessories).
