50W Single-channel LED Intelligent Driver



50W Single-channel LED Intelligent Driver


• Dim to 0.1%
• Dimming Curve (Linear/log)
• 60mA Dali Bus power
• Power measurement function
• Flicker Free: CEC title 24 JA10/ IEEE PAR 1789-2015
• IEC 62386 parts: 101, 102, 207, 250, 251, 252, 253

    Electrical Specification

    Product No. Input Range (Vac) Iout Range (mA) Vout Range (Vdc) Format Dimensions mm
    MU050S150AQI3220 90-305 100-1500 8-54 Back feed 124*76*25
    MU050S150AQI3320 90-305 100-1500 8-54 Side feed 124*76*25
    MU050S150AQI3020 90-305 100-1500 8-54 Slim 359*30*21.5

    Dimension

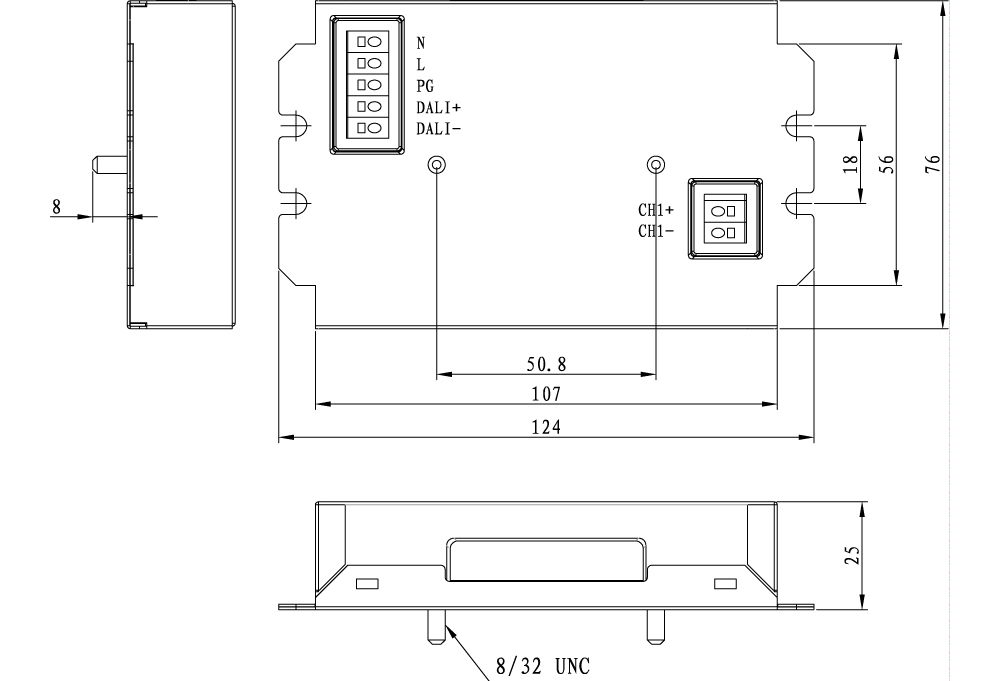

    • MU050S150AQI3220DimensionMU050S150AQI3220

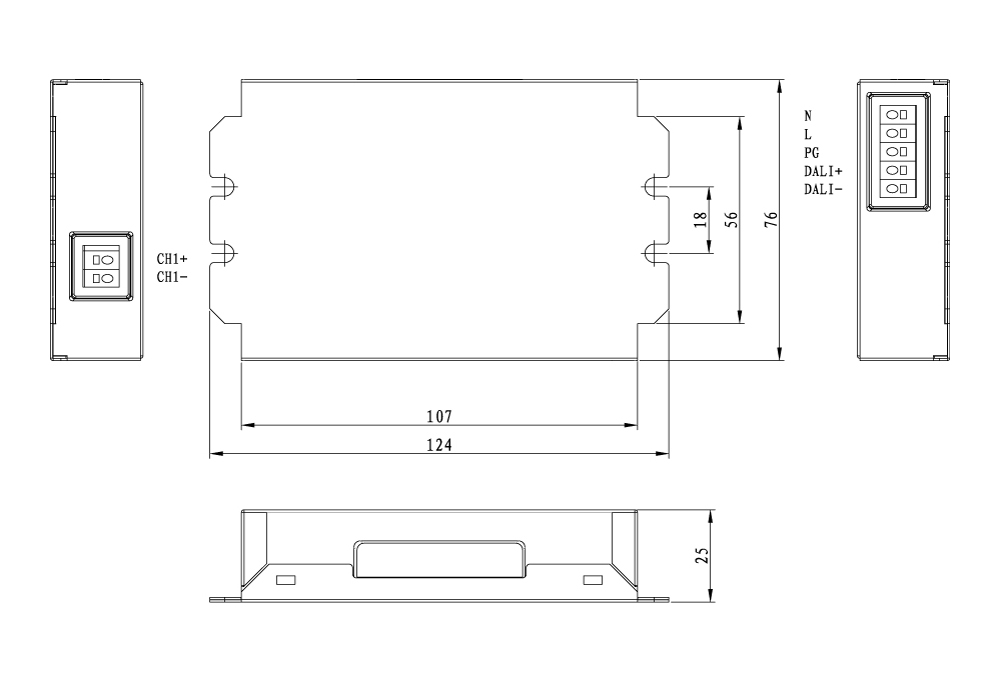

    • MU050S150AQI3320DimensionMU050S150AQI3320

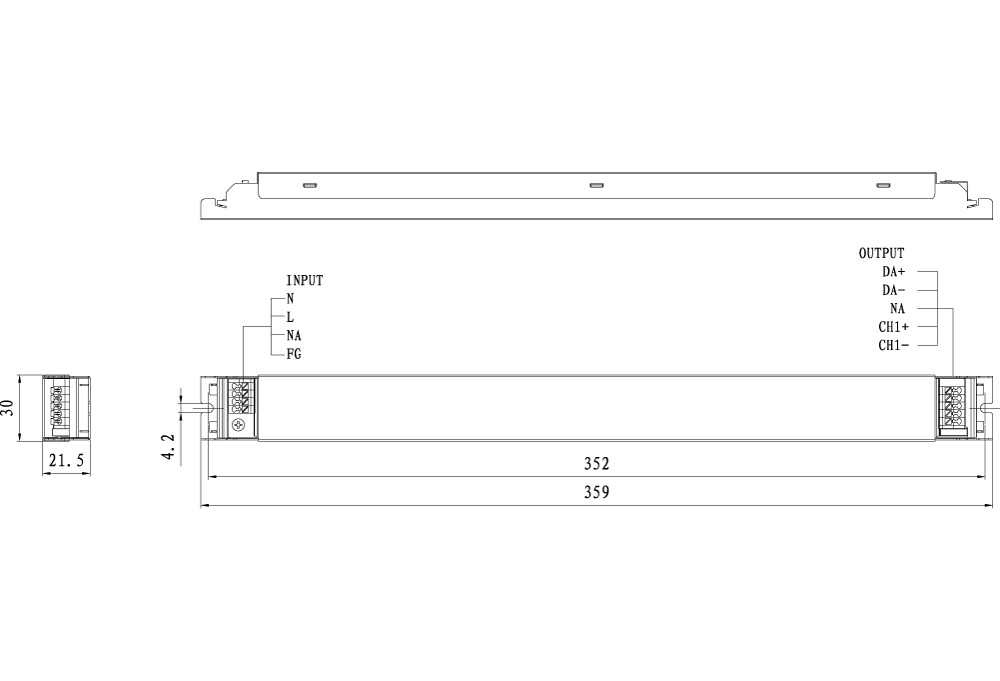

    • MU050S150AQI3020DimensionMU050S150AQI3020
