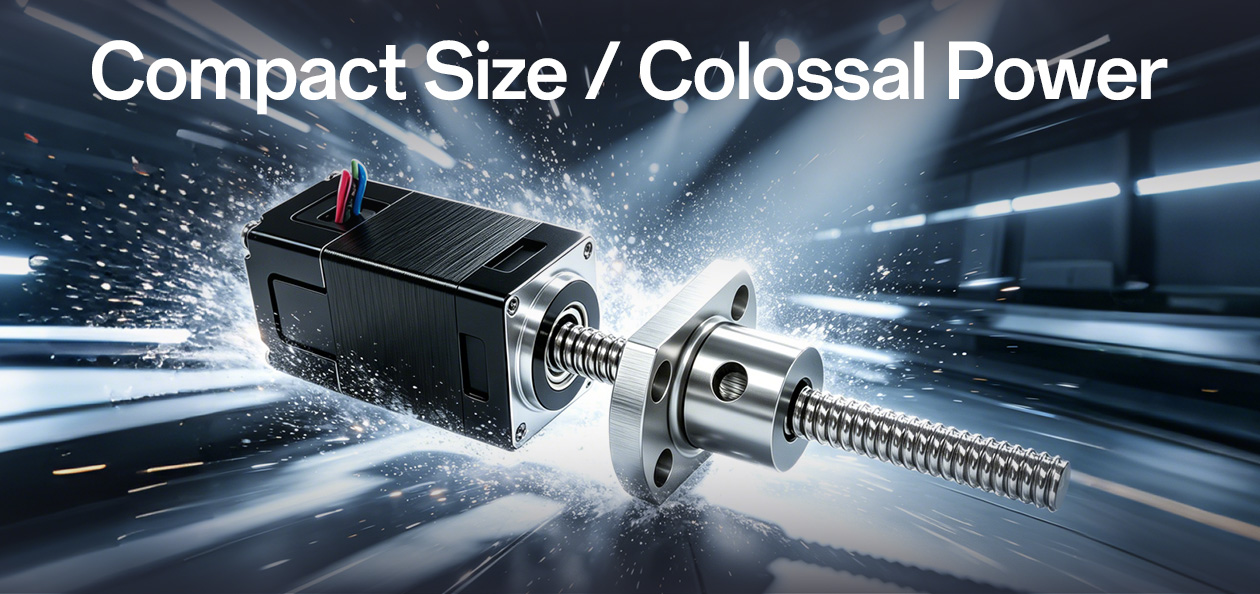

NEMA 6 Ball Screw Linear Stepper Motor | New Solution for Miniaturized Precision Linear Actuator
As a professional motion control product and solution provider, MOONS' is pleased to announce the launch of the NEMA 6 Ball Screw Linear Stepper Motor. Specifically engineered for cutting-edge applications demanding stringent spatial constraints, high positioning accuracy, and reliable operational stability, this product integrates high-performance ball screw technology into an ultra-compact NEMA 6 form factor. This advancement further strengthens MOONS' position in the field of miniaturized precision linear actuation, delivering professionally tailored drive solutions for medical devices, laboratory automation, precision optics, and high-end consumer electronics.
Conventional linear actuator solutions present inherent limitations when applied to miniaturized equipment, including excessive form factor, restricted positioning precision, and suboptimal power efficiency. The MOONS' NEMA 6 Ball Screw Linear Stepper Motor consolidates proven stepper motor technology with a high-performance ball screw mechanism into a compact NEMA 6 housing (approximately 14mm square). This design achieves an optimal balance between miniaturized footprint and superior motion performance, offering customers a fully integrated, plug-and-play precision linear actuation solution.
Product Features

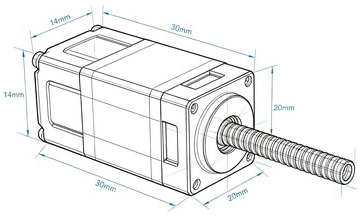

01 Ultra-Compact Miniaturized Design
Featuring a standard NEMA 6 mounting flange (approximately 14 mm × 14 mm) and a direct-drive ball screw structure, the motor eliminates the need for additional couplings and separate bearing housings, resulting in a simplified and highly compact design. It is ideally suited for portable devices with limited installation space and precision instruments with complex internal layouts, providing greater flexibility for system design.
02 Ball Screw Drive – High Efficiency and Precision Motion

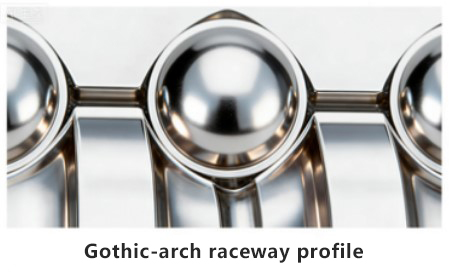

Compared with conventional lead screw designs, the integrated precision ball screw achieves transmission efficiency of over 90%. For the same thrust output, it requires lower motor torque, enabling smoother operation and reduced heat generation. Combined with a classic Gothic-arch groove profile, the design minimizes axial backlash. Optimized preload further enhances micron-level positioning accuracy and structural rigidity, making the motor ideal for precision alignment, micro-volume pipetting, and other high-precision applications.

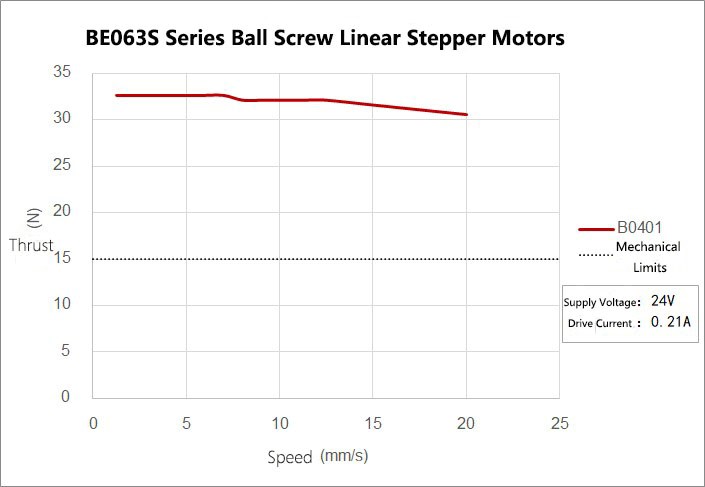

03 Superior Thrust Performance – Stable Dynamic Response
Despite its compact form factor, the motor delivers holding torque and axial thrust that outperform conventional products in the same size class, thanks to MOONS' optimized magnetic circuit design and premium materials. When paired with MOONS' high-performance stepper drives, it provides fast response, smooth operation, and precise motion control.
