    • 12W Phase Cut Solo Series

    Operating from 90~305VAC. Compatible with Phase Cut and 0-10V signal.
    ● Input voltage: 90~305 VAC
    ● Dimming performance: 0→0.1%→100% dimming range, Flicker Free, Linear/Logarithmic Curve,16 bits resolution
    ● Phase Cut dimming available: 100~120VAC
    ● Output range: 100-530mA settable output current, 8-54Vdc output voltage range
    ● Surge: L-N:2.5KV
    ● IP Level: IP20, Built-in type
    ● 5-year Warranty
    ● Flicker Free: CEC title 24 JA10/ IEEE PAR 1789-2015
    Brand Name: MOONS'

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Consistency And Dimming Effect Demonstration
  • Proved Dimmer Compatibility
  • Operating Logic
  • Programmable Function

    • Description

    MOONS' 12W S Series 1 Channel LED Driver are designed for 0-10V dimming and Phase Cut dimming including: TRIAC (forward-phase or leading-edge) and ELV (reverse phase or trailing-edge), and Phase Cut dimming is only available at 100-120VAC input voltage. It is a wireless programmable LED driver with MOONS' Touch setting tool.

    Features

    ▪ Input range: 90~305Vac
    ▪ Output voltage range: 8-54Vdc
    ▪ Output current range: 100-530mA
    ▪ Dimming method: Phase Cut, 0-10V
    ▪ Dimming range: 0.1-100%, Dim to off
    ▪ Compliant with IEEE 1789 Flicker Free Standard
    ▪ Weight: 170g

    Consistency And Dimming Effect Demonstration

    Proved Dimmer Compatibility

    Manufacturer Model Type
    LUTRON DVCL-153P Leading Edge (Forward Phase)
    LUTRON DVRF-6L Leading Edge (Forward Phase)
    LUTRON STCL-153M Leading Edge (Forward Phase)
    LUTRON PD-6WCL Leading Edge (Forward Phase)
    LUTRON NCL-153P Leading Edge (Forward Phase)
    JIMBO NKW-RLE5S0 Leading Edge (Forward Phase)
    LUTRON PD-5NE Trailing Edge (Reverse Phase)
    Panasonic WT57572 Trailing Edge (Reverse Phase)
    DNL BDC300S Leading Edge (Forward Phase)
    Lighting SOU SZA1801 Leading Edge (Forward Phase)
    DAIKO DP-39672G Trailing Edge (Reverse Phase)

    Operating Logic

    Settable Output
    Output voltage range: 8~54VDC, auto-adapting according to fixture's Vf.
    Output current range: 100~530mA, can be set via Touch Setting Tool.

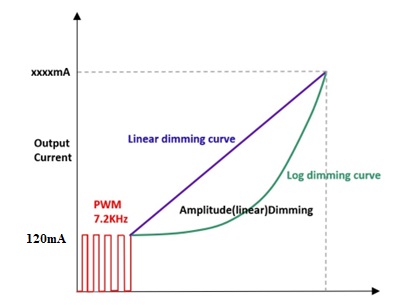

    In the range of 120~530mA, the current operates in continuous mode;
    In the range of 0~120mA, the current operates in PWM dimming mode, and the PWM frequency 7.2KHZ.
    Settable Output

    Programmable Function

    Touch Setting Programming Touch Setting Programming

    Data Sheet

    Model List

    Part Number Output Voltage Range Output Current Range Dimming Description Certification
    PU012S053AQIA90 8-54Vdc 100-530mA Phase Cut, 0-10V UL/CUL Class P

    Model Encoding

    PU012S053AQIA90
    PCase's material: Plastic
    UInput Voltage: 90~305VAC
    012Driver's output power: 12W
    SDriver's series name
    053Driver's rated output current: 530mA
    A1 output channel
    QDriver's type: constant current driver
    IIntelligent output, output current can be set by software
    A90Define driver's function, please refer to model list table get detailed information
