CASAMBI 50W Quad Series-1
  • CASAMBI 50W Quad Series-1
  • CASAMBI 50W Quad Series-2
  • CASAMBI 50W Quad Series-3
    • CASAMBI 50W Quad Series-1

    • CASAMBI 50W Quad Series

    4 channels, Color mixing, tunable white, dimming application
    ● Input voltage: 90~305 VAC
    ● Output current range: 200~1050mA (settable)
    ● Dimming performance: 0→0.1%→100% dimming range, Flicker Free, Linear/Logarithmic Curve,16 bits resolution
    ● 4 Channels, constant current driver
    ● Total power 50W, 50W max per channel
    ● NFC programming
    ● Waterproof: IP20, Built-in type
    Brand Name: MOONS'

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • Features
  • Programmable Function

    • Description

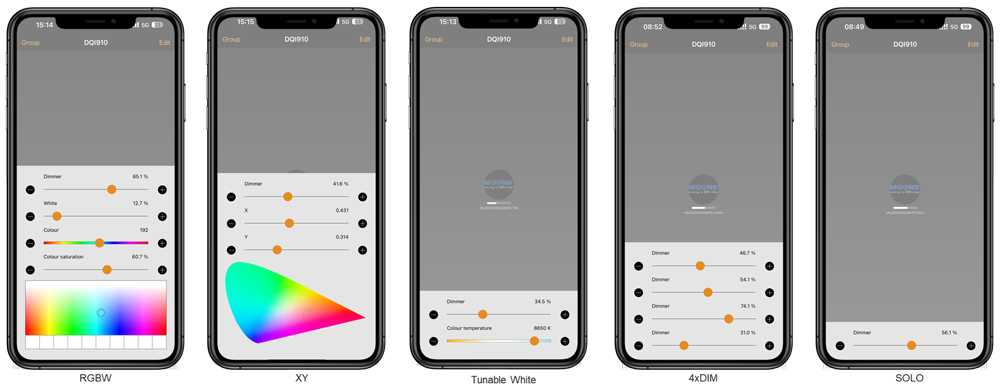

    MOONS' 50W S Series 4 Channels CASAMBI LED Drivers are designed for wireless color mixing, tunable white and dimming application, own 5 profiles. Description

    Features

    ▪ Input range: 90~305Vac
    ▪ Output voltage range: 8-50Vdc
    ▪ Output current range: 200-1050mA
    ▪ Dimming method: CASAMBI, BLE5.3
    ▪ Dimming range: 0.1-100%, Dim to off
    ▪ Compliant with IEEE 1789 Flicker Free Standard
    ▪ Weight: 326g

    Programmable Function

    Touch Setting Programming Touch Setting Programming

    Data Sheet

    Model List

    Part Number Output Voltage Range Output Current Range Dimming Description Certification
    MU050S105DQI910 8-50Vdc 200-1050mA CASAMBI, BLE5.3 UL/CUL Class P

    Model Encoding

    MU050S150DQI910
    MCase's material: Metal
    UInput Voltage: 90~305VAC
    050Driver's output power: 50W
    SDriver's series name
    150Driver's rated output current: 1500mA
    D4 output channels
    QDriver's type: constant current driver
    IIntelligent output, output current can be set by software
    910Define driver's function, please refer to model list table get detailed information

    Compare Item Price
    (USD)
    MU050S105DQI910
    Downloads
    2D Drawings
    Title Type Size（KB） Download
    2D-MU050S105DQI910 PDF 23
    3D Model
    Title Type Size（KB） Download
    3D-MU050S105DQI910 STEP 3079
    Specifications
    Title Type Size（KB） Download
    Specification-MU050S105DQI910 PDF 906
    Certification
    Title Type Size（KB） Download
    UL-MU050S105DQI910 PDF 341
    Software
    Title Type Size（KB） Download
    NFC 1.2.0.8 Beta ZIP 5952
    NFC 1.2.0.8 Beta Release note TXT 0
