ID CSM Series Integrated Step-Servo Motors
CSM series integrated DC stepper servo motor, support speed control, only through I/O can control the start and stop, panel speed control, support encoder feedback
● DC stepper servo motor
● Integrated design
● I/O control
● Quick plug connector
● Low speed high torque, stop automatic lock
● Integrated design
● I/O control
● Quick plug connector
● Low speed high torque, stop automatic lock
Brand Name: MOONS'
Payment Methods
Buyer Protection:
Free Exchange
| Model | CSM34X3L-A | CSM34X5L-A |
|---|---|---|
| Input Voltage | 24-70VDC | |
| Maximum Output Torque | 5.68Nm | 7.46Nm |
| Motor Inertia | 2580 gcm2 | 3860 gcm2 |
| Control Method | IO control | |
| Speed Ajustment | Panel adjustment | |
| Speed Regulation Range | 0-2000rpm | |
| Encoder Feedback | Support | |
| Blocking Detection | Support | |
| Alarm Output | Support | |
| Using Environment | 0-40℃ | |
| Ambient Temperature | Below 90% （no condensation ） | |
| Compare | Item | Price (USD) |
|---|---|---|
|
|
CSM34X3L-A | |
|
|
CSM34X5L-A |

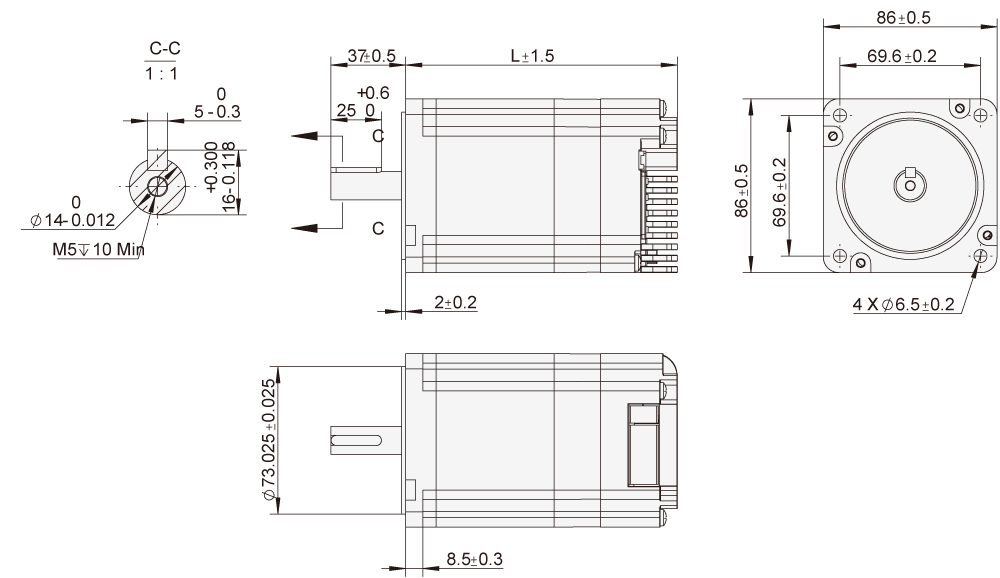

■ Mechanical Dimension (Units: mm)
| Model | “L” |
|---|---|
| CSM34X3L-A | 134 |
| CSM34X5L-A | 161.8 |
2D Drawings
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| CSM34X3L-A_2D.pdf | 61 | ||
| CSM34X5L-A_2D.pdf | 61 |
3D Model
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| CSM34X3L-A_3D.stp | STEP | 8289 | |
| CSM34X5L-A_3D.stp | STEP | 8289 |
User Manual
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| CSM Hardware Manual_EN20241225..pdf | 2592 |
Certification
| Title | Type | Size（KB） | Download |
|---|---|---|---|
| ROHS declaration-2025-A0 EN.pdf | 507 | ||
| Integrated Step-Servo Motor CE Certification.pdf | 1430 |
