    Hybrid + permanent magnet technology, NEMA05 (φ13mm outer diameter), multiple speed ratio models available (16/66/271 speed ratios), multiple step angle options (30°/1.875°/0.45°/0.11°), precise control, low vibration and low noise.
    ● Small size: NEMA05 (φ13mm outer diameter)
    ● High torque: Holding torque 294mNm
    ● Wide load inertia matching range
    Brand Name: MOONS'

    * Free shipping to North America and most of Europe for orders of $100 or more

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

    We've taken the best parts of a Hybrid Stepper, PM stepper, and a BLDC motor, and combined them to create a motor that acts as a high-speed BLDC motor with the benefits of Hybrid Stepper technology: precise positioning control, position holding, and low-speed operations. This motor opens new possibilities for engineers to create motion that was not feasible before. Imagine being able to precisely control the movement, stop and hold the position, and then drive the motor at speeds of 9,000 RPM. No other motor on the market today can do that. 2-phase 13mm high-speed stepper motor specification

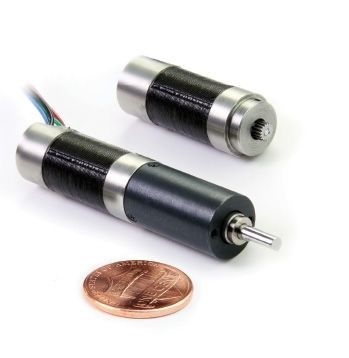

    2-phase 13mm high-speed stepper motor

    HPM Technology

    HPM stands for Hybrid-PM-Mix. It's the first motor of its kind. We've combined the stator of a Hybrid Stepper and a rotor of a PM motor in a form factor of a high-speed BLDC. The result is a motor that behaves like a typical high-speed BLDC with the added benefits of Hybrid steppers: precise position control and position holding.

    Low Noise and Vibration

    The motor is free of buzzing and humming associated with conventional steppers, making it ideal for applications where noise can be of concern. The NEMA05 Series is also a low vibration and low resonance motor that introduces virtually zero vibration to the system, even at high speed.

    Just 13mm Diameter

    The NEMA05 Series is a small motor with a frame size of just 13 mm making it one of the smallest stepper motors we offer. This makes it perfect for small applications with minimal space.

    High Speed

    The NEMA05 Series can reach speeds up to 9,000 RPMs thanks to the special design and large step angle. This makes the motor great for small applications that require high speeds.

    Precise Control

    The NEMA05 Series has a 30° step angle which allows the motor to have positional control in an open loop design. When paired with a gearhead, the step angle can be reduced to accommodate even the most demanding application.

    NEMA05 Series Gearbox

    NEMA05 Series Gearbox

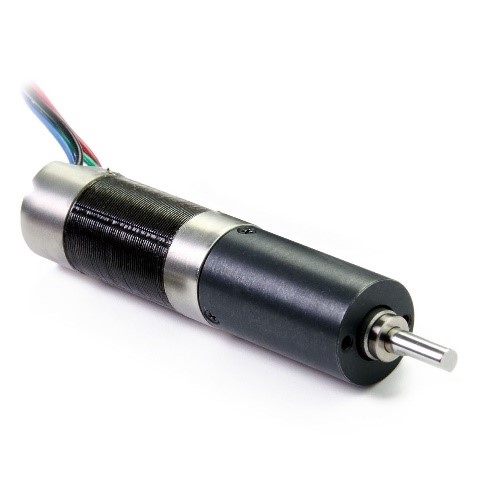

    The NEMA05 can be paired with different gearheads to accommodate a wide range of operating speeds while maintaining needed torque output. Gear ratios include: 16:1, 66:1, and 271:1. Additional gear ratios are available upon request.

    Variety of Applications

    The NEMA05 Series is used in many different applications including electrical oil valves, electric grippers, syringe pumps, miniature hydraulic pumps, and more.
    Electric GrippersElectric Grippers
    Miniature Hydraulic PumpMiniature Hydraulic Pump
    Electric Oil ValveElectric Oil Valve
    Syringe PumpsSyringe Pumps

    Data Sheet

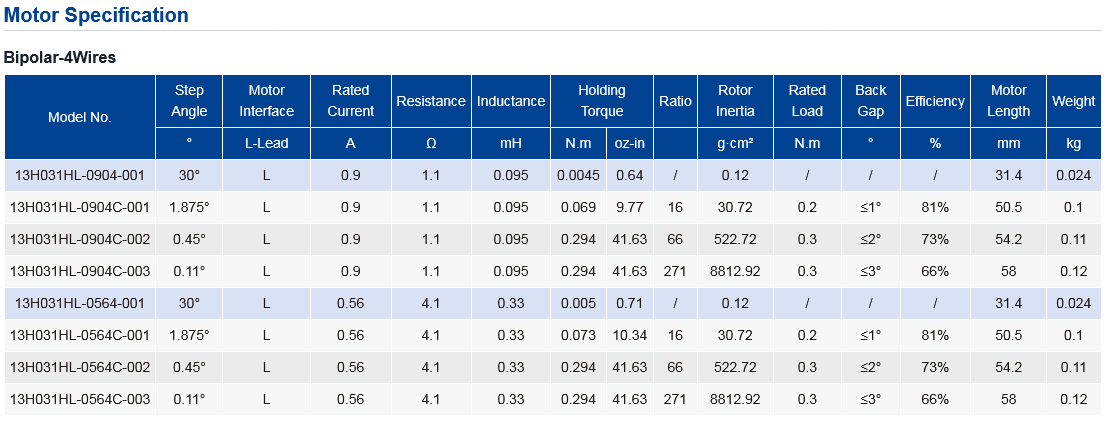

    Motor Specification

    Bipolar-4Wires
    Model No. Step Angle Motor Interface Rated Current Resistance Inductance Holding Torque Ratio Rotor Inertia Rated Load Back Gap Efficiency Motor Length Weight
    ° L-Lead A Ω mH N.m oz-in   g·cm² N.m ° % mm kg
    13H031HL-0904-001 30° L 0.9 1.1 0.095 0.0045 0.64 / 0.12 / / / 31.4 0.024
    13H031HL-0904C-001 1.875° L 0.9 1.1 0.095 0.069 9.77 16 30.72 0.2 ≤1° 81% 50.5 0.1
    13H031HL-0904C-002 0.45° L 0.9 1.1 0.095 0.294 41.63 66 522.72 0.3 ≤2° 73% 54.2 0.11
    13H031HL-0904C-003 0.11° L 0.9 1.1 0.095 0.294 41.63 271 8812.92 0.3 ≤3° 66% 58 0.12
    13H031HL-0564-001 30° L 0.56 4.1 0.33 0.005 0.71 / 0.12 / / / 31.4 0.024
    13H031HL-0564C-001 1.875° L 0.56 4.1 0.33 0.073 10.34 16 30.72 0.2 ≤1° 81% 50.5 0.1
    13H031HL-0564C-002 0.45° L 0.56 4.1 0.33 0.294 41.63 66 522.72 0.3 ≤2° 73% 54.2 0.11
    13H031HL-0564C-003 0.11° L 0.56 4.1 0.33 0.294 41.63 271 8812.92 0.3 ≤3° 66% 58 0.12

    Compare Item Price
    (USD)
    13H031HL-0904-001
    13H031HL-0904C-001
    13H031HL-0904C-002
    13H031HL-0904C-003
    13H031HL-0564-001
    13H031HL-0564C-001
    13H031HL-0564C-002
    13H031HL-0564C-003
       Torque Speed Curves

    Torque Speed Curves

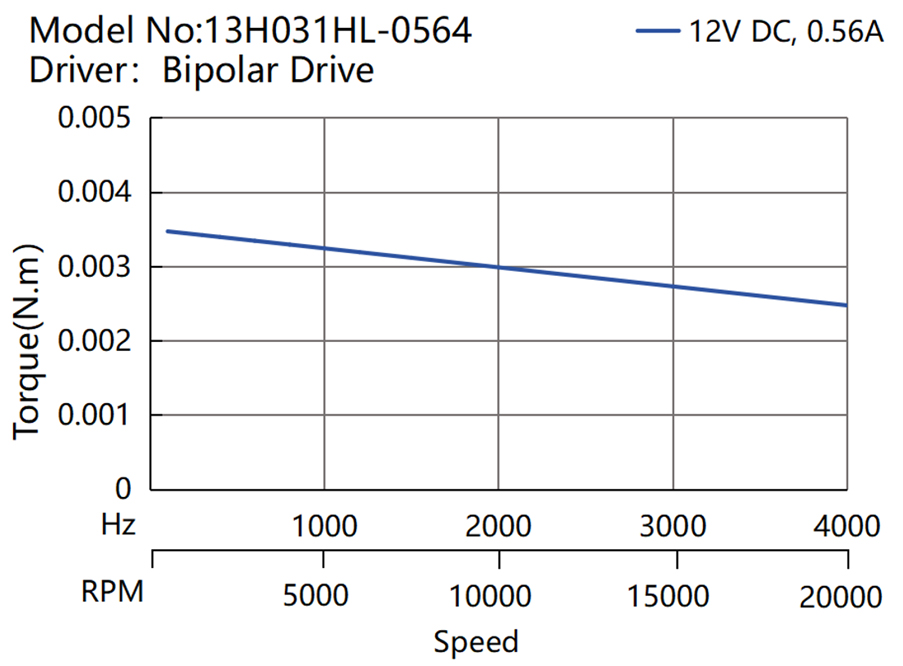

    13H031HL-0564C

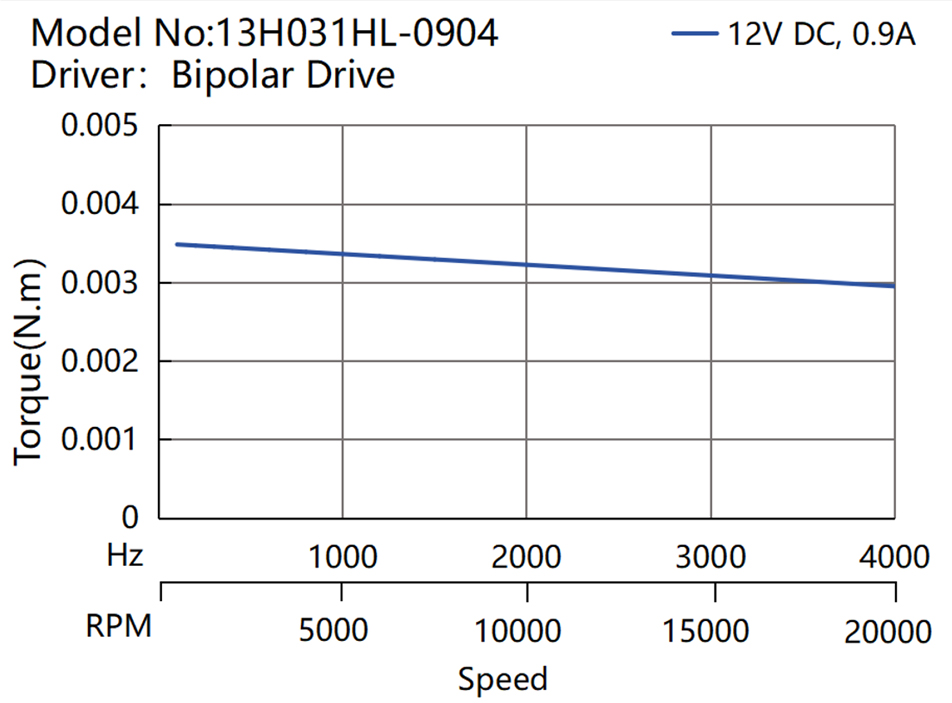

    13H031HL-0904C
