NEMA14 Ball Screw Hybrid Linear Stepper Motors

NEMA14, Ball screw linear stepper motor actuators, High performance, Exceptional endurance, Low noise, Highly effective. Multiple options: different size of motors, different types of leadscrews, different types of nuts.
● High mechanical efficiency
● High accuracy
● High rigidity
Brand Name:
Price: USD  410.0  -  626.0  EA

* Free shipping to North America and most of Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

MOONS's ball screw linear stepper motors are designed based on the know-how technology of hybrid stepper motors, ball screws, and nuts. Provide high torque, high precision, and high efficiency to fit the application needs of designers. In the case of external linear actuators, the lead screw is permanently attached to the motor shaft and turns with the shaft when the motor is energized. If an externally threaded nut is mounted on the lead screw and secured against rotating by an external guide, the threaded nut moves along the lead screw.
The combination of motor styles, motor sizes, ball screws, and nuts, gives the freedom to use motors of different form factors to exactly fit in the application. And, it provides the best performance with any drive and power supply.
NEMA14 Ball screw linear stepper motors

High mechanical efficiency

The Ball screws of Linear stepper Motors have outstanding transmission efficiency of over 90%, incomparably higher than lead screws. Their required torque is just less than a third of what the lead screws require. Therefore, it is easier to transfer a linear motion into a rotary motion.
mechanical efficiency of NEMA 14 Ball Screw Linear stepper Motors

High accuracy

The ball screw of the linear stepper motors adopts the Gothic arch groove profile, and its axial clearance can be adjusted at very fine intervals and can be rotated slightly. In addition, by giving a preload to the screw, the axial clearance could be adjusted to 0 to achieve higher accuracy. The repetitive positioning accuracy of the ball screw linear stepperping motor can reach ±0.02mm, the screw diameter is up to 10mm, and the lead starts from 0.01mm/rev. Various stroke lengths, lead wires, and end treatments of the screw rods can be customized.
Groove profile of nema 14 Ball Screw Linear stepper Motors

High rigidity

The Ball screws of linear stepper motors maintain excellent durability achieved by carefully selected materials, proper heat treatment, and machining with advanced production technologies. Ball screws are generally manufactured to maintain the minimum standard hardness at 58 HRC with the materials listed on the right table.The overall hardness far exceeds the combination of threaded screws and nuts.
Materials and hardness of nema 14 Ball Screw Linear stepper Motors

NEMA14 Ball Screw Linear Motors Stepper Standard Models for stock

Size Motor Series   Lead Screw Options   Screw Length Options   Nut Options   End Machining Code   Rated Current Options
35*35 BE143S - B0801 - 75,100,125,150,
175,200,225,250
- AK1 - 0,S - 150
B0802 AK1
B0805 BU1
B0808 BM1
The ordering information of NEMA14 Ball Screw Linear Stepper Motors

Compare Item Price
(USD)
Buy Now
BE143S-B0801-75-AK1-0-150 $410.00
BE143S-B0801-100-AK1-0-150 $410.00
BE143S-B0801-125-AK1-0-150 $410.00
BE143S-B0801-150-AK1-S-150 $430.00
BE143S-B0801-175-AK1-S-150 $430.00
BE143S-B0801-200-AK1-S-150 $460.00
BE143S-B0801-225-AK1-S-150 $460.00
BE143S-B0801-250-AK1-S-150 $460.00
BE143S-B0802-75-AK1-0-150 $410.00
BE143S-B0802-100-AK1-0-150 $410.00
BE143S-B0802-125-AK1-0-150 $410.00
BE143S-B0802-150-AK1-S-150 $430.00
BE143S-B0802-175-AK1-S-150 $430.00
BE143S-B0802-200-AK1-S-150 $460.00
BE143S-B0802-225-AK1-S-150 $460.00
BE143S-B0802-250-AK1-S-150 $460.00
BE143S-B0805-75-BU1-0-150 $502.00
BE143S-B0805-100-BU1-0-150 $502.00
BE143S-B0805-125-BU1-0-150 $502.00
BE143S-B0805-150-BU1-S-150 $518.00
BE143S-B0805-175-BU1-S-150 $518.00
BE143S-B0805-200-BU1-S-150 $548.00
BE143S-B0805-225-BU1-S-150 $548.00
BE143S-B0805-250-BU1-S-150 $548.00
BE143S-B0808-75-BM1-0-150 $557.00
BE143S-B0808-100-BM1-0-150 $557.00
BE143S-B0808-125-BM1-0-150 $577.00
BE143S-B0808-150-BM1-S-150 $577.00
BE143S-B0808-175-BM1-S-150 $587.00
BE143S-B0808-200-BM1-S-150 $587.00
BE143S-B0808-225-BM1-S-150 $626.00
BE143S-B0808-250-BM1-S-150 $626.00

Speed - Force Reference Curve of NEMA14 Ball Screw Linear stepper Motors

  • Speed - Force Reference Curve of NEMA14 Ball Screw Linear stepper Motors
  • Speed - Force Reference Curve of NEMA14 Ball Screw Linear stepper Motors
  • Speed - Force Reference Curve of NEMA14 Ball Screw Linear stepper Motors
  • Speed - Force Reference Curve of NEMA14 Ball Screw Linear stepper Motors

NEMA14 Ball Screw Linear stepper Motors

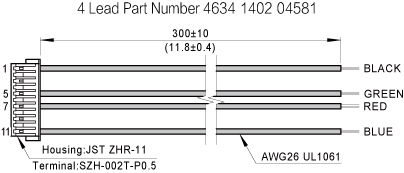

Mating connector with leads
The harness drawing of NEMA14 Ball Screw Linear stepper Motors

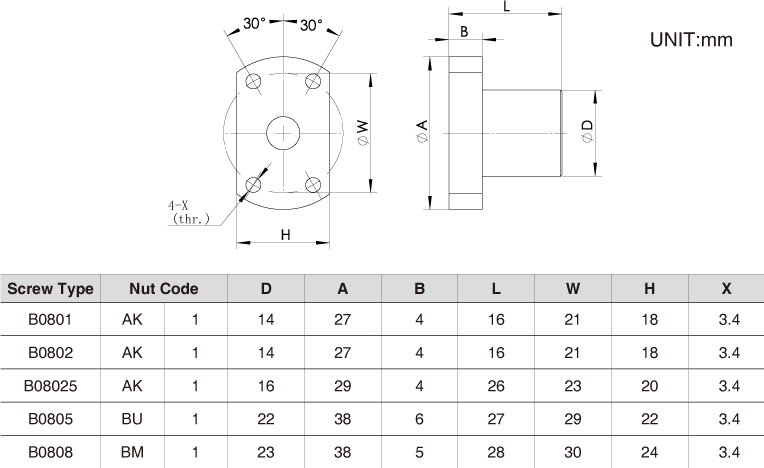

Nut Dimension
The Nut Dimension of NEMA14 Ball Screw Linear stepper Motors

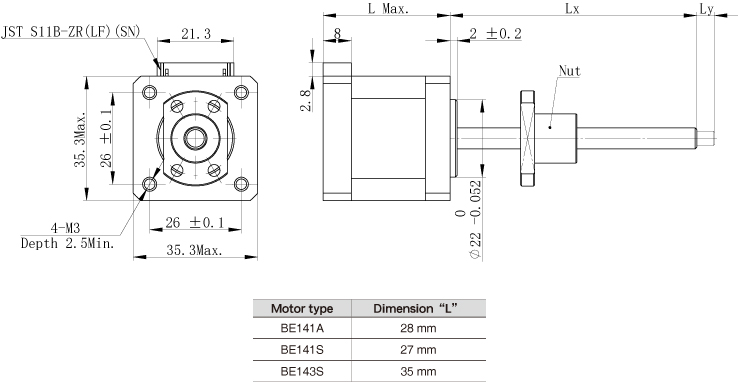

Motor Dimension
The motor dimension of NEMA14 Ball Screw Linear stepper Motors

2D Drawings
Title Type Size(KB) Download
BE143S-B0801-75-AK1-0-150 2D Drawing PDF 349
BE143S-B0808-225-BM1-S-150 2D Drawing PDF 348
BE143S-B0808-125-BM1-0-150 2D Drawing PDF 348
BE143S-B0801-175-AK1-S-150 2D Drawing PDF 349
BE143S-B0801-250-AK1-S-150 2D Drawing PDF 360
BE143S-B0805-125-BU1-0-150 2D Drawing PDF 348
BE143S-B0801-150-AK1-S-150 2D Drawing PDF 349
BE143S-B0801-100-AK1-0-150 2D Drawing PDF 349
BE143S-B0802-75-AK1-0-150 2D Drawing PDF 349
BE143S-B0802-125-AK1-0-150 2D Drawing PDF 349
BE143S-B0808-200-BM1-S-150 2D Drawing PDF 348
BE143S-B0802-100-AK1-0-150 2D Drawing PDF 350
BE143S-B0801-225-AK1-S-150 2D Drawing PDF 349
BE143S-B0805-75-BU1-0-150 2D Drawing PDF 349
BE143S-B0805-250-BU1-S-150 2D Drawing PDF 360
BE143S-B0805-225-BU1-S-150 2D Drawing PDF 349
BE143S-B0808-75-BM1-0-150 2D Drawing PDF 348
BE143S-B0808-250-BM1-S-150 2D Drawing PDF 359
BE143S-B0805-100-BU1-0-150 2D Drawing PDF 360
BE143S-B0802-200-AK1-S-150 2D Drawing PDF 349
BE143S-B0802-150-AK1-S-150 2D Drawing PDF 350
BE143S-B0805-150-BU1-S-150 2D Drawing PDF 349
BE143S-B0805-200-BU1-S-150 2D Drawing PDF 349
BE143S-B0808-175-BM1-S-150 2D Drawing PDF 348
BE143S-B0802-175-AK1-S-150 2D Drawing PDF 349
BE143S-B0805-175-BU1-S-150 2D Drawing PDF 349
BE143S-B0808-150-BM1-S-150 2D Drawing PDF 348
BE143S-B0802-250-AK1-S-150 2D Drawing PDF 360
BE143S-B0801-200-AK1-S-150 2D Drawing PDF 349
BE143S-B0801-125-AK1-0-150 2D Drawing PDF 349
BE143S-B0802-225-AK1-S-150 2D Drawing PDF 349
BE143S-B0808-100-BM1-0-150 2D Drawing PDF 348
3D Model

MOONS' often modify linear actuators to meet application needs. Typical changes include:

• Encoder Options
• Brake Options
• Ball screw End Machining
• Ball screws: lengths, end machining, and so on.
• Nuts: basic style, mounting, and so on.
To help our customer's design efforts, standardized leadscrew features are available.

Encoder Options - Suitable for applications that require feedback

Parameter
Parameter
Dimensional Information
Dimensional Information
Mating Connector With Leads
Mating Connector With Leads

Brake Options

Parameter
Parameter
Dimensional Information
Dimensional Information
Ball screw End Machining

MOONS' can customize the length of the ball screw, end processing, and nuts style, mounting so on
Ball screw End Machining

For safe use, you need to pay attention to the following points:

Lubrication

When using the ball screw products, lubricant should be required. If lubricant is not applied with, the problem such as increase of torque and shortened life occurs. Applying lubricant can minimize temperature increases, a decline of mechanical efficiency due to friction, and deterioration of accuracy caused by wear.

Fall carefully

Since a ball screw has a low friction factor, its shaft or nut could potentially fall off due to its own weight. When you move the product, please be careful not to slip due to your own weight.

Do not disassemble a nut.

When balls have been dropped off the nut or the nut has been removed from a shaft, do not attempt to reassemble them yourself and return them to our company for repair.(In this case, repairing charges are required.)If it necessary to disassemble the nut by yourself, Please consult with our technical department first.

Pay careful attention to mounting accuracy.

A moment load caused by misalignment of a ball screw, bearing, guide, nut, and housing and improper angularity may result in malfunction, extraordinary noise, abnormal vibration, shorter product life as well as breakage of screw shaft due to rotating bending fatigue. Be careful with such defects because they may lead to a serious accident.

Working Temperature

Normally,The BSM Series work temperature range is 0~60 ℃ .If it necessary to work beyond the recommended temperatures, Please consult with our technical department first.
