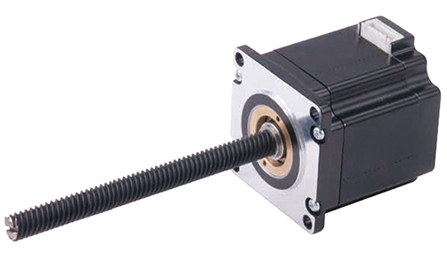

NEMA23 Hybrid Linear Stepper Motors

NEMA23, 2 Phase, 1.8 degree, Linear stepper motors, High performance, Exceptional endurance, Low noise, Highly effective.  Multiple options: different size of motors, different types of leadscrews, different types of nuts.
● Up to 444N@300RPM rated thrust
● Offer constant Force Technology
● Ship within 3 business days of ordering
● Offer customizations such as an brake and an encoder option.
Brand Name: MOONS'
Price: USD  148.0  -  192.0  EA

Free shipping to North America and Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

MOONS’ linear stepper motor actuators are designed based on the know-how technology of hybrid step motors, lead screw and nuts. The LSM Series linear stepper motors provide high torque, high precision, and high efficiency to fit the application needs of designers. He combination of lead screw motor styles, sizes, leadscrews and nuts, gives the freedom to use motors of different form factors to exactly fit in the application. And, it provides the best performance with any drive and power supply.

Specification

Phases 2
Step Accuracy ±5%
IP Rating 40
Approvals RoHS
Operating Temp. -20℃~+50℃
Insulation Class B(130℃)
Insulation Resistance 100MegOhms

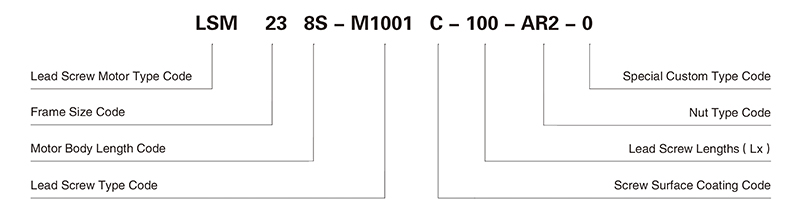

Model Numbering System

Standard Model

Model
Number
Motor
Length
Torque
Curves
Rated
Current
Winding
Resistance
Screw
Length
Screw
Diameter
Screw
Lead
Linear
Travel per Step
Rated
Thrust
mm Amps Ohms mm mm mm mm N
LSM238S-T1206-153-AR4-0 57 2.2 1.6 153 12 6 0.03 188
LSM238S-T10105-153-AR2-0 153 10 10.5 0.0525 134
LSM23AS-T1206-153-AR4-0 79 3 1.1 153 12 6 0.03 314
LSM23AS-T10105-153-AR2-0 153 10 10.5 0.0525 224

Options For Quote

Get the exact hybrid linear stepper motor that you need to solve your motion control problem. It’s easy as 1-2-3: Chose your motor, choose your leadscrew, choose your nut.

1.Choose Your Motor

Select motor Motor
Number(mm)
Motor Body
Length(mm)
Current
(Amp/Phase)
Resistance
(Ohm/phase)
Inductance
(mH/Phase)
Step Angle(°)
  • LSM238S
    57
    2.2
    1.6
    7.2
    1.8
  • LSM23AS
    79
    3
    1.1
    5
    1.8
  • LSM23ASP
    79
    3
    1.1
    3.7
    1.8

    Not seeing exactly what you need?

    We can customize your motor to meet your precise speed, torque and current requirements. Using the form below (last step), tell us about your application needs and one of our specialists will match you with a motor that will meet your requirements precisely.

    2.Select Leadscrew

    Select Leadscrew Code SCREW O.D.
    DIMENSION (mm))
    Lead(mm) Travel Per 1.8°Step(mm)



    in mm in mm in mm
  • E09050
    0.3752
    9.53
    0.2
    5.08
    0.0010
    0.0254
  • T10105
    0.3937
    10
    0.4134
    10.5
    0.0021
    0.0525
  • T1206
    0.4725
    12
    0.2363
    6
    0.0012
    0.03
  • M1001
    0.3937
    10
    0.0394
    1
    0.0002
    0.005
  • M1002
    0.3937
    10
    0.0788
    2
    0.0004
    0.010
  • M1005
    0.3937
    10
    0.1969
    5
    0.0010
    0.025
  • M1010
    0.3937
    10
    0.3937
    10
    0.0019
    0.05
  • M1012
    0.3937
    10
    0.4725
    12
    0.0024
    0.06
  • M1016
    0.3937
    10
    0.6299
    16
    0.0032
    0.08
  • M1025
    0.3937
    10
    0.9843
    25
    0.0049
    0.125
  • Enter Desired Leadscrew Length (in millimeters):

    10mm< < 400mm
  • Leadscrew Coating Options:

  • End Machining Options:

  • 3.Choose Your Nut

    Select either a Constant ForceTM Anti-Backlash nut or a Standard nut option:
    Constant ForceTM Anti-Backlash Nut An intuitive leap forward in nut design for lead screw applications, Constant Force Technology utilizes a constant force spring to apply a uniform pressure to the nut at all stages of the motion profile.

    ● Greater consistency and resistance to backlash
    ● Configurable for various torque requirements
    ● Patent pending self-adjusting anti-backlash feature
    ● Polymer nuts are self-lubricating and maintenance free

    Anti-Backlash Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE NUT THREAD DIAMETER (mm) NUT OD (mm) NUT LENGTH (mm)
  • BR2 Anti-Backlash Round 9.53-10 19 25.4
  • BR4 Anti-Backlash Round 12 25.4 38
  • BT2 Anti-Backlash Triangular 9.53-10 19 25.4
  • BT4 Anti-Backlash Triangular 12 25.4 38

    Standard Nuts

    Select Nut NUT CODE IMAGE NUT STYLE FLANGE TYPE NUT THREAD DIAMETER (mm) NUT OD (mm) NUT LENGTH (mm)
  • AR2 Free-running Round 9.53-10 19 25.4
  • AR4 Free-running Round 12 25.4 38
  • AT2 Free-running Triangular 9.53-10 19 25.4
  • AT4 Free-running Triangular 12 25.4 38

    Selected Part Number Is

    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • XXXX -
    • 0

    Please confirm you have selected the motor, the leadscrew and the nut.

    Request For Quote

    Compare Item Price
    (USD)
    Buy Now
    LSM238S-T1206-153-AR4-0 $151.40
    LSM238S-T10105-153-AR2-0 $151.40
    LE234S-T10105-150-AR2-S-210 $151.00
    LE234S-T10105-200-AR2-S-210 $154.00
    LE238S-T1202-100-AR6-S-220 $150.00
    LE238S-T10105-100-AR2-S-220 $150.00
    LE234S-T1202-100-AR6-S-210 $148.00
    LE238S-T1206-200-AR6-S-220 $156.00
    LE238S-T10105-150-AR2-S-220 $153.00
    LE234S-T1202-200-AR6-S-210 $154.00
    LE234S-T1202-150-AR6-S-210 $151.00
    LE234S-T10105-100-AR2-S-210 $148.00
    LE238S-T1206-150-AR6-S-220 $153.00
    LE234S-T1206-200-AR6-S-210 $154.00
    LE234S-T1206-150-AR6-S-210 $151.00
    LE234S-T1206-100-AR6-S-210 $148.00
    LE238S-T1206-100-AR6-S-220 $150.00
    LE238S-T1202-150-AR6-S-220 $153.00
    LE23AS-T1206-200-AR6-S-300 $172.00
    LE23AS-T1206-150-AR6-S-300 $169.00
    LE23AS-E12254-400-AR6-S-150 $191.00
    LE23AS-T1202-350-AR6-S-150 $180.00
    LE23AS-T1202-250-AR6-S-150 $174.00
    LE234S-T1202-300-AR6-S-210 $160.00
    LE234S-T1202-250-AR6-S-210 $157.00
    LE238S-T1206-250-AR6-S-220 $159.00
    LE238S-E12254-300-AR6-S-220 $175.00
    LE234S-T10105-250-AR2-S-210 $157.00
    LE23AS-E12254-100-AR6-S-150 $173.00
    LE23AS-T1202-150-AR6-S-150 $168.00
    LE23AS-T10105-350-AR2-S-300 $181.00
    LE23AS-E12254-150-AR6-S-300 $177.00
    LE23AS-T10105-100-AR2-S-150 $165.00
    LE234S-T10105-400-AR2-S-210 $166.00
    LE23AS-E12254-250-AR6-S-300 $183.00
    LE23AS-T1206-400-AR6-S-300 $184.00
    LE238S-T10105-350-AR2-S-220 $165.00
    LE23AS-T1206-200-AR6-S-150 $171.00
    LE238S-T1202-350-AR6-S-220 $165.00
    LE238S-T1202-250-AR6-S-220 $159.00
    LE238S-T10105-400-AR2-S-220 $168.00
    LE23AS-T1206-300-AR6-S-300 $178.00
    LE23AS-T1206-400-AR6-S-150 $183.00
    LE23AS-T10105-400-AR2-S-300 $184.00
    LE23AS-T10105-400-AR2-S-150 $183.00
    LE23AS-T1202-400-AR6-S-300 $184.00
    LE23AS-T1202-400-AR6-S-150 $183.00
    LE234S-T1206-400-AR6-S-210 $166.00
    LE234S-T1202-400-AR6-S-210 $166.00
    LE238S-T1206-400-AR6-S-220 $168.00
    LE238S-T1202-400-AR6-S-220 $168.00
    LE23AS-T1206-350-AR6-S-300 $181.00
    LE23AS-T1206-250-AR6-S-300 $175.00
    LE23AS-T1206-100-AR6-S-300 $166.00
    LE23AS-T1206-350-AR6-S-150 $180.00
    LE23AS-T1206-300-AR6-S-150 $177.00
    LE23AS-T1206-250-AR6-S-150 $174.00
    LE23AS-T1206-150-AR6-S-150 $168.00
    LE23AS-T1206-100-AR6-S-150 $165.00
    LE23AS-T1202-350-AR6-S-300 $181.00
    LE23AS-T1202-300-AR6-S-300 $178.00
    LE23AS-T1202-250-AR6-S-300 $175.00
    LE23AS-T1202-200-AR6-S-300 $172.00
    LE23AS-T1202-150-AR6-S-300 $169.00
    LE23AS-T1202-100-AR6-S-300 $166.00
    LE23AS-T1202-300-AR6-S-150 $177.00
    LE23AS-T1202-200-AR6-S-150 $171.00
    LE23AS-T10105-300-AR2-S-300 $178.00
    LE23AS-T10105-250-AR2-S-300 $175.00
    LE23AS-T10105-200-AR2-S-300 $172.00
    LE23AS-T10105-150-AR2-S-300 $169.00
    LE23AS-T10105-100-AR2-S-300 $166.00
    LE23AS-T10105-350-AR2-S-150 $180.00
    LE23AS-T10105-300-AR2-S-150 $177.00
    LE23AS-T10105-250-AR2-S-150 $174.00
    LE23AS-T10105-200-AR2-S-150 $171.00
    LE23AS-T10105-150-AR2-S-150 $168.00
    LE23AS-E12254-400-AR6-S-300 $192.00
    LE234S-E12254-400-AR6-S-210 $179.00
    LE238S-E12254-400-AR6-S-220 $181.00
    LE234S-T1206-350-AR6-S-210 $163.00
    LE234S-T1206-300-AR6-S-210 $160.00
    LE234S-T1206-250-AR6-S-210 $157.00
    LE234S-T1202-350-AR6-S-210 $163.00
    LE234S-T10105-350-AR2-S-210 $163.00
    LE234S-T10105-300-AR2-S-210 $160.00
    LE238S-T1206-350-AR6-S-220 $165.00
    LE238S-T1206-300-AR6-S-220 $162.00
    LE238S-T1202-300-AR6-S-220 $162.00
    LE238S-T10105-300-AR2-S-220 $162.00
    LE238S-T10105-250-AR2-S-220 $159.00
    LE238S-T10105-200-AR2-S-220 $156.00
    LE23AS-E12254-350-AR6-S-300 $189.00
    LE23AS-E12254-300-AR6-S-300 $186.00
    LE23AS-E12254-200-AR6-S-300 $180.00
    LE23AS-E12254-100-AR6-S-300 $174.00
    LE23AS-E12254-350-AR6-S-150 $188.00
    LE23AS-E12254-300-AR6-S-150 $185.00
    LE23AS-E12254-250-AR6-S-150 $182.00
    LE23AS-E12254-200-AR6-S-150 $179.00
    LE23AS-E12254-150-AR6-S-150 $176.00
    LE234S-E12254-350-AR6-S-210 $176.00
    LE234S-E12254-300-AR6-S-210 $173.00
    LE234S-E12254-250-AR6-S-210 $170.00
    LE234S-E12254-200-AR6-S-210 $167.00
    LE234S-E12254-150-AR6-S-210 $164.00
    LE234S-E12254-100-AR6-S-210 $161.00
    LE238S-E12254-350-AR6-S-220 $178.00
    LE238S-E12254-250-AR6-S-220 $172.00
    LE238S-E12254-200-AR6-S-220 $169.00
    LE238S-E12254-150-AR6-S-220 $166.00
    LE238S-E12254-100-AR6-S-220 $163.00
    LE238S-T1202-200-AR6-S-220 $156.00
    LE23AS-T1202-100-AR6-S-150 $165.00

    ■ Motor Dimensions: mm
    tupian
    ■ Nut Type Dimensions: mm
    tupian
    ■ Mating connector With Leads(order separately) Dimensions: mm
    tupian

    2D Drawings
    Title Type Size(KB) Date View times Download
    LSM23AS-T1206-153-AR4-0.PDF PDF 350 2017-11-17 2
    LE23AS-T1202-350-AR4-S-300.PDF PDF 355 2018-09-05 1
    LE23AS-T1202-350-AR4-S-300.PDF PDF 355 2018-09-05 1
    LE23AS-T1202-250-AR6-S-300.PDF PDF 366 2018-09-05 1
    LE23AS-T1202-350-AR6-S-300.PDF PDF 366 2018-09-05 1
    LE23AS-T10105-200-AR2-S-150.PDF PDF 355 2018-09-05 1
    LE23AS-T1202-300-AR6-S-300.PDF PDF 366 2018-09-05 1
    LE234S-T10105-150-AR2-S-210.PDF PDF 356 2018-09-03 1
    LE238S-E12254-250-AR6-S-220.PDF PDF 366 2018-09-05 0
    LE23AS-E12254-250-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-T1206-300-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE234S-E12254-200-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE23AS-T1202-350-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE238S-E12254-400-AR6-S-220.PDF PDF 366 2018-09-05 0
    LE23AS-T1206-300-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE238S-T10105-400-AR2-S-220.PDF PDF 355 2018-09-03 0
    LE234S-T1206-350-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T10105-150-AR2-S-300.PDF PDF 356 2018-09-05 0
    LE234S-E12254-100-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE238S-E12254-350-AR6-S-220.PDF PDF 366 2018-09-05 0
    LE23AS-E12254-100-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE238S-T1206-100-AR6-S-220.PDF PDF 367 2018-09-03 0
    LE238S-T1202-150-AR6-S-220.PDF PDF 367 2018-09-03 0
    LE23AS-T1202-250-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE23AS-E12254-300-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE234S-T1202-350-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE238S-T10105-250-AR2-S-220.PDF PDF 355 2018-09-03 0
    LE23AS-T1206-400-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE238S-T1206-150-AR6-S-220.pdf PDF 1029 2018-09-03 0
    LE238S-T10105-350-AR2-S-220.PDF PDF 355 2018-09-03 0
    LE238S-T1202-300-AR4-S-220.PDF PDF 355 2018-09-05 0
    LE23AS-E12254-150-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE23AS-T1202-150-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE23AS-E12254-250-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE238S-T1202-350-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE234S-T1206-100-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE234S-T10105-400-AR2-S-210.PDF PDF 355 2018-09-03 0
    LE234S-T1202-250-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE238S-E12254-150-AR6-S-220.PDF PDF 367 2018-09-03 0
    LE23AS-E12254-400-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-T10105-300-AR2-S-300.PDF PDF 355 2018-09-05 0
    LE23AS-E12254-350-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE23AS-T1206-150-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE238S-T1206-400-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE23AS-T10105-100-AR2-S-150.PDF PDF 356 2018-09-05 0
    LE23AS-E12254-200-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE238S-T1202-400-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE23AS-T10105-150-AR2-S-150.PDF PDF 356 2018-09-05 0
    LE23AS-T10105-200-AR2-S-300.PDF PDF 355 2018-09-05 0
    LE238S-T1202-200-AR6-S-220.PDF PDF 366 2018-12-19 0
    LE238S-T1206-300-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE234S-T1202-200-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T1206-150-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE23AS-T1202-200-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE234S-T1202-300-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T1206-350-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE234S-T10105-350-AR2-S-210.PDF PDF 355 2018-09-03 0
    LE234S-T1202-150-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE23AS-T10105-350-AR2-S-150.PDF PDF 355 2018-09-05 0
    LE23AS-T1202-300-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE23AS-T1202-100-AR6-S-150.PDF PDF 367 2018-12-19 0
    LE234S-T1206-150-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE234S-T1206-400-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-E12254-200-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-E12254-150-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE234S-T1206-200-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE238S-E12254-100-AR6-S-220.PDF PDF 367 2018-09-03 0
    LE234S-E12254-250-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE238S-T10105-100-AR2-S-220.PDF PDF 356 2018-09-03 0
    LE23AS-T10105-400-AR2-S-150.PDF PDF 355 2018-09-05 0
    LE23AS-T1206-250-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE238S-T1206-350-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE234S-T10105-300-AR2-S-210LE234S-T10105-300-AR2-S-210.PDF PDF 355 2018-09-03 0
    LE23AS-E12254-400-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE23AS-T1202-400-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE234S-T1206-300-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-E12254-300-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE23AS-T10105-300-AR2-S-150.PDF PDF 355 2018-09-05 0
    LE238S-T1202-250-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE238S-T1206-250-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE238S-T1206-200-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE234S-T10105-100-AR2-S-210.PDF PDF 356 2018-09-03 0
    LE234S-E12254-400-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T10105-250-AR2-S-300.PDF PDF 355 2018-09-05 0
    LE238S-T10105-150-AR2-S-220.PDF PDF 356 2018-09-03 0
    LE23AS-T1202-150-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE23AS-T10105-350-AR2-S-300.PDF PDF 355 2018-09-05 0
    LE23AS-T10105-250-AR2-S-150.PDF PDF 355 2018-09-05 0
    LE238S-E12254-300-AR6-S-220.PDF PDF 366 2018-09-05 0
    LE234S-T10105-250-AR2-S-210.PDF PDF 355 2018-09-03 0
    LE23AS-T10105-100-AR2-S-300.PDF PDF 356 2018-09-05 0
    LE238S-E12254-200-AR6-S-220.PDF PDF 367 2018-09-05 0
    LE238S-T10105-200-AR2-S-220.PDF PDF 356 2018-09-03 0
    LE234S-T1206-250-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE234S-T1202-400-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE238S-T10105-300-AR2-S-220.PDF PDF 355 2018-09-03 0
    LE23AS-T1202-100-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE23AS-T1206-250-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-T1202-200-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE234S-E12254-150-AR6-S-210.PDF PDF 367 2018-09-03 0
    LE23AS-T1206-400-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE23AS-T1206-200-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE23AS-T10105-400-AR2-S-300.PDF PDF 355 2018-09-05 0
    LE234S-E12254-300-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T1202-400-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE234S-T10105-200-AR2-S-210.PDF PDF 356 2018-09-03 0
    LE238S-T1202-300-AR4-S-220.PDF PDF 355 2018-09-05 0
    LE23AS-T1206-200-AR6-S-150.PDF PDF 366 2018-09-05 0
    LE238S-T1202-100-AR6-S-220.PDF PDF 367 2018-09-03 0
    LE23AS-T1206-350-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-T1206-100-AR6-S-300.PDF PDF 367 2018-09-05 0
    LE238S-T1202-300-AR6-S-220.PDF PDF 366 2018-09-03 0
    LE234S-E12254-350-AR6-S-210.PDF PDF 366 2018-09-03 0
    LE23AS-T1206-100-AR6-S-150.PDF PDF 367 2018-09-05 0
    LE23AS-E12254-350-AR6-S-300.PDF PDF 366 2018-09-05 0
    LE23AS-E12254-100-AR6-S-300.PDF PDF 367 2018-09-05 0
    3D Model
    Title Type Size(KB) Date View times Download
    LE238S-T1202-150-AR6-S-220.STEP STEP 1029 2018-09-05 3
    LSM23AS-T1206-153-AR4-0.STEP STEP 912 2017-11-17 1
    LE234S-T10105-300-AR2-S-210.STEP STEP 850 2018-09-05 1
    LE238S-T10105-100-AR2-S-220.STEP STEP 935 2018-09-03 1
    LE238S-T10105-150-AR2-S-220.STEP STEP 912 2018-09-03 1
    LE23AS-T1206-150-AR6-S-300.STEP STEP 1021 2018-09-05 1
    LE23AS-T1202-400-AR6-S-150.STEP STEP 886 2018-09-05 1
    LE23AS-T10105-400-AR2-S-300.STEP STEP 805 2018-09-05 1
    LE238S-T10105-200-AR2-S-220.STEP STEP 891 2018-09-03 1
    LE23AS-T10105-200-AR2-S-300.STEP STEP 900 2018-09-05 1
    LE23AS-T10105-150-AR2-S-300.STEP STEP 930 2018-09-05 1
    LE23AS-T1202-350-AR6-S-150.STEP STEP 928 2018-09-05 1
    LE234S-T10105-350-AR2-S-210.STEP STEP 887 2018-09-05 1
    LE23AS-T1206-200-AR6-S-300.STEP STEP 982 2018-09-05 1
    LE238S-T1206-400-AR6-S-220.STEP STEP 926 2018-09-03 0
    LE234S-T1202-150-AR4-S-210.STEP STEP 914 2018-09-04 0
    LE23AS-T1206-350-AR6-S-150.STEP STEP 928 2018-09-05 0
    LE234S-E12254-150-AR6-S-210.STEP STEP 1020 2018-09-05 0
    LE238S-T10105-300-AR2-S-220.STEP STEP 832 2018-09-03 0
    LE23AS-T1206-350-AR6-S-300.STEP STEP 928 2018-09-05 0
    LE23AS-E12254-150-AR6-S-150.STEP STEP 1035 2018-09-05 0
    LE23AS-T1206-150-AR6-S-150.STEP STEP 1021 2018-09-05 0
    LE23AS-E12254-250-AR6-S-300.STEP STEP 977 2018-09-05 0
    LE23AS-T1202-300-AR6-S-300.STEP STEP 948 2018-09-05 0
    LE23AS-T10105-200-AR2-S-150.STEP STEP 900 2018-09-05 0
    LE234S-T1202-200-AR6-S-210.STEP STEP 995 2018-09-05 0
    LE23AS-T1202-200-AR6-S-300.STEP STEP 982 2018-09-05 0
    LE234S-T1202-100-AR6-S-210.STEP STEP 1043 2018-09-05 0
    LE238S-T1202-250-AR6-S-220.STEP STEP 984 2018-09-05 0
    LE234S-T1202-150-AR6-S-210.STEP STEP 1016 2018-09-05 0
    LE23AS-E12254-100-AR6-S-300.STEP STEP 1053 2018-09-05 0
    LE23AS-T1206-250-AR6-S-300.STEP STEP 977 2018-09-05 0
    LE234S-T1202-150-AR4-S-210.STEP STEP 914 2018-09-05 0
    LE23AS-T1202-100-AR6-S-150.STEP STEP 1044 2018-12-19 0
    LE23AS-T10105-400-AR2-S-150.STEP STEP 805 2018-09-05 0
    LE23AS-T10105-250-AR2-S-300.STEP STEP 858 2018-09-05 0
    LE238S-E12254-100-AR6-S-220.STEP STEP 1051 2018-09-03 0
    LE234S-T1202-300-AR6-S-210.STEP STEP 993 2018-09-05 0
    LE234S-E12254-200-AR6-S-210.STEP STEP 991 2018-09-05 0
    LE23AS-T1202-200-AR6-S-150.STEP STEP 982 2018-09-05 0
    LE23AS-T1206-400-AR6-S-150.STEP STEP 886 2018-09-05 0
    LE23AS-T10105-350-AR2-S-300.STEP STEP 834 2018-09-05 0
    LE238S-E12254-400-AR6-S-220.STEP STEP 922 2018-09-05 0
    LE238S-E12254-250-AR6-S-220.STEP STEP 980 2018-09-05 0
    LE234S-E12254-250-AR6-S-210.STEP STEP 970 2018-12-19 0
    LE234S-E12254-350-AR6-S-210.STEP STEP 942 2018-09-05 0
    LE23AS-E12254-350-AR6-S-150.STEP STEP 926 2018-09-05 0
    LE238S-T1206-150-AR6-S-220.STEP STEP 367 2018-09-03 0
    LE23AS-T1206-100-AR6-S-300.STEP STEP 1053 2018-09-05 0
    LE238S-T1202-100-AR6-S-220.STEP STEP 1059 2018-09-05 0
    LE238S-T1202-300-AR6-S-220.STEP STEP 923 2018-09-05 0
    LE23AS-T10105-100-AR2-S-300.STEP STEP 962 2018-09-05 0
    LE234S-T10105-400-AR2-S-210.STEP STEP 812 2018-09-05 0
    LE23AS-E12254-350-AR6-S-300.STEP STEP 928 2018-09-05 0
    LE23AS-T1206-400-AR6-S-300.STEP STEP 886 2018-09-05 0
    LE234S-E12254-300-AR6-S-210.STEP STEP 990 2018-09-05 0
    LE234S-T1206-200-AR6-S-210.STEP STEP 995 2018-09-05 0
    LE23AS-T10105-300-AR2-S-150.STEP STEP 830 2018-09-05 0
    LE238S-T1202-400-AR6-S-220.STEP STEP 926 2018-09-05 0
    LE23AS-T1206-250-AR6-S-150.STEP STEP 977 2018-09-05 0
    LE234S-T10105-100-AR2-S-210.STEP STEP 949 2018-09-05 0
    LE23AS-T1206-300-AR6-S-300.STEP STEP 948 2018-09-05 0
    LE23AS-E12254-300-AR6-S-300.STEP STEP 948 2018-09-05 0
    LE23AS-T10105-100-AR2-S-150.STEP STEP 962 2018-09-05 0
    LE234S-T1206-400-AR6-S-210.STEP STEP 878 2018-09-05 0
    LE23AS-T10105-350-AR2-S-150.STEP STEP 834 2018-09-05 0
    LE23AS-T1206-100-AR6-S-150.STEP STEP 1053 2018-09-05 0
    LE23AS-T10105-250-AR2-S-150.STEP STEP 858 2018-09-05 0
    LE23AS-T10105-150-AR2-S-150.STEP STEP 930 2018-09-05 0
    LE234S-T1206-100-AR6-S-210.STEP STEP 1043 2018-09-05 0
    LE23AS-T1206-200-AR6-S-150.STEP STEP 982 2018-09-05 0
    LE234S-T1202-250-AR6-S-210.STEP STEP 966 2018-09-05 0
    LE23AS-E12254-150-AR6-S-300.STEP STEP 1021 2018-09-05 0
    LE238S-T1206-350-AR6-S-220.STEP STEP 904 2018-09-03 0
    LE234S-T10105-250-AR2-S-210.STEP STEP 874 2018-09-05 0
    LE23AS-T1202-350-AR6-S-300.STEP STEP 928 2018-09-05 0
    LE238S-E12254-200-AR6-S-220.STEP STEP 989 2018-09-05 0
    LE23AS-E12254-250-AR6-S-150.STEP STEP 977 2018-09-05 0
    LE234S-T1206-250-AR6-S-210.STEP STEP 966 2018-09-05 0
    LE23AS-E12254-100-AR6-S-150.STEP STEP 1053 2018-09-05 0
    LE23AS-T10105-300-AR2-S-300.STEP STEP 830 2018-09-05 0
    LE234S-T1206-150-AR6-S-210.STEP STEP 1016 2018-09-05 0
    LE23AS-T1202-100-AR6-S-300.STEP STEP 1053 2018-09-05 0
    LE23AS-T1202-150-AR6-S-150.STEP STEP 1021 2018-09-05 0
    LE23AS-T1202-250-AR6-S-150.STEP STEP 977 2018-09-05 0
    LE23AS-E12254-200-AR6-S-150.STEP STEP 982 2018-09-05 0
    LE238S-T10105-400-AR2-S-220.STEP STEP 825 2018-09-03 0
    LE238S-T1206-250-AR6-S-220.STEP STEP 984 2018-09-03 0
    LE23AS-E12254-300-AR4-S-150.STEP STEP 1079 2018-09-05 0
    LE234S-E12254-100-AR6-S-210.STEP STEP 1047 2018-09-05 0
    LE23AS-E12254-400-AR6-S-300.STEP STEP 886 2018-09-05 0
    LE238S-T10105-350-AR2-S-220.STEP STEP 828 2018-09-03 0
    LE234S-T10105-150-AR2-S-210.STEP STEP 930 2018-09-05 0
    LE23AS-T1202-250-AR6-S-300.STEP STEP 977 2018-09-05 0
    LE23AS-T1202-300-AR6-S-150.STEP STEP 948 2018-09-05 0
    LE23AS-T1202-400-AR6-S-300.STEP STEP 886 2018-09-05 0
    LE23AS-E12254-400-AR6-S-150.STEP STEP 886 2018-09-05 0
    LE234S-T1202-400-AR6-S-210.STEP STEP 878 2018-09-05 0
    LE238S-T1206-200-AR6-S-220.STEP STEP 989 2018-09-03 0
    LE238S-T10105-250-AR2-S-220.STEP STEP 875 2018-09-03 0
    LE238S-T1202-350-AR6-S-220.STEP STEP 904 2018-09-05 0
    LE238S-E12254-150-AR6-S-220.STEP STEP 1003 2018-09-05 0
    LE238S-E12254-300-AR6-S-220.STEP STEP 923 2018-09-05 0
    LE234S-T1202-350-AR6-S-210.STEP STEP 945 2018-09-05 0
    LE238S-T1206-300-AR6-S-220.STEP STEP 923 2018-09-03 0
    LE23AS-T1202-150-AR6-S-300.STEP STEP 1039 2018-09-05 0
    LE238S-E12254-350-AR6-S-220.STEP STEP 900 2018-09-05 0
    LE234S-T1206-350-AR6-S-210.STEP STEP 945 2018-09-05 0
    LE234S-E12254-400-AR6-S-210.STEP STEP 871 2018-09-05 0
    LE23AS-E12254-200-AR6-S-300.STEP STEP 982 2018-09-05 0
    LE238S-T1206-100-AR6-S-220.STEP STEP 1035 2018-09-05 0
    LE23AS-T1206-300-AR6-S-150.STEP STEP 948 2018-09-05 0
    LE234S-T1206-300-AR6-S-210.STEP STEP 994 2018-09-05 0
    Catalog
    Title Type Size(KB) Date View times Download
    LE linear motor catalog.pdf PDF 8138 2018-09-29 67

    Step Sequence & Schematic Diagrams




    Delivery & Packaging

    Logistics tracking

    Ensure your ordered products are always safely packaged from easy click to fast delivery to your hands

    Professional Product Label

    Considering all possible harsh application environments, MOONS' specially designed labels for each product, which pass water-resistance test, durability rub test, high temperature resistance and corrosion resistance tests.

    Besides, our product labels are attached with QR code linking to product details, which is convenient for clients to view the detail product page with their mobile phones.

    Note: This label design is suitable for products of stepper motor.

    (Professional packing box and unique appearance design)

    (Single item packed with EPE)

    (Multi-products packed with another box)

    Safely Packaging

    In order to ensure your shipments withstand the long trip and arrive safely and intact, MOONS' specially designed Individual package to pass the drop test with its stable structure.
    Besides,the package is made from recyclable materials, providing you with professional safety delivery.
    Whether just single item or multi-products the clients buy, all products are packed twice to avoid the damage further.

    Shipping Visualization

    For each case, products are carefully packed by experienced warehouse staff and the key processes are recorded by photos, which are then posted on our website, so that clients could clearly know the packing process and logistics status after placing order.

    (Product in the box)

    (Add the invoice)

    (Label the commodity)

    (The logistics waybill attached)

    Fast Delivery

    Fast Cross-Border Delivery
    MOONS' chooses DHL as our main international express shipping partner. As the world's leading logistics specialist, DHL provides our customers with fast and professional inter- national door-to-door delivery service.
    Estimated Delivery Time: e.g. China-USA major cities 3 business days.

    Professional
    Warehouse Management

    MOONS’ has an experienced warehouse management team, all products and materials are clearly classified and neatly arranged.
