Tunable White Solution Applications by MOONS'

MOONS' LED Driver for Tunable White Solution

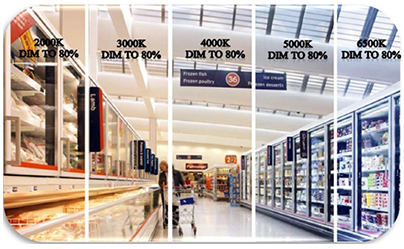

tunable-white-solution Lighting has a profound effect on the human society. It's more than just how we see. It also affects how we feel and how we function.  MOONS' tunable white solutions are designed to help maximize the influence of lighting on your daily life.

There are different lighting control systems that work well with LED lighting. The most commonly used systems in professional LED lighting are DALI, 0-­10V and DMX. Different dimming protocols have their own characteristics and advantages and disadvantages. The system to choose depends on your requirements. MOONS' 2 Chnnels output 0-10V driver and 2 Channels output DALI DT8 driver can achieve tunable white via 0-10V dimmer and DALI panel or DALI controller (support DT8) directly.

Application Introduction

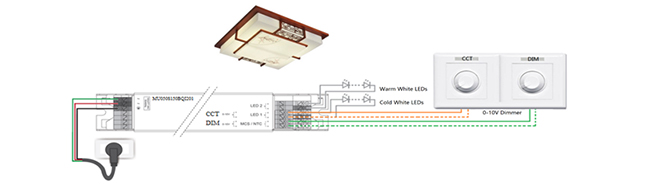

1. 0-10V Tunable White



One 0-10V dimmer is used to control fixture's color temperature. Another one is used to control fixture's intensity.
0-10v-tunable-white

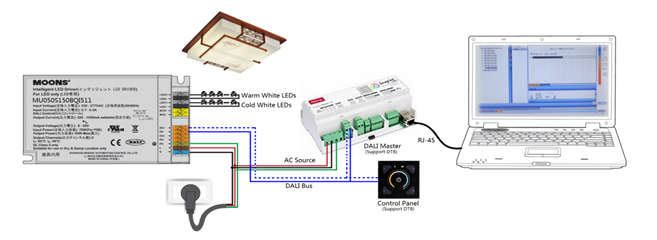

2. DT8 Tunable White



Support DALI 209 protocol , using only one DALI address to achieve tunable white application.
dt8-tunable-white

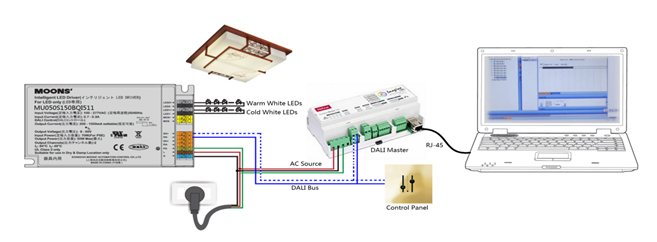

3. DT6 Tunable White



For traditional application, DALI DT6 is used to control lighting intensity, and it would be complex if users need configurate color temperature. However, MOONS' dual DALI driver equipped with 2 address, one is control the mixture ratio of color temperature, and another configures total intensity of luminaire, which is much more convenient than traditional for field application.
dt6-tunable-white

4. DMX Tunable White



For traditional application, users need to define the CCT logic of each channel’s output on customized controller/software to achieve Tunable White. However, MOONS' dual DMX driver equipped with 2 addresses, one is control the mixture ratio of color temputer, and another one configures total intensity of luminaire, which is much more convenient than traditional tunable white in DMX.
dmx-tunable-white

Video Show

DALI Tunable White

0-10V Tunable White

Recommended Products

MU050S150BQI201 0-10V dual dimming
Flicker-Free dimming ,
Dimming range: 0.1%~100%
Slim
MU050S150BQI211 0-10V dual dimming
Flicker-Free dimming ,
Dimming range: 0.1%~100%
Compact
MU050S150BQI501 DALI dual dimming
Flicker-Free dimming ,
Dimming range: 0.1%~100%
Slim
MU050S150BQI511 DALI dual dimming
Flicker-Free dimming ,
Dimming range: 0.1%~100%
Compact
