    MOONS' DALI Intelligent driver is ideal for stage, landscape, Architecture, and Agriculture Lighting applications. Dimming two channels on the driver via DALI dimming equipment.
    ● Input voltage: 90-305Vac
    ● All-Around Protection: OVP, SCP, OTP, OPP.
    ● Built-in active PFC function 0.95 Typ.
    ● Flicker-Free Dimming Across Wide Dimming Range.(0.1%～100%).
    ● Constant current, 2 channels output
    ● 4 in 1: DT8 Tunable white(1500K~6500K), DT6 Tunable white(1500K~6500K), Solo dimming, Dual dimming.
    ● 5-year Warranty.
    Brand Name: MOONS'
    Price: USD  75.0  EA

    * Free shipping to North America and most of Europe for orders of $100 or more
    * From May. 1 - May. 5, Online Orders Shipping will be postponed during Labour Day and resume on the first working day – May. 6. Thanks for your patience!

    Payment Methods

    Buyer Protection:
    Free Exchange if the item has quality problems within 1 year. Learn more
       Description & Feature

  • Description
  • DALI Function
  • Operating Logic
  • Programmable Function

    • Description

    For more information about DALI please refer to:
    "Basic Knowledge of DALI LED Driver"
    "Introduction to MOONS' DALI LED Driver"
    "The Difference between DALI Device Type 8 and Type 6"
    DALI dual channel intelligent driver is ideal for stage, landscape, architecture, agriculture lighting applications. Different form factors are available for the perfect fit with luminaire. This series operates from 90~305VAC and offer various dimming functions that could be configured by MOONS' patented programmer: Smartkey or Touch Setting Tool.
    Tunable White
    Wire Connecting
    Tunable White
    Wire Connecting

    DALI Function

    Color Temperature(DALI DT8/DT6)
    Solo Dimming(DT6)
    Dual Dimming(DT6)
    Color Temperature(DALI DT8/DT6)
    Solo Dimming(DT6)
    Dual Dimming(DT6)
    Color temperature (Default: DALI DT8 ):
    Using 1 address to achieve tunable white application with DALI type 8

    Color temperature (DALI DT6):
    Using 1 address to dim the color temperature, 1 address to dim the intensity.
    Dim two channels output current with one DT6 address simultaneously.
    Dim two channels output current with two DT6 address respectively.

    Why You Need DALI DT8

    During Tunable White solution, compared with normal DALI DT6 driver, DALI DT8 driver has lots of advantages.
    DT6 Driver
    DT8 Driver
    DT6 Driver
    DT8 Driver
    •  For DT8, only need one DALI address to achieve Tunable White.
     For DT6, need two DALI addresses to achieve Tunable White.

    •  For DT8 Driver, MOONS' design the CCT dimming logic in driver. Users can use standard DALI Master(support DT8) to achieve tunable white easily.
     For DT6 Driver, users need to design the CCT logic solution in software.

    As a result, Address saving, Space saving, Manpower saving.

    Different protocol between DT6 VS DT8

     Different protocol between DT6 VS DT8

    MOONS' is the Member of DiiA

    MOONS' owns official DALI tester "ProbitLab"

    MOONS' is the Member of DiiA
    MOONS' owns official DALI tester

    Why You Need Dim to 0.1%
    The dimming range has a great influence on the correlated color temperature area.

    This figure shows the performance of MOONS' DALI driver (0.1%-100% dimming) on mixing warm and cold color temperature LEDs.

    Assume there is a CCT fixture:
    Warm White LEDs(2500K) max power=30W
    Cold White LEDs(6500K) max power=30W
    Driver's Dimming Range Valid CCT Range
    0%, 10%-100% 2500K, 2900K-6100K, 6500K
    0%, 5%-100% 2500K, 2700K-6300K, 6500K
    0%, 1%-100% 2500K, 2540K-6460K, 6500K
    0%, 0.1%-100% 2500K, 2504K-6496K, 6500K
    Driver's Dimming Range

    Operating Logic

    Settable Output
    Output voltage range: 8~54VDC, auto-adapting according to fixture's Vf.
    Output current range: 100~1050mA, can be set via Smartkey or Touch Setting Tool.



    200~1050mA: the current operating in continuous mode.

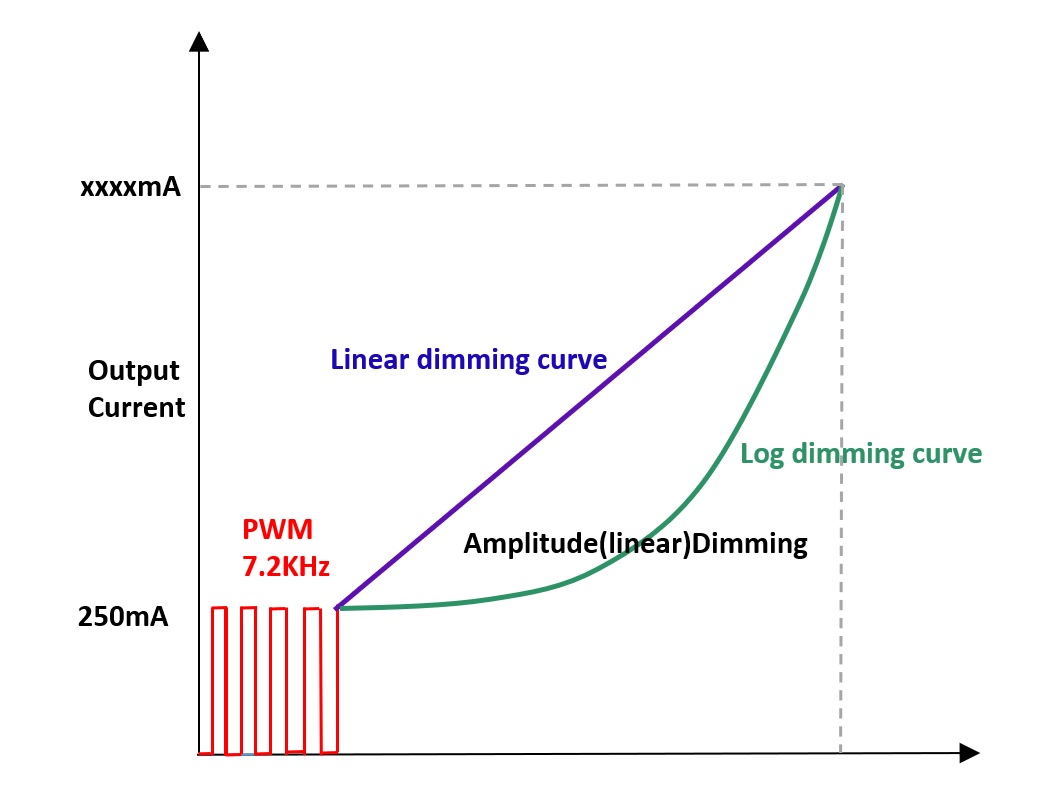

    0~200mA: the current operating in PWM dimming mode and the PWM frequency equals 3.6KHZ.
    Settable Output

    Programmable Function

    Touch Setting Programming Touch Setting Programming

    Data Sheet

    Model List

    Part Number Output Current Range Dimming Description 12V/100mA
    Auxiliary Output    		 DALI Power Supply Case Structure
    MU030S105BQI5220 100-1050mA Tunable White(DT8/DT6)
    DT6 1/2 addresses    		 X √ Backfeed
    MU030S105BQI5320 X √ Sidefeed

    Model Encoding

    MU030S105BQI5220
    MCase's material: Metal
    UUniversal input: 90~305VAC
    030Driver's output power: 30W
    SDriver's series name
    105Driver's rated output current: 1050mA
    B2 output channels
    QDriver's type: constant current driver
    IIntelligent output, output current can be set by software
    5220Define driver's function, please refer to model list table get detailed information

    Compare Item Price
    (USD)    		 Buy Now
    MU030S105BQI5220 $75.00
    MU030S105BQI5320 N/A
    Downloads
    2D Drawings
    Title Type Size（KB） Download
    2D-MU030S105BQI5220 PDF 18
    2D-MU030S105BQI5320 PDF 14
    3D Model
    Title Type Size（KB） Download
    3D-MU030S105BQI5220 STEP 1958
    3D-MU030S105BQI5320 STEP 1887
    Specifications
    Title Type Size（KB） Download
    Specification-MU030S105BQI5320 PDF 648
    Specification-MU030S105BQI5220 PDF 656
    Certification
    Title Type Size（KB） Download
    UL/CUL Class P-MU030S150BQI5X20 PDF 301
    Software
    Title Type Size（KB） Download
    TouchSetting -1.2.0.8 ZIP 5939
