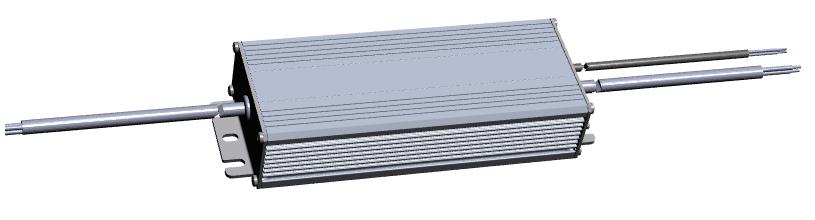

MU100MxxxAQ_CP Series

Ideal for higher lumen applications,the MU100MxxxAQ_CP series is a 100W, constant-current, programmable outdoor LED driver that operate from 90~305 VAC input with excellent power factor.
● High Efficiency (Up to 91% typ.@230VAC)
● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,UL,CE
● Flicker-Free Dimming Across Wide Dimming Range.
● 0-10V/PWM/Clock Dimming/Constant Current(ALL Dimming Functions Are Programmable)
● High Surge Immunity:L-N:±10KV,L/N-FG:±10KV
● 5-year Warranty
Brand Name: MOONS'
Price: USD  42.0  EA

Free shipping to North America and Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more



MU100MxxxAQ_CP series is a 100W LED AC-DC driver featuring the constant current mode. This series operates from 90~305VAC and offers dimming models with different rated current that could be configured by MOONS' patented programmer--MSSL200.With the fan-less design, the entire series are able to operate for -40℃~+90 ℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. MU100MxxxAQ_CP is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. Especially designed for thousands of Engineers and Experts and renowned for High Quality, High Performance and Unique Features, MOONS' stepper motors and motion control products are widely applied in many innovative applications, including: 3D Printers, extruders, stage lighting, analytical and medical instruments, laser cutters, engravers, image scanners, textile equipment, embroidery machine, precision telescope positioning systems, packaging machinery, CNC machines and robotics etc. We always work with you together to get your creative ideas or innovative products to go to market as fast as possible. MOONS' - Experts' Choice!

Waterproof & High Surge

Excellent characteristics of both Waterproof & High surge level, which could expand your application field with reliable performance for roadway lighting, kitchen lighting, high mast lighting and so on.


MOONS' general LED drivers are suitable for numerous indoor and outdoor applications. For outdoor lighting or indoor lighting, it is important to strengthen the property of waterproof. The design of metal housing and IP67 ingress protection level allows this series to fit various applications.

High Surge Immunity

MOONS' have developed a range of LED drivers subject to IEC 61000-4-5, that is a test for electrical and electronic equipment with regard to unidirectional surges caused by over-voltages from switching and lightning transients. With 10KV surge level, the MOONS' LED drivers are reliable to protect your lamps against surges.

As a professional LED driver developer, our teams take care of these issues for our customers.

Dimming Function Introduction

MU100MxxxAQ_CP is a programmable driver, all driver’s parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ),Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 100W/800mA、100W/900mA、100W/1000mA and so on. What’s more, the driver is compatible with charged or uncharged programming mode.

1. Accessory-MSSL200

MSSL200 is the programmer of CLKS or CP Series driver.The Programmable Driver Configurator Software and Configurator are compatible with MOONS’ CLKS and CP drivers. They can be used to set the configuration parameters of MOONS’ CLKS and CP drivers.

2. Dimming Function-Constant Power

Output Current: 65%~100% ×rated output current
This series driver could achieve rated output power while
adjusting output current range at 65%-100% rated output current.

Note:output current setting range with constant power 65%~100% Iomax

3. Dimming Function-PWM/1-10V Dimming

Dimming Range: 6.5%~100% ×rated output current The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.

4. Dimming Function-Smart Midnight ClockDIM

Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.

5. Dimming Function-Fixed ClockDIM

Users can set the dimming plan by separating 24hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function. For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.

Model list

Part Number Output Voltage Range Output Current Range Output Power Efficiency (Typ) Status
120VAC 230VAC
MU100M080AQ_CP 75-189VDC 53-800mA 100W 89% 91% Consultation
MU100M105AQ_CP 57-143VDC 70-1050mA 100W 88% 90% Selling
MU100M150AQ_CP 40-100VDC 100-1500mA 100W 88% 90% Consultation
MU100M210AQ_CP 29-71VDC 140-2100mA 100W 87% 89% Consultation
MU100M320AQ_CP 19-50VDC 200-3200mA 100W 86% 88% Consultation
MU100M480AQ_CP 13-33VDC 300-4800mA 100W 85% 87% Consultation


Input Voltage Range 90∼ 305Vac
Frequency 47∼ 63Hz
Power Factor 0.98 (Typical) at 230Vac; >0.9 with 55%~100% load, at 100~277Vac
Efficiency About 91%, depending on corresponding product
THD <15% with 80%∼ 100% load, at 100~277Vac; <20% with 50%~100% load, at 100~277Vac
Inrush Current 65A at 230Vac input 25°C Cold Start (time wide=500uS, measured at 50% Ipeak,
Not applicable for the inrush current to Noise Filter for less than 0.2ms)
Output Current Range when dimming 6.5%∼ 100% ×Io_max
Line Regulation ± 1%
Load Regulation ± 3%
Ripple Current Percentage[(PK-AV)/AV] 10% max (peak to average value) at 100% Io
Setup, Rise Time 0.5s (typ.), measured at 230Vac input
Operating Temperature -40~+70°C (Refer to 'Derating Curve' in series datasheet)
Maximum Case Temperature 90°C
Humidity 20~95%RH, non-condensing
MTBF 300,000 hours @ full load, 25°C ambient temperature
Surge Level L-N:± 10KV, L/N-PE:± 10KV
Reference Dimension(L×W×H) 183×67.5×37 mm
Weight 0.85kg
Safety Standard UL8750, UL1012, CAN/CSA-C22.2No.107.1-01,EN61347-1, EN61347-2-13
Lifetime ≥ 100,000hrs@65°C Tc

Model Encoding

Compare Item Price
Buy Now
MU100M105AQ_CP $42.00
MU100M210AQ_CP $42.00
MU100M080AQ_CP $42.00

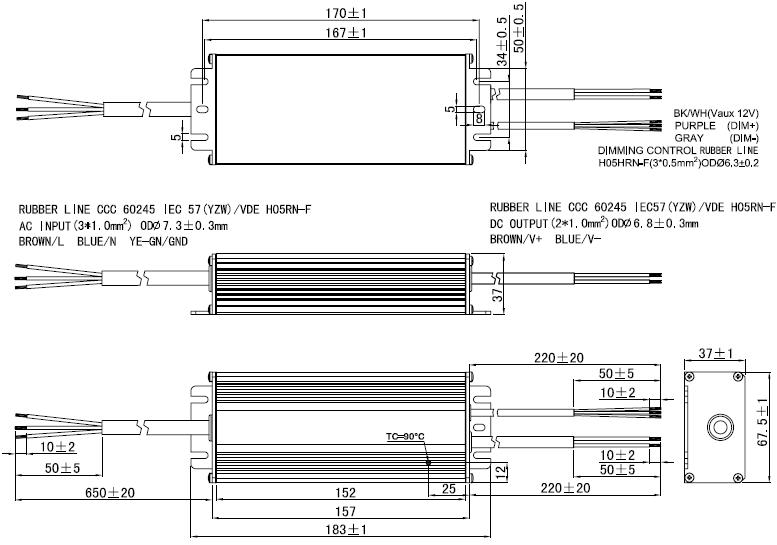

2D Drawings
