NEMA 14 Smooth Hybrid Stepper Motors

Stepper motor, Smoother, High precision, Small size, High torque, Step Angle: 0.9°, NEMA14, Φ35mm

● Smoother
● High precision
● Small size
● High torque

Brand Name: MOONS'
Price: USD  38.4  -  44.5  EA

* Free shipping to North America and most of Europe for orders of $100 or more

Payment Methods

Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Features

  • High torque
  • Low noise
  • Low vibration
  • Low resonance
  • Long service life
  • Encapsulated,smooth,low temperature rise
  • Large bearing,large load
  • NEMA 14 Smooth Hybrid Stepper Motors
    motion trajectory comparison

    Ultra smooth

    New materials and improved manufacturing processes enable all components of MOONS' Encapsulated stepper motors to achieve better matching precision and more stable internal structures. This reduces vibration and noise effectively when the motor operates, which makes MOONS' encapsulated stepper motors stand out from its competitors by providing quieter and smoother operation.

    High torque

    Lower temperature rise for MOONS' encapsulated motors to save more heat output in coil. In the same temperature rise, the MOONS' motor, compared to other competitors, can operate smoothly while accepting more than 30% of the current increase, thus obtains a larger torque output.
    torque curves compariso
    Lower temperature rise

    Lower temperature rise

    The latest design of MOONS' motor selected with new materials gets a lower resistance value by nearly 30% when compared with motors of the same thickness and the same torque, this makes a greater degree of improvement for the thermal conductivity performance of the motor, thus greatly reduces the temperature rise of the motor. While operating under the conditions of the same environment for a long time, the MOONS' motor temperature rise is 80% less than the competitor products.

    &npsb;
    Specification of NEMA 14 Smooth Hybrid Stepper Motors

    Specification

    Phase 2
    Steps/ Revolution 400
    Step Angle 0.9°
    Step Accuracy ±5%
    Insulation Class B, 130℃
    Insulation Resistance 100 MegOhms
    Axial Load (20,000 hours at 1000RPM ) 25 N (5.6 Lbs.) Push
    65 N (15 Lbs.) Pull
    Radial Load (20,000 hours at 1000RPM ) 30 N (6.5 Lbs.)At Flat Center
    Operating Temp. -20℃~50℃
    IP Rating IP 40
    Approvals RoHS

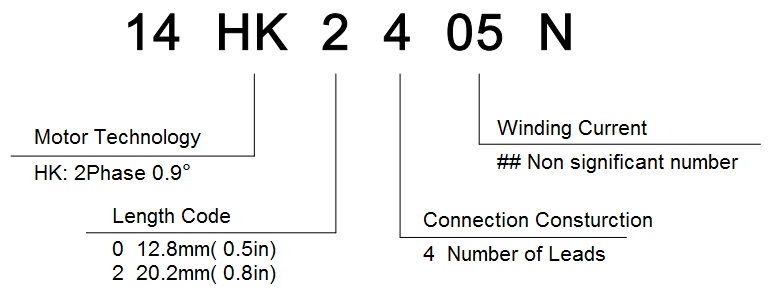

    Model Numbering System

    Model Numbering System of NEMA 14 Smooth Hybrid Stepper Motors

    14HK-4 Lead Bi-Polar

    Length Model Number Torque
    Curves
    Connect Rated
    Current
    Holding
    Torque
    Winding
    OhmsmH
    Detent
    Torque
    Rotor Inertia Motor Weight
    Single Shaft P=Plug
    L=Leads
    Amps
    (mounted)
    Nmoz-in
    Typ.Typ.
    ±10%
    @20℃
    Typ.
    mNmoz-in g cm²oz-in² kgLbs

    12.8 mm
    (0.5 in.)

    14HK0405N 14HK0405N L 0.3 0.0446 15.68.5 40.57 40.022 0.050.11
    14HK0406N 14HK0406N L 0.5 0.0446 6.33.1
    14HK0407N 14HK0407N L 0.6 0.0446 4.22.1
    14HK0408N 14HK0408N L 0.8 0.0446 2.61.21
    20.2 mm
    (0.8 in.)
    14HK2404N 14HK2404N P 0.3 0.1217 2621 101.4 110.06 0.110.24
    14HK2405N 14HK2405N P 0.5 0.1217 11.79.5
    14HK2406N 14HK2406N P 0.6 0.1217 7.15.4
    14HK2407N 14HK2407N P 0.8 0.1217 4.43.2

    Compare Item Price
    (USD)
    Buy Now
    14HK0405N $38.40
    14HK0406N $38.40
    14HK0408N $38.40
    14HK2405N $44.50
    14HK2406N $44.50
    14HK2407N $44.50

     Torque Curves


    ■ 14HK0-Bipolar
    14HK0-Bipolar
    14HK0-Bipolar
    14HK0-Bipolar
    14HK0-Bipolar

    ■ 14HK2-Bipolar
    14HK2-Bipolar
    14HK2-Bipolar
    14HK2-Bipolar
    14HK2-Bipolar

    Dimensions


    ■ Motor Dimensions: mm(in)
    Dimensions of NEMA 14 Smooth Hybrid Stepper Motors

    2D Drawings
    Title Type Size(KB) Download
    14HK2405N 2D.pdf PDF 72
    14HK0405N 2D.pdf PDF 69
    14HK0408N 2D.pdf PDF 71
    14HK2407N 2D.pdf PDF 72
    14HK0406N 2D.pdf PDF 70
    14HK2406N 2D.pdf PDF 70
    3D Model
    Title Type Size(KB) Download
    14HK0_3D Model.step STEP 253
    14HK2_3D Model.step STEP 253
    Torque Speed Curves
    Title Type Size(KB) Download
    14HK Series_Torque Speed Curve.pdf PDF 3809
    Catalog
    Title Type Size(KB) Download
    Hybrid Stepper Motor_Catalog2019.pdf PDF 15487
    Catalog.pdf PDF 8551
