Waterproof Stepper Motors and Servo Motors: Principles, IP Ratings, and Product Overview
What is a Waterproof Stepper Motor?
A waterproof stepper motor is a type of stepper motor specifically designed for harsh industrial environments involving high humidity, water spray, heavy dust exposure, or temporary water immersion. Compared with standard stepper motors, waterproof stepper motors feature specialized sealing structures, waterproof connectors, and corrosion-resistant materials to ensure reliable operation under demanding conditions. Waterproof stepper motors typically offer a high IP protection rating, effectively preventing moisture, dust, and oil contaminants from entering the motor housing and damaging precision internal components such as windings, bearings, and encoders. Common applications of waterproof stepper motors include: CNC machine tools, food packaging equipment, medical automation equipment, lithium battery and renewable energy equipment, water treatment systems, outdoor automation equipment, semiconductor and photovoltaic equipment. Compared with standard motors, waterproof motors are better suited for industrial environments with high humidity, heavy dust exposure, and frequent washdowns.
How does a Waterproof Stepper Motor Achieve Waterproof Protection?
Waterproof stepper motors achieve their protective performance through the following key design features:
1. Sealing Structure Design
High-performance sealing rings and waterproof sealing compounds are used at critical connection points such as the end caps, flanges, and motor housing joints to prevent moisture and dust from entering the motor interior. In addition, the motor shaft is typically equipped with a high-quality oil seal to improve waterproof protection around the rotating shaft.
2. Waterproof Cable Connection Design
In standard stepper motors, cable outlet areas are often vulnerable to water ingress. To address this issue, waterproof stepper motors typically use: waterproof connectors, aviation connectors, integrated sealed cables. These designs help prevent moisture from entering the motor through the cable entry points.
3. Corrosion-Resistant Materials
Some waterproof motors use stainless steel output shafts, corrosion-resistant housings, and special protective coatings to improve durability in humid, salt spray, and corrosive environments.
Introduction to Motor IP Protection Ratings
When selecting a waterproof motor, the IP protection rating is one of the most important parameters to consider. IP (Ingress Protection) ratings consist of two digits: the first digit indicates the dust protection level; the second digit indicates the water protection level. In industrial automation applications, the most common waterproof motor ratings are IP65, IP67, and IP68.
| Protection Rating | Dust Protection | Waterproof Protection | Typical Application Scenarios | Selection Guide |
| IP65 | Completely protected against dust ingress. | Protected against low-pressure water jets from any direction. | Suitable for CNC equipment, automated production lines, food processing machinery (washdown environments), and outdoor equipment. Ideal for general humid and water spray environments. | Suitable for general industrial applications requiring protection against water spray, mist, or humid conditions. |
| IP67 | Completely protected against dust ingress. | Protected against temporary immersion in water (typically up to 1 meter for 30 minutes). | Suitable for car wash equipment, water treatment systems, wet grinding equipment, and environments exposed to prolonged rain. Ideal for applications with a risk of temporary immersion. | Suitable for applications where equipment may accidentally fall into water or need to withstand temporary immersion. |
| IP68 | Completely protected against dust ingress. | Suitable for continuous underwater operation (depth and duration specified by the manufacturer). | Suitable for underwater robots, marine exploration equipment, and deep-water automation systems. Ideal for equipment requiring long-term underwater operation. | The preferred solution for long-term underwater applications. The required submersion depth and operating cycle should be clearly defined during motor selection. |
How to Choose a Suitable Waterproof Stepper Motor?
When selecting a waterproof stepper motor, it is recommended to focus on the following parameters: IP protection rating, output torque, motor size, control method, operating temperature, encoder availability, and corrosion resistance. For applications that only require protection against water spray, an IP65 stepper motor is typically sufficient. If there is a risk of temporary immersion, an IP67 waterproof motor is recommended. For long-term underwater operation, an IP68 waterproof motor should be selected.
MOONS' Waterproof Motor Product Introduction
1. Waterproof Stepper Motors

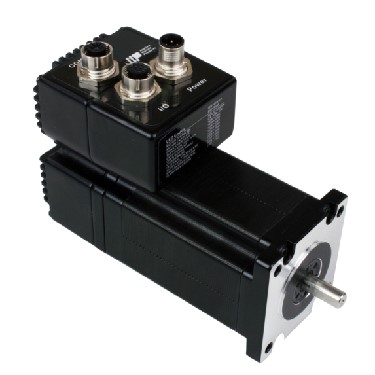

The TXM series waterproof integrated closed-loop stepper servo motors integrate the driver and encoder into a single unit, support multiple industrial communication protocols, and are certified with an IP65 protection rating.
The SWM series waterproof stepper motors feature an integrated structure design, making them suitable for high-humidity industrial environments.

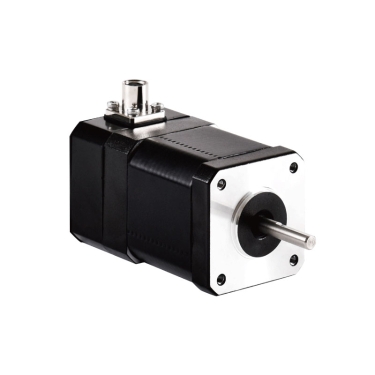

MOONS' has introduced the new AW series protected stepper motors to meet the demands of harsh operating environments. Featuring a powder-coated housing with waterproof and wear-resistant properties, the motors offer a compact structure, optional encoder and brake configurations, and aviation connectors for reliable electrical connections.

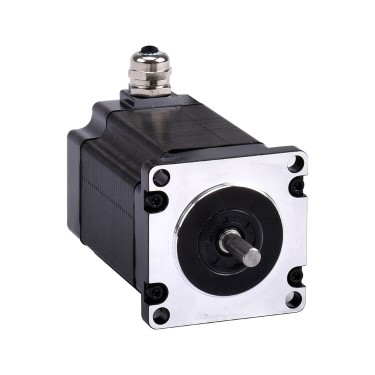

The AM series IP65 stepper motors offer excellent waterproof and dustproof performance, providing complete protection against dust ingress and effective resistance to water spray. They are suitable for industrial automation, CNC equipment, and other demanding environmental applications.
2. Waterproof Servo Motor Product Introduction

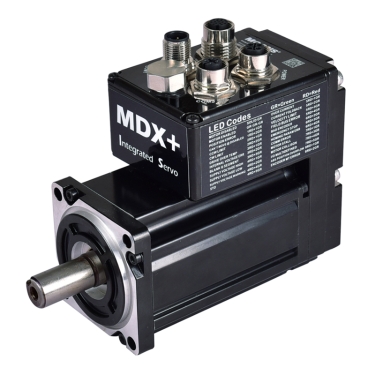

The MDX+ series integrated servo motors integrate the driver and encoder into a single unit, support multiple industrial communication protocols, offer a power range of 100W to 750W, and provide an IP65 protection rating.

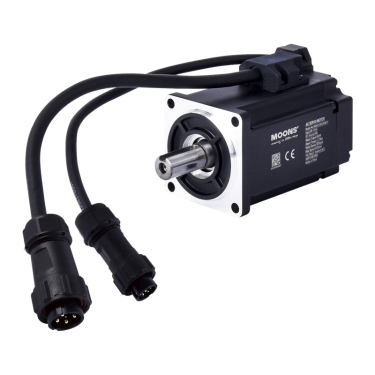

SMA Series Low-Voltage Servo Motors
The SMA series low-voltage servo motors feature an IP67 protection rating (excluding the shaft-through section), a Class F (155°C) insulation rating, and comply with CE and RoHS certification requirements, making them suitable for industrial applications requiring high protection and reliability in humid environments.

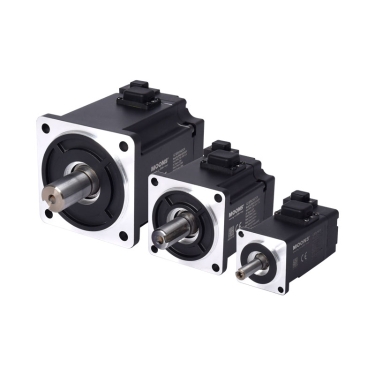

SMA Series AC Servo Motors
The SMA series AC servo motors are high-protection servo motors from MOONS' that support an IP67 protection rating (excluding the shaft-through section), effectively handling humid, water spray, and complex industrial environments. The motors feature a Class F (155°C) insulation rating and comply with CE and UL certifications. With support for 350% overload torque and high-precision positioning, they are suitable for automation equipment applications requiring high levels of waterproofing, dust protection, and reliability.

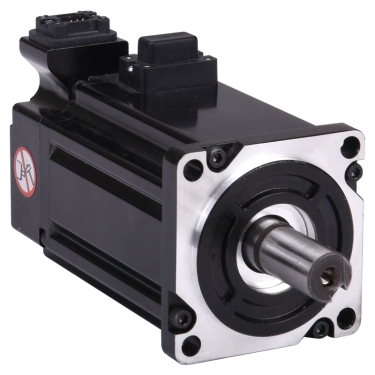

SM3 Series AC Servo Motors
The SM3 series AC servo motors meet IP65 protection requirements (excluding the shaft-through section) and feature a Class F (155°C) insulation rating, making them suitable for high-performance industrial automation applications.

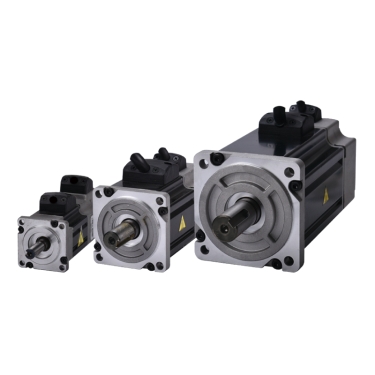

The MBDV series low-voltage servo motors adopt a newly optimized magnetic circuit design, delivering higher efficiency and a more compact structure. The motors feature an IP65 protection rating (excluding the shaft-through section) and are suitable for high-precision industrial automation applications.

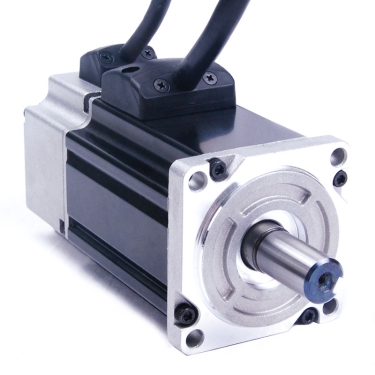

The M2DC series low-voltage servo motors feature high torque, a compact structure, and high-precision control. The motors support an IP65 protection rating (excluding the shaft-through section and cable outlet) and are suitable for applications such as automation equipment, renewable energy systems, and industrial control.
