Ball Screw Linear Actuators Product Introduction and Application
A ball screw linear actuator is a core transmission system consisting of a high-efficiency, high-precision ball screw and a drive motor (primarily a servo motor or stepper motor) that supplies the rotational force. These motors are a core solution for achieving high-precision, high-speed, and high-efficiency linear motion and are widely used in various fields such as automation, precision manufacturing, and scientific research.
Ball screw linear actuators transmission products have the following characteristics:
High-speed, high-frequency motion: Due to the low friction coefficient provided by the circulating steel balls between the screw and the nut, ball screws are exceptionally well-suited for high-speed and high-frequency movements. Extended service life: The screw, nut, and ball are all crafted from high-hardness metal, which allows for a significantly extended service life. Superior transmission accuracy: The manufacturing precision of ball screw is relatively high. For example, a typical C7-grade precision screw maintains an error within ±0.05mm over a 300mm length. Reversible drive: The rolling friction between the nut and the screw facilitates a reversible drive, as the system does not possess self-locking properties. High manufacturing cost: The intricate manufacturing process for ball screws and nuts presents significant challenges, leading to a relatively high production cost.The following is an introduction to MOONS' ball screw linear actuators products.

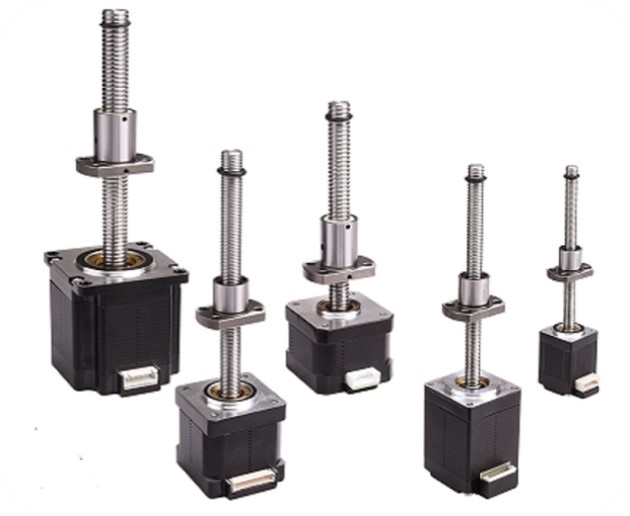

- BE-Ball Screw Linear Atuators-External Nut Type BE ball screw linear actuators feature a direct-connect design, eliminating the need for couplings. We offer a variety of motor, screw, and nut configurations (NEMA 08/11/14/17/23); and offer high rigidity, high precision (±0.01mm), high efficiency, high-frequency operation, high load capacity, and long life. BE ball screw linear actuators provides greater value by offering in-house manufacturing capabilities, which allows us to deliver flexible customization options, highly cost-effectiveness and economical, and we stand by our commitment to providing timely and efficient technical support.

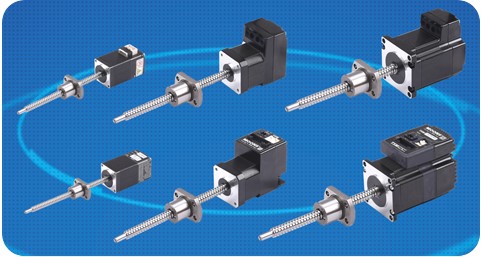

- T Series - Intelligent Linear Stepper Motor The T Series offers split or integrated stepper servo motors options and is available in NEMA 11/17/23 frame sizes. These motors provide closed-loop control over speed, thrust, and position; and feature an innovative design that enhances the rigidity or the motor-screw connection. Advantages of T series include: no coupling required, leading to a more compact structure and reduced overall cost; support for a wide selection of motor models and ball screws; along with multiple bus communication protocols. These features provide a significant competitive advantage in the market.

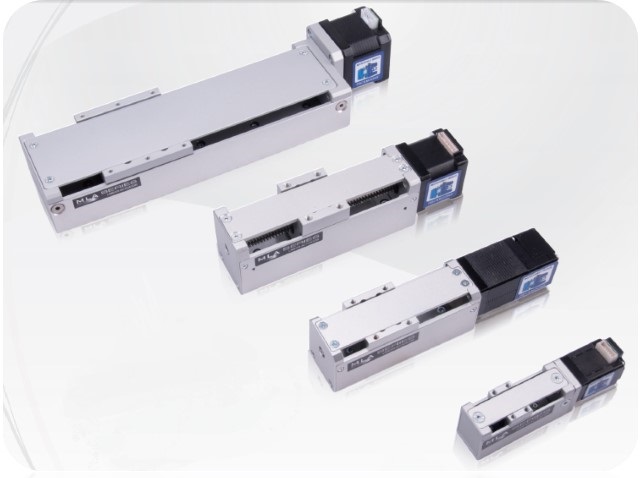

- MLA-Miniature Linear Actuators -Slide Type The MLA-Miniature Linear Actuators-Slide type features include: compact size MLA20/28/35/42/42V; servo control algorithm for full closed-loop control of position, thrust, and speed; high precision (±0.01mm); optional encoders, brakes, sensors, and other options. Advantage: Our specialization in miniature linear actuators highlights our professional expertise. We offer a wide range of configuration, including both open-loop and closed-loop motor options. We also provide customized solutions tailored to meet specific client needs and stand by our commitment to providing timely and efficient technical support.

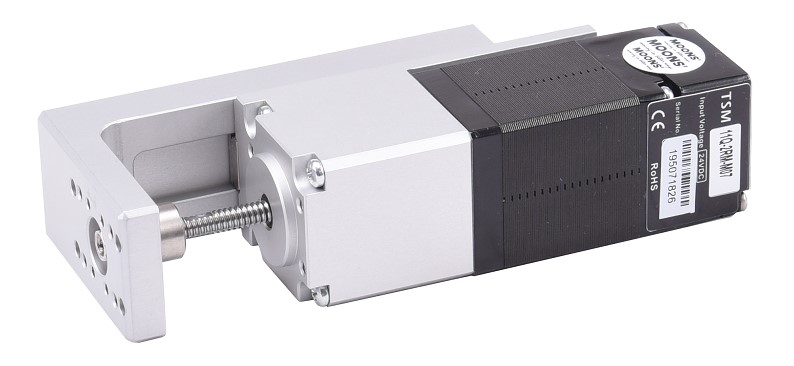

- MEA-Miniature Linear Actuators-Platform Type Features of the platform-type MEA miniature linear actuators include: use of a stepper motor or stepper servo drive; support for side or end-mounting of loads; a through-motor design to minimize body length; and high load capacity with a maximum thrust of 150N. A major advantage is the option for an eintegrated motor with a built-in drive and controller. The actuators also support the flexible selection of various motor models and lead screws, providing greater customization options.

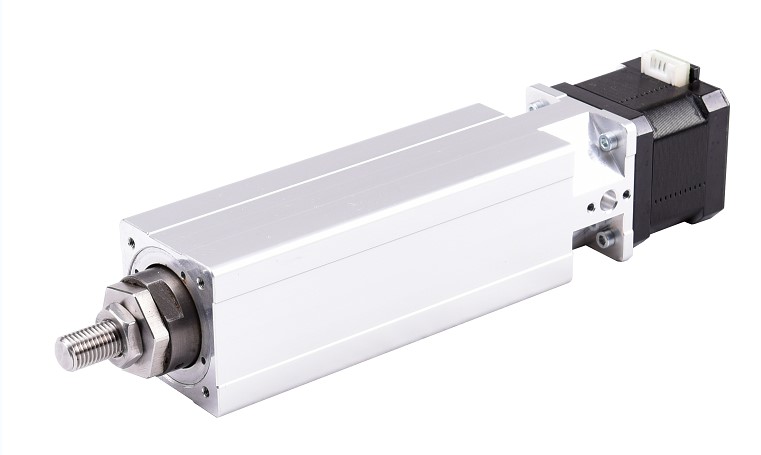

- MLT-Miniature Linear Actuators-Push Rod Type The MLT miniature linear actuators push rod type features include: drive by a stepper motor or stepper servo; compact size and no coupling connection; smooth operation, low noise, and long life; available in compact sizes (MLT28/42); and high load capacity with a maximum thrust of 300N. Advantages include the option of an integrated motor with a built-in drive and controller. Also provides the flexibility to select various motor models and lead screws.

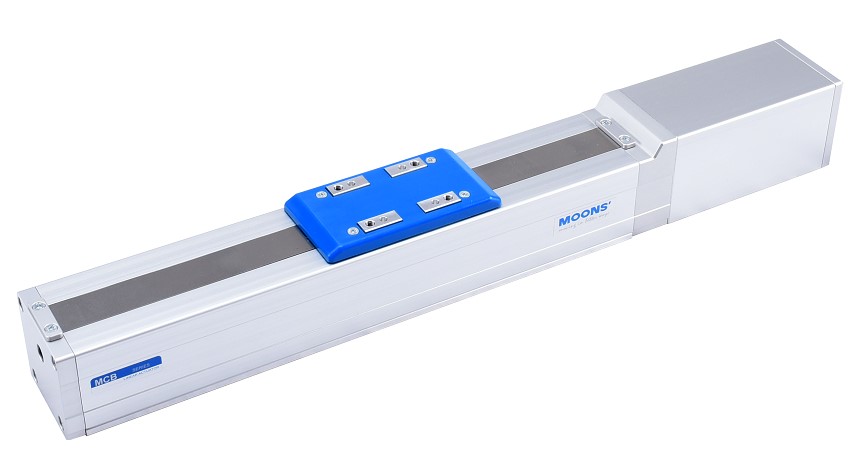

- MCB-Intelligent Electric Cylinder The MCB-Intelligent Electric Cylinder features include: connect effortlessly with a single cable, simplifying setup. It includes intelligent features like automatic homing and soft limit settings; The motor achieves high speed, reaching up to 60 rps; repeatability exceeding ±0.01mm, ensuring high precision; fast response time, capable of 1g acceleration and deceleration; it also boasts a large load capacity, with a maximum horizontal load of 40kg; and comes with an ultra-flexible cable designed for high-frequency reciprocating motion. Advantages include: the cylinder and driver are supplied together; and support for multiple communication methods, including RS-485, CANopen, and EtherCAT.

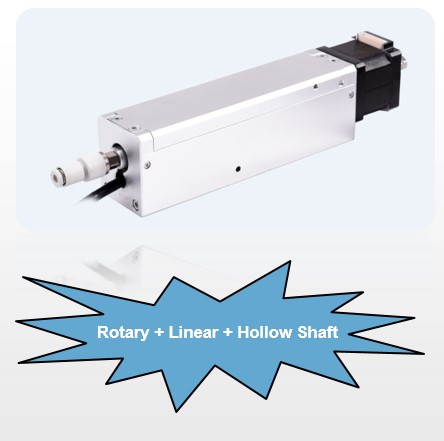

- NLA Series-Multifunctional Electric Cylinder The NLA series multifunctional electric cylinder features include operating speeds up to 100 mm/s and boasts high precision (linear accuracy ±0.02 mm, rotary accuracy ±0.1°), angular position feedback, comes equipped with built-in limit sensors, and supports a variety of communication protocols, including RS-485, CANopen, EtherCAT, and EtherNET/IP. Advantages include an integrated multi-axis solution combining rotary, linear, and hollow shafts, and the flexibility to select from a variety of lead screws, allowing for greater customization.
Ball Screw Linear Actuators Product Application Industry Introduction
- Mobile Phone Production Line Industry: 3C Application: Gripper Application Conditions: Indoor, General Product: TSM11 Application Features: 1. Stepper servo motor, torque controllable, stable and reliable; 2. Utilizes ball screw drive, high precision and high frequency. The electric gripper is driven by a motor to control the opening and closing of its jaws. Both Its position and gripping force can be precisely controlled, allowing for accurate workpiece grasping and positioning. As a versatile end-effector, it is widely used in industrial automation.

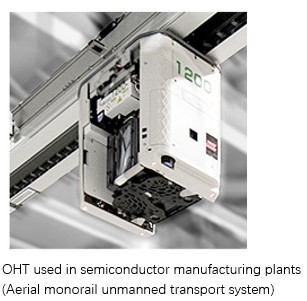

- OHT Equipment Industry: Semiconductor Application: Wafer Transport Application Conditions: Dust-Free Products: TSM17 & MEA28 Application Features: 1. Compact size and high responsiveness; 2. Step servo combined with a ball screw for superior precision; 3. Closed-loop control that enables homing without the need for external sensors. "OHT" stands for Overhead Hoist Transport. OHT equipment is an automated transport device that operates on overhead tracks. It uses a belt-driven hoist mechanism to directly access the loading and unloading ports of storage equipment or process equipment. This technology is now used for transport not only within individual process zones but also between different process areas or even between entire factories.

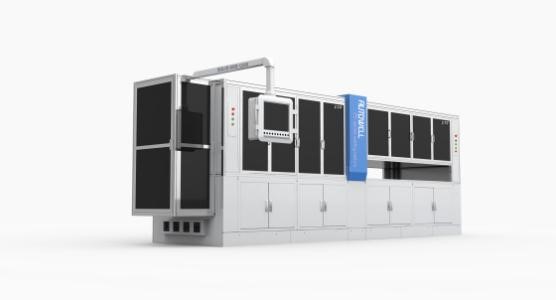

- Automation Equipment Industry: Semiconductor Application: Vertical Wafer Lifter (with Vacuum) Application Conditions: General Indoor Use Product: MLA28 Application Features: 1. Stepper servo motor for high precision; 2. Ball screw drive for high-speed and high-frequency operation; 3. Compact size and bus control capabilities.

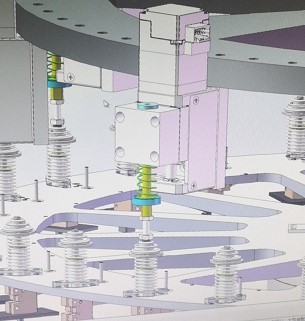

- Automation Equipment Industry: Photovoltaic Application: Adjusting solder bar position Application Conditions: Contaminated Product: AM11 Application Features: 1. High speed, high frequency operation with a short stroke; 2. Closed-loop control, busbar; 3. Protective casing for durability.

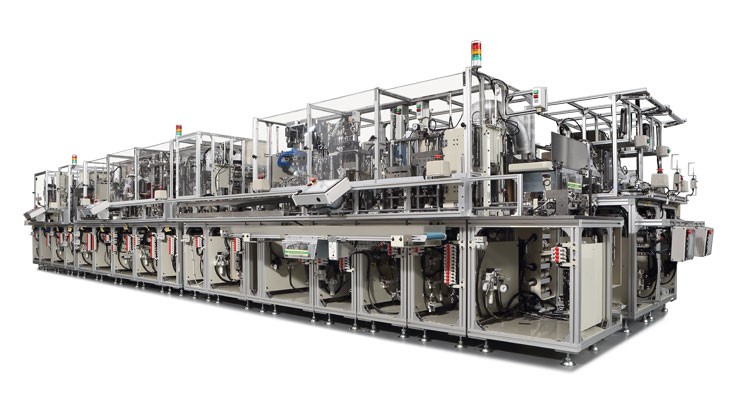

- Fully Automatic Stepper Motor Production Line Industry: Factory Automation Applications: Stator and rotor transfer, bearing crimping, etc. Application Conditions: General indoor use Products: MCB03/06, BE Series Application Features: 1. High speed and high efficiency, replacing manual production lines; 2. High-precision positioning for accurate bearing and shaft alignment; 3. Stepper servo control for precise regulation of the bearing pressing force.

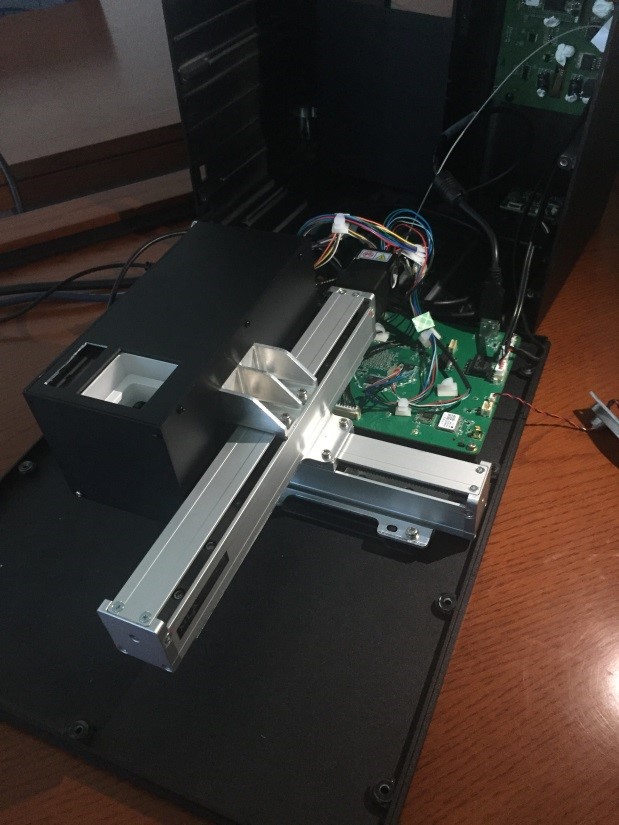

- Anti-Counterfeiting Detection/Scanning Industry: Inspection Equipment Application: X/Y axis mobile inspection lens Application Conditions: General indoor use Product: MLA28 Application Features: Compact size, bus control This compact anti-counterfeiting device uses a vision system and a movable lens to inspect products. The entire unit is designed to be as small and portable as possible.
