MU240HxxxAQ_CP Series

Ideal for higher lumen applications, the MU240HxxxAQ_CP series is a 240W, constant-current, programmable outdoor LED driver that operate from 90~305 VAC input with excellent power factor.
● High Efficiency (Up to 93% typ.@230VAC)
● All-Around Protection: OVP, SCP, OTP
● Certified with an IP67,UL,CE
● Flicker-Free Dimming Across Wide Dimming Range
● 0-10V/PWM/Clock Dimming/Constant Current(ALL Dimming Functions Are Programmable)
● High Surge Immunity: L-N:±4KV,L/N-FG:±6KV
● 5-year Warranty
Brand Name: MOONS'
Price: USD  62.0  EA

Free shipping to North America and Europe for orders of $100 or more

Payment Methods

Certificates:
Buyer Protection:
Free Exchange if the item has quality problems within 1 year. Learn more

Description

MU240HxxxAQ_CP series is a 240W LED AC-DC driver featuring the constant current mode. This series operates from 90~305VAC and offers dimming models with different rated current that could be configured by MOONS' patented programmer--MSSL200.With the fan-less design, the entire series are able to operate for -40℃~+90 ℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. MU240HxxxAQ_CP is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. Especially designed for thousands of Engineers and Experts and renowned for High Quality, High Performance and Unique Features, MOONS' stepper motors and motion control products are widely applied in many innovative applications, including: 3D Printers, extruders, stage lighting, analytical and medical instruments, laser cutters, engravers, image scanners, textile equipment, embroidery machine, precision telescope positioning systems, packaging machinery, CNC machines and robotics etc. We always work with you together to get your creative ideas or innovative products to go to market as fast as possible. MOONS' - Experts' Choice!

Waterproof & High Surge
Immunity

Excellent characteristics of both Waterproof & High surge level, which could expand your application field with reliable performance for roadway lighting, kitchen lighting, high mast lighting and so on.

Waterproof

MOONS' general LED drivers are suitable for numerous indoor and outdoor applications. For outdoor lighting or indoor lighting, it is important to strengthen the property of waterproof. The design of metal housing and IP67 ingress protection level allows this series to fit various applications.

High Surge Immunity

MOONS' have developed a range of LED drivers subject to IEC 61000-4-5, that is a test for electrical and electronic equipment with regard to unidirectional surges caused by over-voltages from switching and lightning transients. With 10KV surge level, the MOONS' LED drivers are reliable to protect your lamps against surges.

As a professional LED driver developer, our teams take care of these issues for our customers.

Dimming Function Introduction

MU240HxxxAQ_CP is a programmable driver, all driver's parameters can be modified through MSSL200(The Programmer of CLKS or CP Series driver ),Such as output current value, start time, fade up time, selecting dimming mode (include modifying parameters in corresponding mode) and so on, which can meet other special and customized requirement, such as 240W/1000mA、240W/2000mA、240W/3000mA and so on. What’s more, the driver is compatible with charged or uncharged programming mode.

1. Accessory-MSSL200

MSSL200 is the programmer of CLKS or CP Series driver.The Programmable Driver Configurator Software and Configurator are compatible with MOONS’ CLKS and CP drivers. They can be used to set the configuration parameters of MOONS’ CLKS and CP drivers.

2. Dimming Function-Constant Power

Output Current: 65%~100% ×rated output current
This series driver could achieve rated output power while
adjusting output current range at 65%-100% rated output current.

Note:output current setting range with constant power 65%~100% Iomax

3. Dimming Function-PWM/1-10V Dimming

Dimming Range: 6.5%~100% ×rated output current The CP series are perfectly compatible with PWM/1-10V signal dimmer. Enter the "PWM dimming mode" or "1-10V dimming mode", you can modify the minimum and maximum output parameters and corresponding voltage of dimming signal voltage.

4. Dimming Function-Smart Midnight ClockDIM

Smart Midnight ClockDIM has self-study Clock Dimming function. It can set 5 dimming level in the dimming plan through software. It also can adjust the starting time and ending time in the dimming plan everyday automatically according to the geographic position and average operating time. In other words, the CP series driver can adapt to the changeable starting and ending time due to the seasonal alteration by self-study function.

5. Dimming Function-Fixed ClockDIM

Users can set the dimming plan by separating 24hours into 5 sections matching corresponding output current. Owing to the time is fixed, it has no self-study function. For instance: Assuming the dimming plan like below table shows. If the driver is charged at 15:00pm, the driver will perform the dimming plan following the form shows.

Model list

Part Number Output Voltage Range Output Current Range Output Power Efficiency (Typ)
230VAC
MU240H080AQ_CP 181-453VDC 53-800mA 240W 93%
MU240H105AQ_CP 137-343VDC 70-1050mA 240W 93%
MU240H150AQ_CP 96-240VDC 100-1500mA 240W 93%
MU240H210AQ_CP 68-171VDC 140-2100mA 240W 93%
MU240H300AQ_CP 48-120VDC 200-3000mA 240W 93%
MU240H420AQ_CP 34-86VDC 280-4200mA 240W 93%
MU240H600AQ_CP 24-60VDC 400-6000mA 240W 93%
MU240H800AQ_CP 16-40VDC 600-8000mA 240W 93%
MU240H1000AQ_CP 12-30VDC 800-10000mA 240W 93%
MU240H1200AQ_CP 12-24VDC 1000-12000mA 240W 93%

Specification

Input Voltage Range 90∼ 305Vac
Frequency 47∼ 63Hz
Power Factor PF>0.98/120VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
Efficiency 93%
THD THD < 20% when output loading≥ 80% at 120VAC/230VAC input and output loading≥ 80% at 277VAC input
Inrush Current COLD START 65A(twidth=680μs measured at 50% Ipeak) at 230VAC
Output Current Range when dimming 6.5%∼ 100% ×Io_max
Line Regulation ± 3%
Load Regulation ± 3%
Ripple Current Percentage[(PK-AV)/AV] 10% max (peak to average value) at full load
Setup, Rise Time 0.5s (typ.), measured at 230Vac input
Operating Temperature -40~+50°C (Refer to 'Derating Curve' in series datasheet)
Maximum Case Temperature 90°C
Humidity 20~95%RH, non-condensing
Surge Level L-N:± 4KV, L/N-PE:± 6KV
Reference Dimension(L×W×H) 251×67.5×40 mm
Weight 1.2kg
Safety Standard UL8750, UL1012, CSA C22.2 NO.107.1, EN61347-1, EN61347-2-13
Lifetime ≥ 50,000hrs@75°C Tc(Refer to'Life Time VS. Tcase (Ref.)' in series datasheet)

Model Encoding

Compare Item Price
(USD)
Buy Now
MU240H600AQ_CP $62.00
MU240H1200AQ_CP N/A
MU240H800AQ_CP $62.00

tupian

tupian

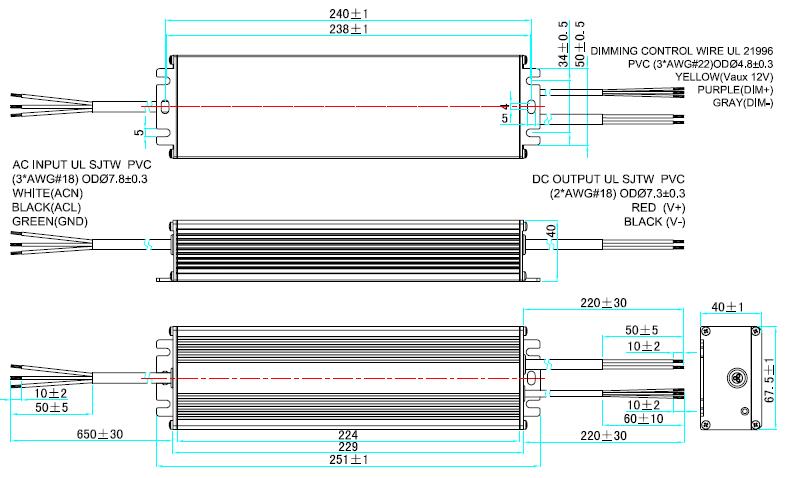

2D Drawings
Title Type Size(KB) Date View times Download
MU240HxxxAQ_CP 2D Drawing.pdf PDF 126 2017-09-06 4

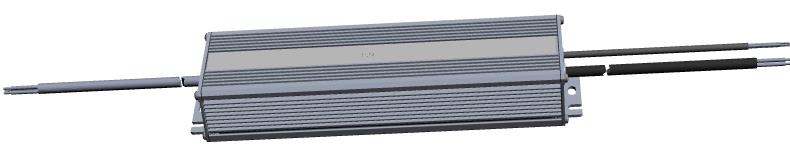

3D Model
